Socket 14 poles with spring-loaded terminals
Description
14-pole relay socket with spring-loaded terminals for commercially available industrial relays. All metal parts are arranged under cover to protect them against contact. The relay socket matches to industrial relay MC274. Electronic modules, such as LED or RC modules, can be plugged in the socket optionally.

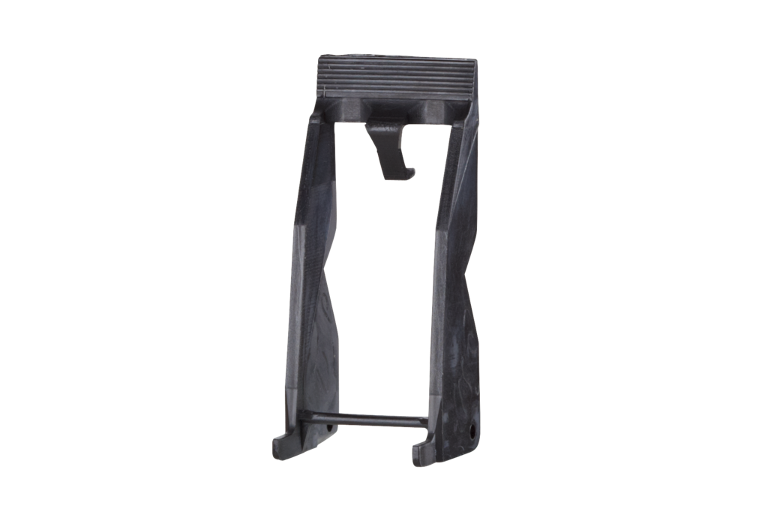

- Optional bracket
- integrated quick fastening for DIN rail
- Terminal designation to EN 50022
- separate input and output
Technical Data
General Data
10 A
300 V AC
2500 V
VDE 0110b C250
VBG 4
2 x 0.2 - 1.5 mm2
2 x 0.2 - 1.5 mm2
7 mm
at least 35 N
31 x x 42.65 mm
88 g
0 °C to +55 °C
-20 °C to +70 °C
IP20
Check US distributor inventory
Accessories
Accessory of
Part number
110185
4250184120483
