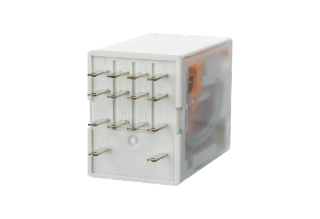

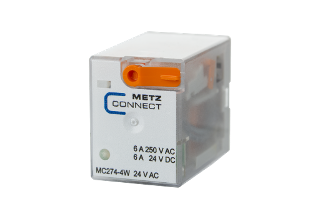

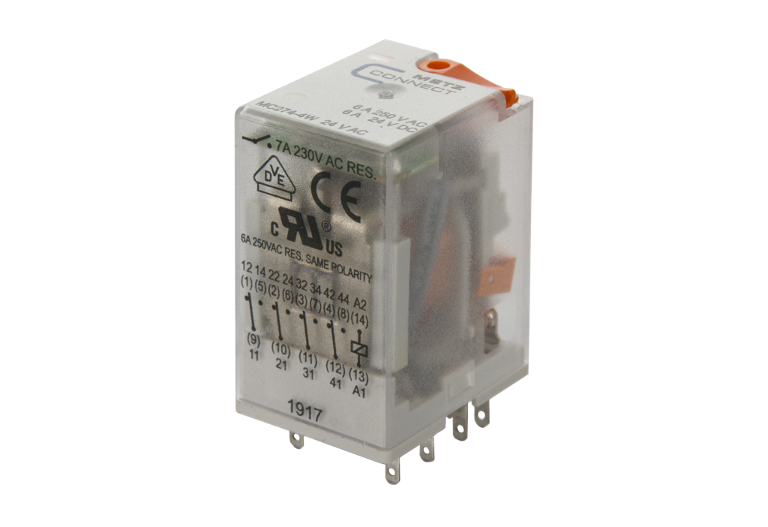

MC274-4W 24 V AC

916608

Description

Compact, pluggable relay for industrial use.

Socket pins as soldering lugs

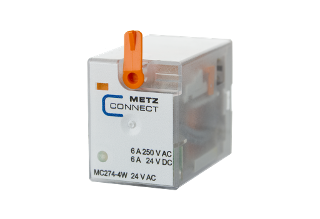

Mechanical switch position display
With manual test button
Cadmium-free contacts
LED-Indicator

Technical Data

General Data

Operating voltage AC

24 V ACor 230 V AC

Operating voltage DC

24 V DC

Current consumption 24 V AC

65 mA

Current consumption 24 V DC

41 mA

Current consumption 230 V AC

8 mA

Continuous current

7 A

Output / contact

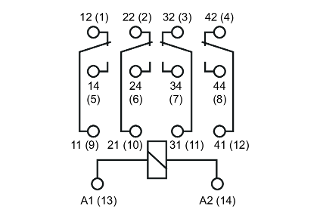

4 changeover contacts (4PDT)

Output / contact material

Silver alloy

Output / switching capacity

1500 VA

Mechanical endurance

1 x 10⁷ switching cycles

Display

LED and mechanical

Dimensions (W x H x D)

21 x 35.5 x 27.4 mm

Weight

35 g

Operating temperature range

-40 °C to +55 °C

Storage temperature range

-40 °C to +85 °C

Check US distributor inventory

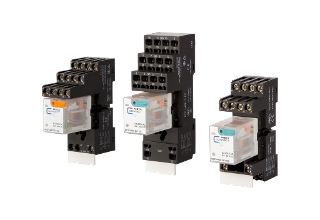

Accessories

916610

Socket 14 poles

916611

Socket 14 poles for electronic modules

916612

Socket 14 poles with spring-loaded terminals

Part number

Part number:

110017101407

EAN:

4251122194887
