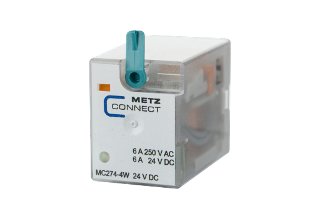

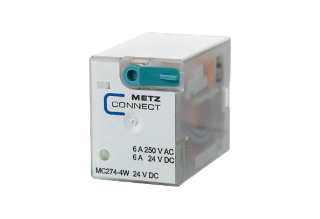

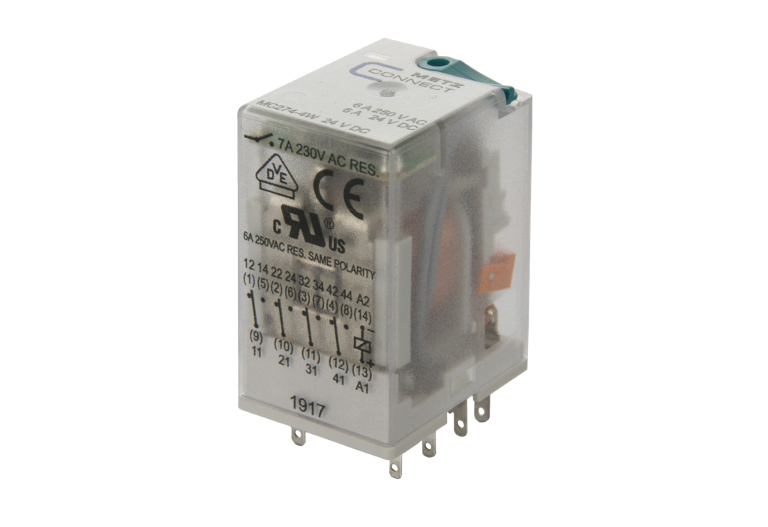

MC274-4W 24 V DC

916609

Description

Compact, pluggable relay for industrial use.

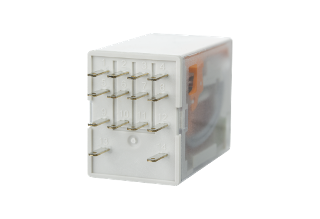

Socket pins as soldering lugs
mechanical switch position display
With manual test button
cadmium-free contacts
LED-Indicator
Free-wheeling diode (only variant DC)

Technical Data

General Data

Operating voltage AC

24 V ACor 230 V AC

Operating voltage DC

24 V DC

Current consumption 24 V AC

65 mA

Current consumption 24 V DC

41 mA

Current consumption 230 V AC

8 mA

Continuous current

7 A

Output / contact

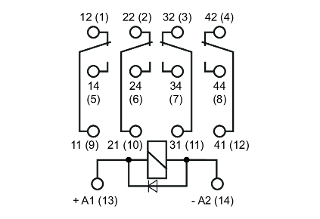

4 changeover contacts (4PDT)

Output / contact material

Silver alloy

Output / switching capacity

1500 VA

Mechanical endurance

1 x 10⁷ switching cycles

Display

LED and mechanical

Dimensions (W x H x D)

21 x 35.5 x 27.4 mm

Weight

35 g

Operating temperature range

-40 °C to +55 °C

Storage temperature range

-40 °C to +85 °C

Check US distributor inventory

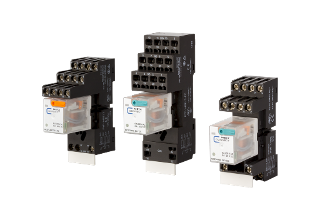

Accessories

916610

Socket 14 poles

916611

Socket 14 poles for electronic modules

916612

Socket 14 poles with spring-loaded terminals

Part number

Part number:

110017251407

EAN:

4251122194832

Downloads

Reference list (Reference list - Industrial relays METZ CONNECT)
Product information
Data sheet
ePLAN data (ePLAN Daten 110017251407) - Registration required -
ePLAN data (ePLAN Daten 110185+110017251407) - Registration required -
ePLAN data (ePLAN Daten 110178+110017251407) - Registration required -
ePLAN data (ePLAN Daten 110175+110017251407) - Registration required -

Find contact person

Inquiry

Show part in ePLAN data portal

Additional Information

Intelligent system components for control cabinet applications
