OpDAT VGAD

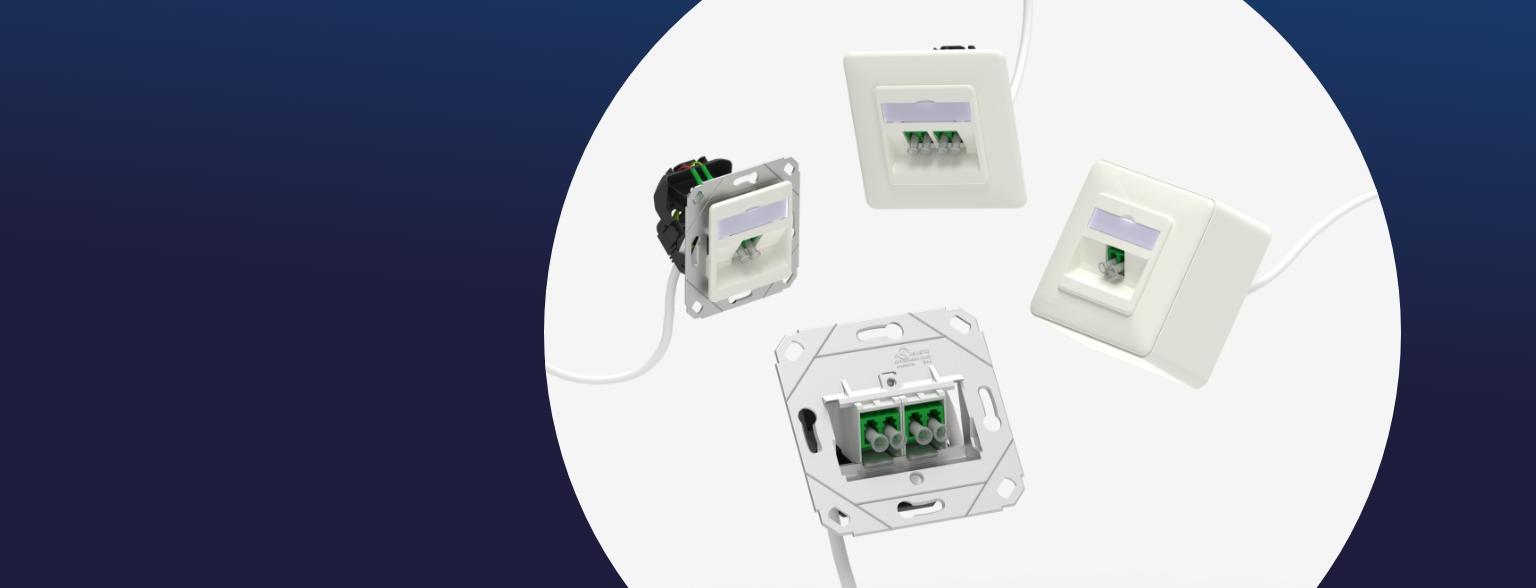

The design-compatible prefab fiber optic (FO) wall outlet

The OpDAT VGAD is the design-compatible solution for everyone who wants to integrate their fiber optic infrastructure professionally and aesthetically into a building. As a prefab fiber optic (FO) wall outlet, it seamlessly fits into the switch ranges of well-known manufacturers, combining state-ofthe-art fiber optic installation technology with contemporary design. Whether in residential areas, offices, industry, or on campus: the OpDAT VGAD is effective everywhere.

Characteristics

Ready to install and immediately ready for use

The wall outlet is delivered ready for installation and immediate use: the singlemode OS2 indoor cable is pre-connected, the LC duplex adapters – available in APC or UPC - are pre-installed, and the cable is securely strain-relieved via the Kevlar.

Flexible configuration for any installation scenario

With 2 or 4 fibers and cable lengths of up to 150 m, the OpDAT VGAD covers virtually every installation scenario. Optional pulling aids additionally facilitate the insertion of the cable into the conduit and ensure fast, clean installation.

Compact and versatile

Thanks to its compact dimensions and a 45° angled plug direction, the OpDAT VGAD is highly versatile: it fits into flushmounted, hollow-wall, and cable duct boxes with a minimum installation depth of only 45 mm.

Applications of the VGAD wall outlet

FITH/Residential buildings
Design integration into existing switch installations
Office cabling
Uniform appearance in the office environment
Campus cabling
High-quality fiber optic connections in companies, clinics, and educational institutions
Industrial cabling
Fiber optic connectivity in production halls, machine rooms, and industrial environments

Variant overview

Maximum flexibility: Numerous variants & integration into virtually any installation scenario.

Available number of fibers

2-fiber (1× LC-D adapter)
4-fiber (2× LC-D adapters)

Color Selection

Pure white (RAL 9010)
Traffic white (RAL 9016)

Cable | Each as singlemode OS2 (G.657.A2)

Mini breakout cable compact (ø 4.5 mm / 900 μm wires)
FITH cable (ø 2.3 mm / 250 μm fibers)

Four variants ensure the right installation

UP0 for design switch ranges, UP for classic flush mounting, UPk for installation in cable ducts, and AP for surface mounting (surface mount
frame with min. 45 mm installation depth must be purchased separately from a suitable third-party supplier).

UP = Flush-mounted

UPk = Flush-mounted cable duct

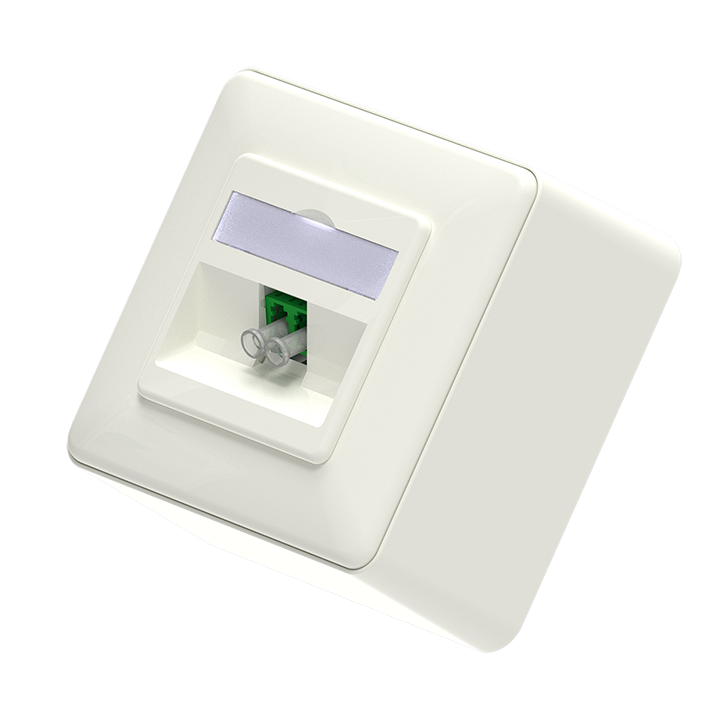

AP = Surface mounted

UP0 = Flush-mounted for designer
switch ranges

Connection options

Packaging

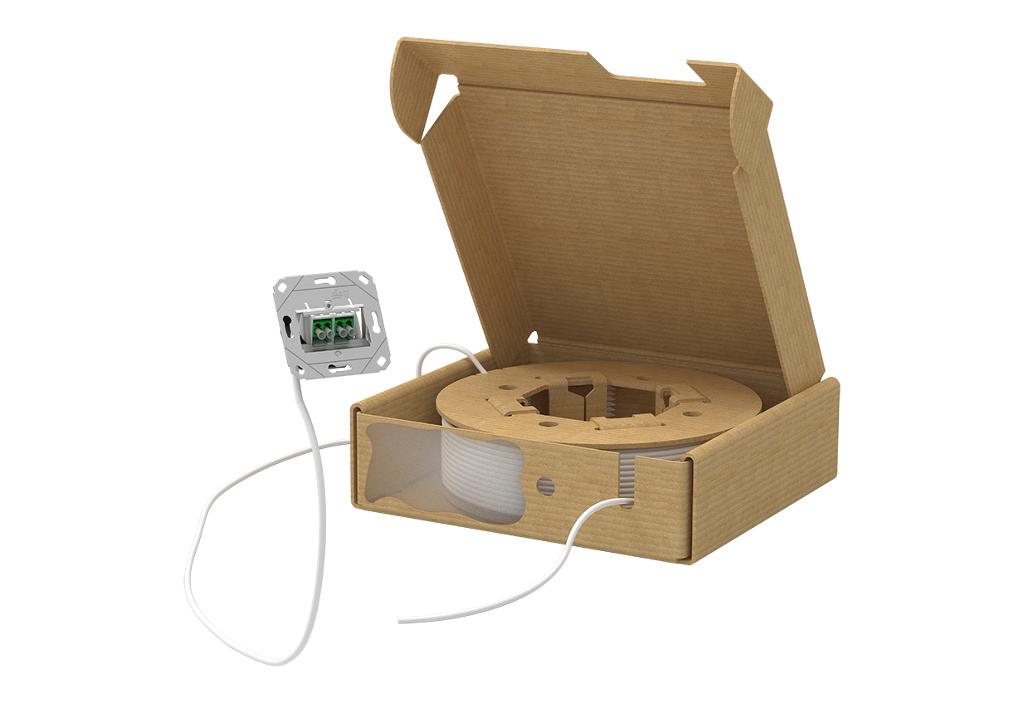

Standard carton

The standard packaging (375 × 375 × 110 mm) is ideally suited for longer cable runs of over 60 m up to 150 m. For lengths under 10 m, all cables are delivered as a cable loop without a drum (without pulling aid in poly bag, with pulling aid in carton).

Variant Splice:

Variant Plug-in:
MBO-Compact cable over 10 m up to 150 m (with pulling aid)

Compact carton

The compact packaging (280 × 295 × 85 mm) is the space-saving solution for shorter runs up to 60 m – easy to transport, simple to store, and particularly practical as it allows direct unrolling without opening the carton. For lengths under 10 m, all cables are delivered as a cable loop without a drum (without pulling aid in poly bag, with pulling aid in carton).

Variant Splice:
FITH cable over 10 m – 60 m,
MBO-Compact cable over 10 m – 60 m
Variant Plug-in:
MBO-Compact cable over 10 m up to 60 m
(with pulling aid Compact or bubble wrap)

Flexible even without pre-assembly

Proven solution

Those who prefer to assemble their fiber optic cable themselves will also find the right, already proven solution in the METZ CONNECT portfolio: The OpDAT fiber optic (FO) wall outlets are available as classic flush-mount (UP), duct-mount (UPk) and surface mount (AP) variants – each equipped with an LC-Duplex APC adapter and compatible with the design center plates and cover plates of common switch programs.
