SPE PC board jack, angled

961765

Description

SPE PC board jack, angled
Modul design: IEC 63171-6
THR solderable
Side entry
Protection category IP20

Technical Data

General Data

Dimension [Length] (mm):

14.9 mm

Dimension [Width] (mm):

9.2 mm

Dimension [Height] (mm]:

8.3 mm

Dimension [Length] (inch):

0.587 in.

Dimension [Width] (inch):

0.362 in.

Dimension [Height] (inch):

0.327 in.

Solderability:

Acc. to IPC/JEDEC J-STD-020D-MSL 1

Jack:

angled

Coding:

IEC 63171-6

For wall thickness (mm) [max.]:

3 mm

For wall thickness (inch) [max.]:

0.118 in.

Electrical characteristics

Rated voltage:

60 V DC

Current carrying capacity at 40 °C:

4 A

Transmission characteristics

PoDL:

IEEE 802.3bu (remote power via PoDL = Power over Data Line)

Transmission rate up to 10 Mbit/s:

IEEE 802.3cg (10BASE-T1)

Transmission rate up to 100 Mbit/s:

IEEE 802.3bw (100BASE-T1)

Transmission rate up to 1000 Mbit/s:

IEEE 802.3bp (1000BASE-T1)

Mechanical data

Material - Housing:

stainless steel

Material - Contact:

Copper alloy

Contact surface:

gold

Shield material:

stainless steel

Material - Insulating body:

PA GF

RoHS:

compliant

Life - Number of mating cycles:

>= 1000

Protection category:

IP 20

Climatic Data

Temperature - Operating °C [min.]:

-40 °C

Temperature - Operating °C [max.]:

85 °C

Temperature - Operating °F [min.]:

-40 °F

Temperature - Operating °F [max.]:

185 °F

Check US distributor inventory

Counterpart from

961832

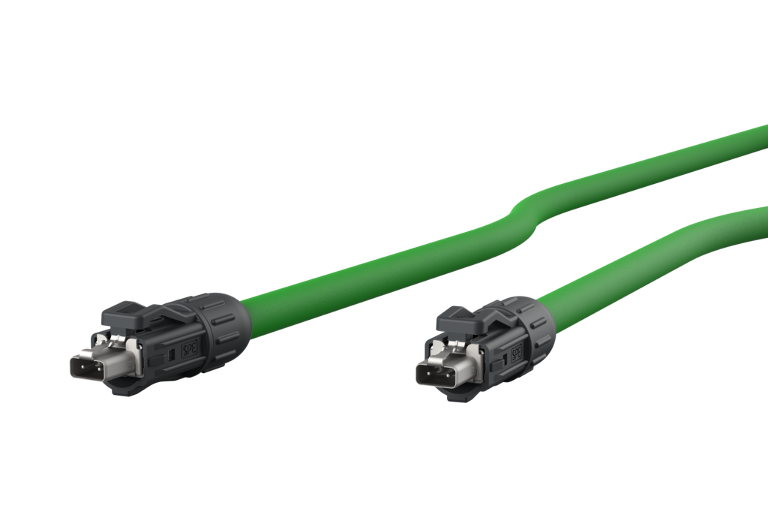

Patch cord SPE AWG 26/7 PUR 0.3 m

961832

Patch cord SPE AWG 26/7 PUR 0.5 m

961832

Patch cord SPE AWG 26/7 PUR 1.0 m

961832

Patch cord SPE AWG 26/7 PUR 1.5 m

961832

Patch cord SPE AWG 26/7 PUR 2.0 m

961832

Patch cord SPE AWG 26/7 PUR 3.0 m

961832

Patch cord SPE AWG 26/7 PUR 5.0 m

961832

Patch cord SPE AWG 26/7 PUR 7.0 m

961832

Patch cord SPE AWG 26/7 PUR 10.0 m

961832

Patch cord SPE AWG 26/7 PUR 15.0 m

961832

Patch cord SPE AWG 26/7 PUR 20.0 m

Part number

Part number:

EJT61BH010-00G7

EAN:

4251394666372
