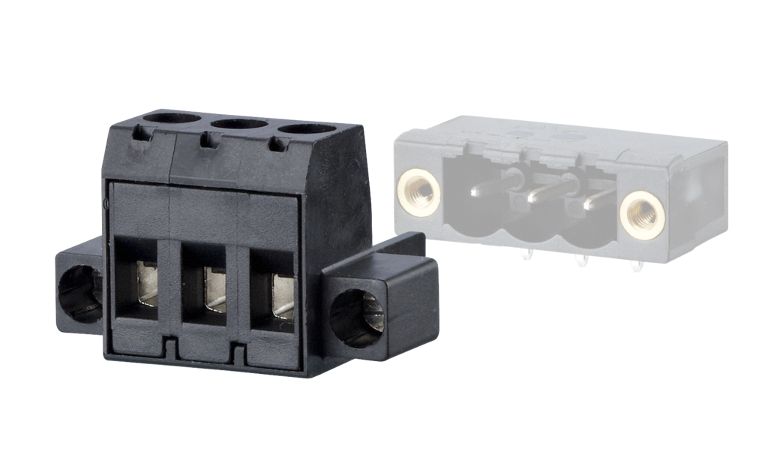

PT115xxHBBF Type 336
Description
- pin header, solderable
- centerline 5.00 mm, direction of connection 90°
- closed ends
- color black, mounting flange
- codeable
Technical Data
General Data
3.45 mm
2
24
CTI 600
4 mm
IP00
Material
PA66
V0
CuFe
Ni + Ag
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
