PT119xxVBBN Type 320

779435

Description

pin header, solderable
centerline 10.00 mm, direction of connection vertical 0°
closed ends
color black

logo_culus

logo_sev

Technical Data

General Data

Solder pin length:

3.25 mm

min. number of poles:

2

max. number of poles:

12

Insulating material class:

CTI 600

clearance/creepage dist.:

9 mm

Protection category:

IP00

Material

insulating material:

PA66

flammability class:

V0

contact pin material:

CuFe

contact pin surface:

Ni + Ag

Glow-Wire Flammability GWFI:

960 °C acc. to IEC 60695-2-12

Glow-Wire Flammability GWIT:

775 °C acc. to IEC 60695-2-13

Climatic Data

upper limit temperature:

105 °C

lower limit temperature:

-40 °C

Check US distributor inventory

Accessories

779273

Coding star white

Counterpart from

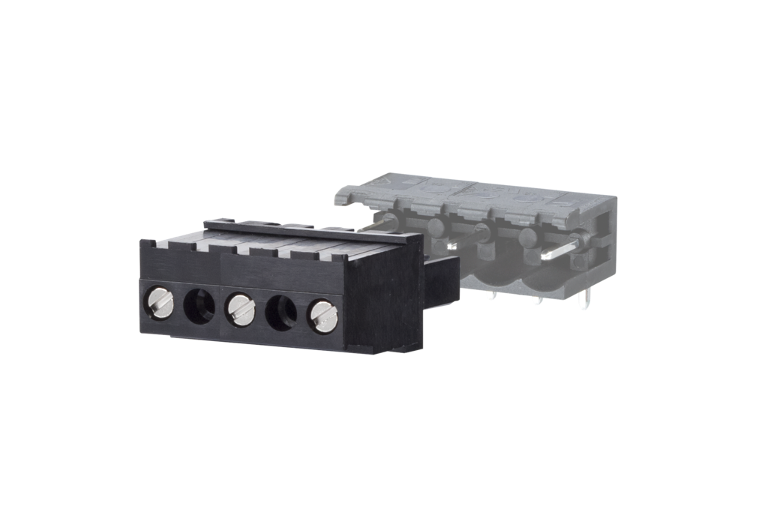

859732

RP039xxHBLC Type 313

859733

RP019xxVBLC Type 349

908690

SP049xxVBNC ASP049

Part number

Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.

313202

02 03

Standard pole sizes from stock

Pole sizes only available on demand

Downloads

Data sheet
3D-Data (3D_31320203) - Registration required -
3D-Data (3D_31320202) - Registration required -

Buy article from our partners

Beyond Components

Digi-Key Electronics

Distrelec Deutschland GmbH

element 14, an Avent Community

Farnell, an Avnet Company

Future Electronics

Heilind Asia Pacific

Heilind Electronics America

Heilind Electronics Europe

INELTRO ELECTRONICS GmbH

Master Electronics

Newark, an Avnet Company

reichelt elektronik GmbH & Co. KG

TLC Electronics

Find contact person

Inquiry

Sample order

Standard poles sizes

Additional Information

Product family Pin headers and female connectors
