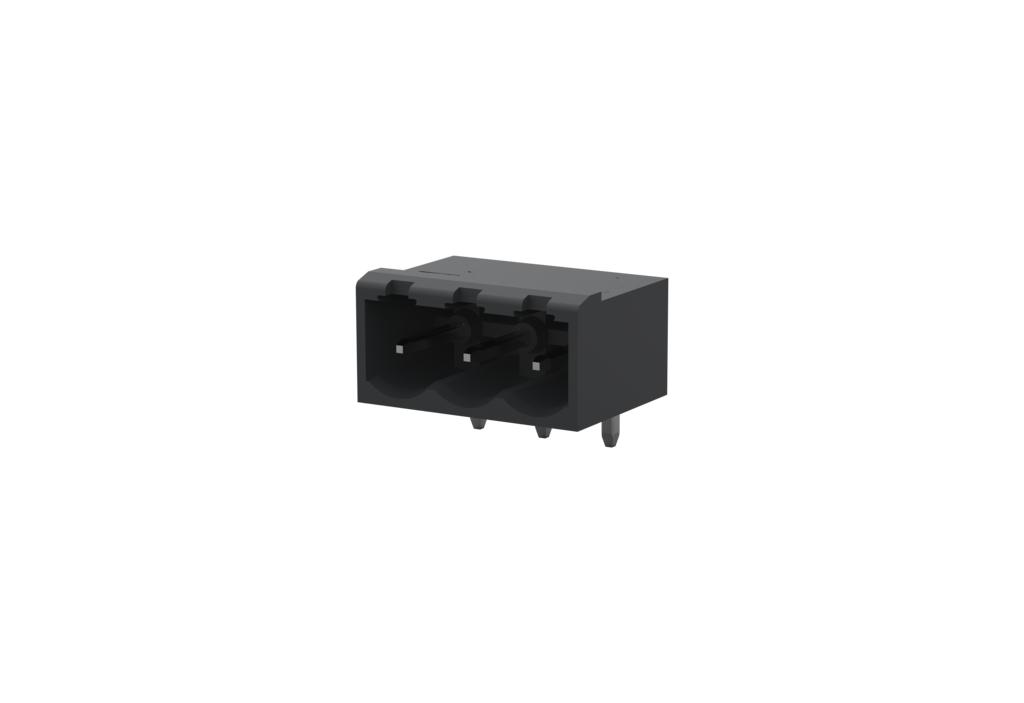

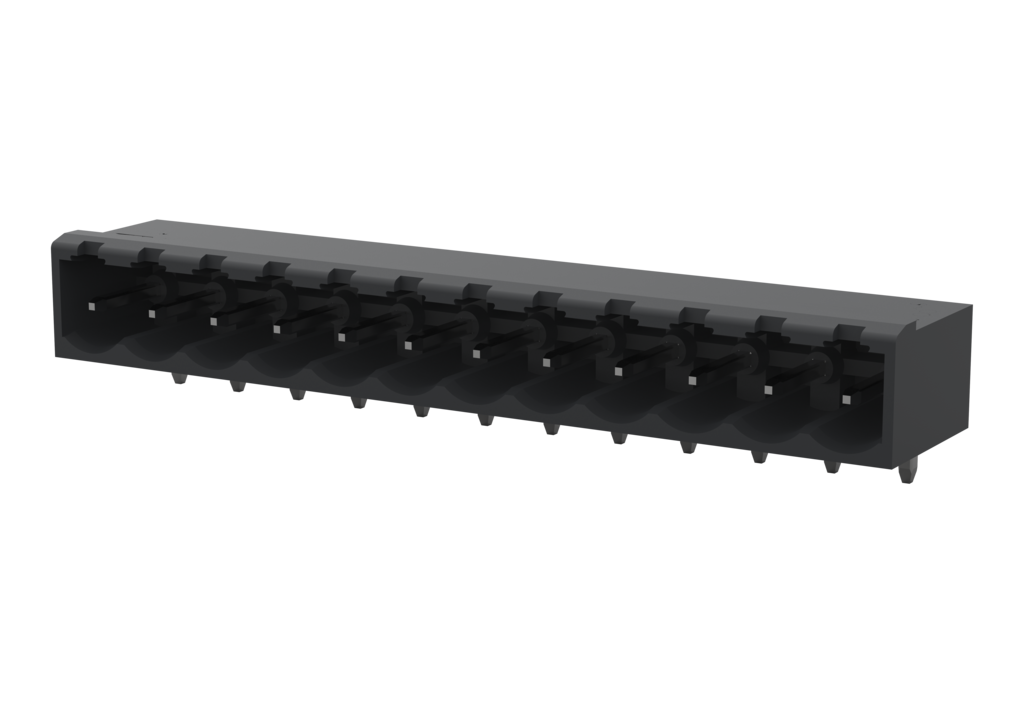

PT116xxHBBN (Type 230)

779509
872255
871615
Description
  • pin header, solderable
  • centerline 5.08 mm, direction of connection 90°
  • closed ends
  • color black
  • codeable
logo_culus logo_sev
Technical Data
General Data
3.45 mm
CTI 600
4.08 mm
IP00
Material
PA66
V0
CuFe
Ni + Ag
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Accessories
779273
Coding star white
Counterpart from
962488
RP036xxHBLC Type 213
894605
RP036xxHBLD Type 214
962489
RP016xxVBLC Type 249
985239
RP01602VBLC Type 249
985241
RP01603VBLC Type 249
985243
RP01604VBLC Type 249
985245
RP01605VBLC Type 249
985247
RP01606VBLC Type 249
985249
RP01607VBLC Type 249
985251
RP01608VBLC Type 249
985253
RP01609VBLC Type 249
985255
RP01610VBLC Type 249
985257
RP01612VBLC Type 249
985262
RP01619VBLC Type 249
980272
SP046xxVBNC ASP046
980239
SP04602VBNC ASP046
980241
SP04603VBNC ASP046
980243
SP04604VBNC ASP046
980245
SP04605VBNC ASP046
980247
SP04606VBNC ASP046
980249
SP04607VBNC ASP046
980251
SP04608VBNC ASP046
980253
SP04609VBNC ASP046
980255
SP04610VBNC ASP046
980257
SP04611VBNC ASP046
980259
SP04612VBNC ASP046
Overview of variants
Description
Pole size
Availability
Part number
Accessories

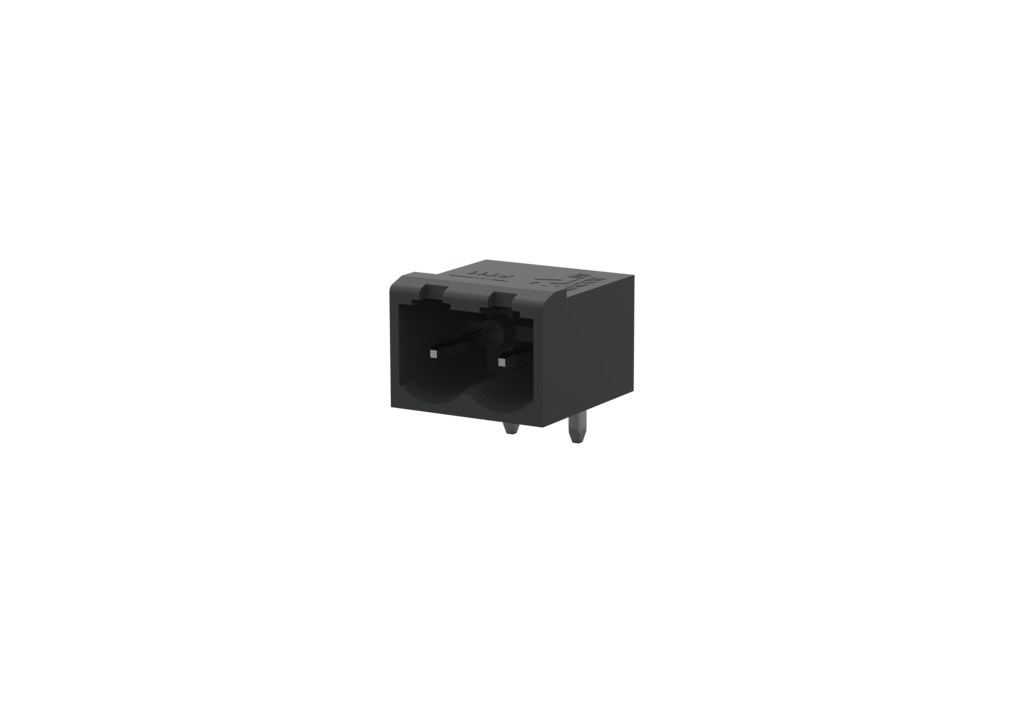

PT11602HBBN (Type 230)
2
Standard pole size
31230102
PT11603HBBN (Type 230)
3
Standard pole size
31230103

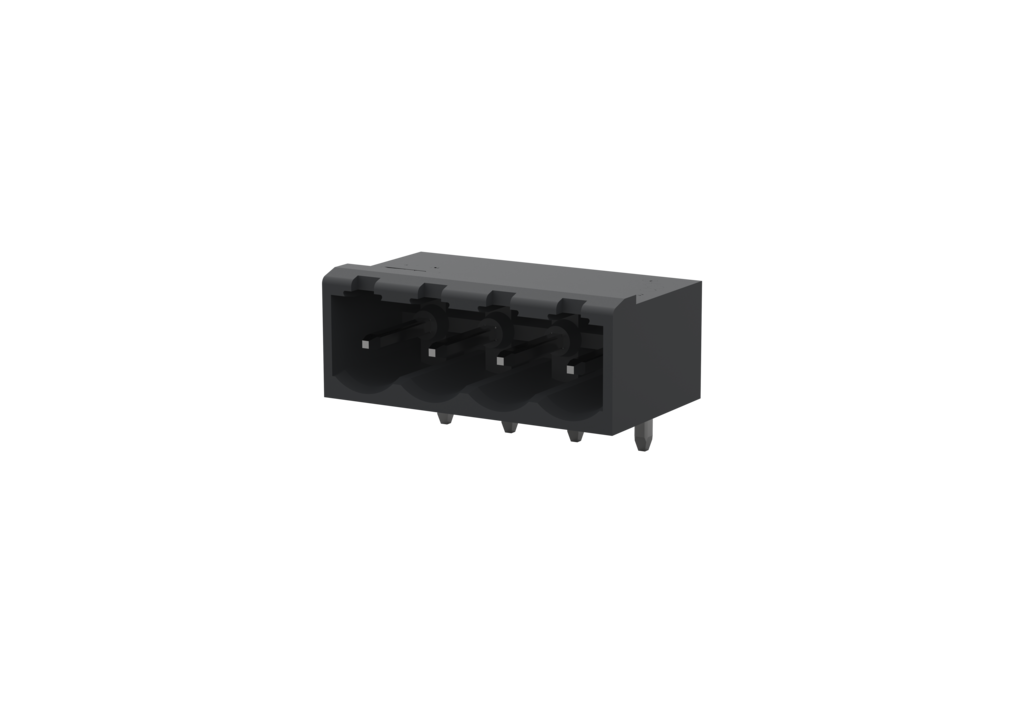

PT11604HBBN (Type 230)
4
Standard pole size
31230104

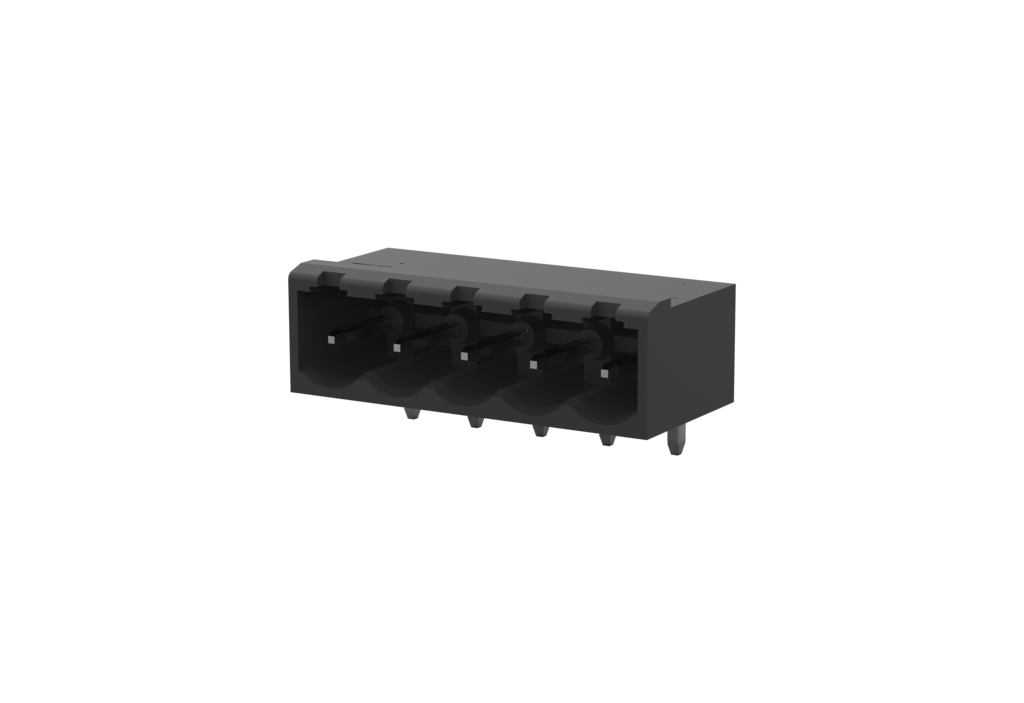

PT11605HBBN (Type 230)
5
Pole size available on demand
31230105

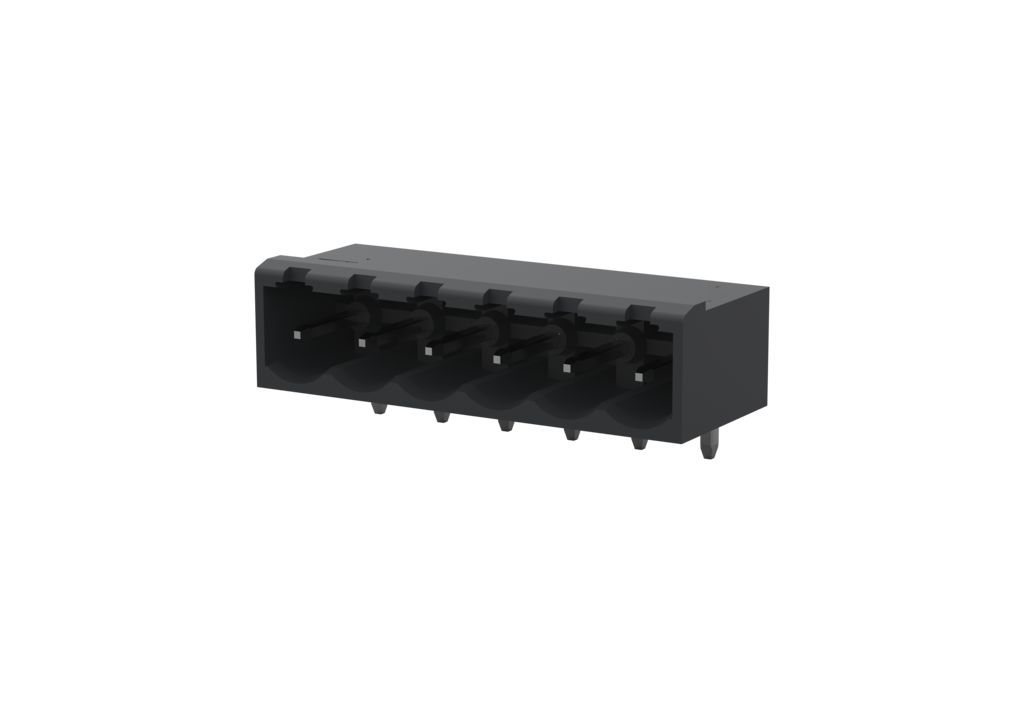

PT11606HBBN (Type 230)
6
Standard pole size
31230106

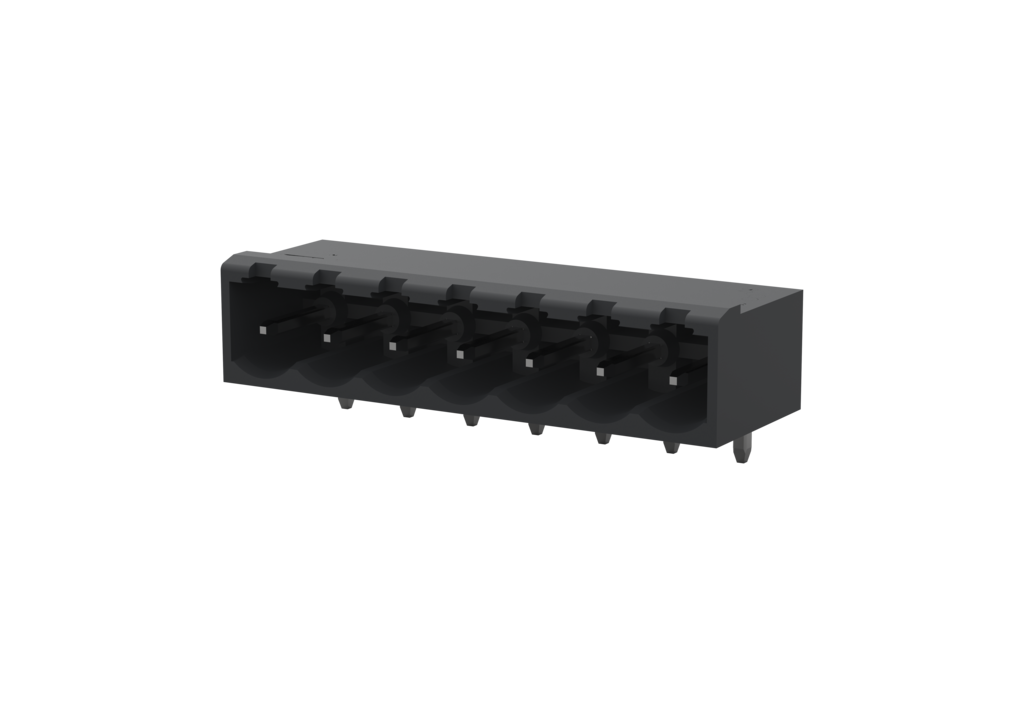

PT11607HBBN (Type 230)
7
Pole size available on demand
31230107

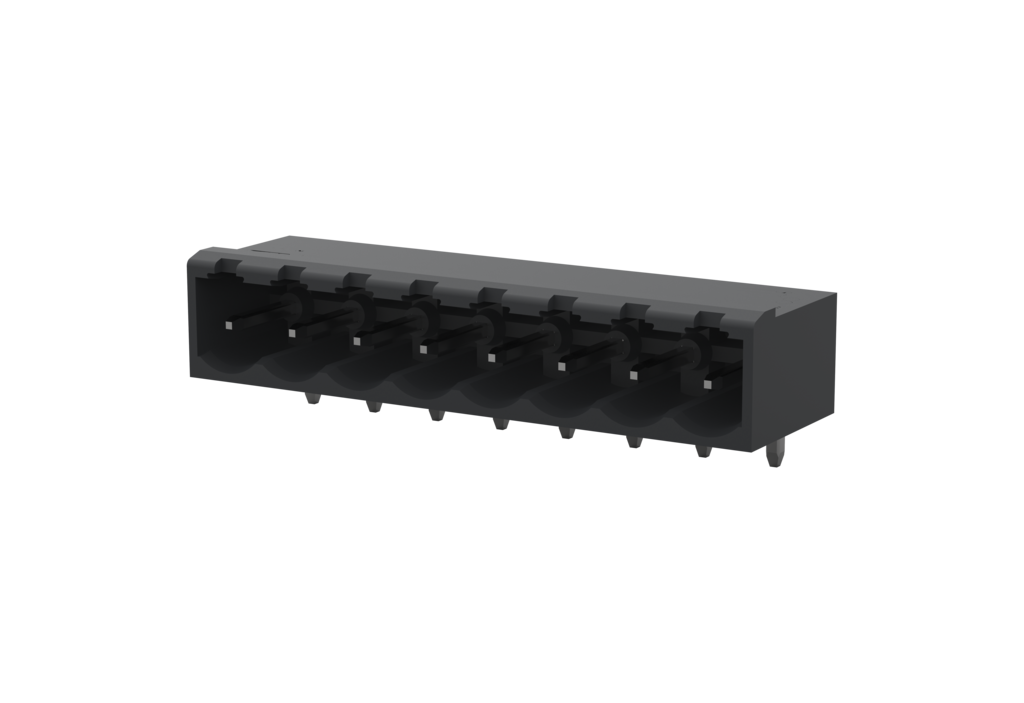

PT11608HBBN (Type 230)
8
Standard pole size
31230108

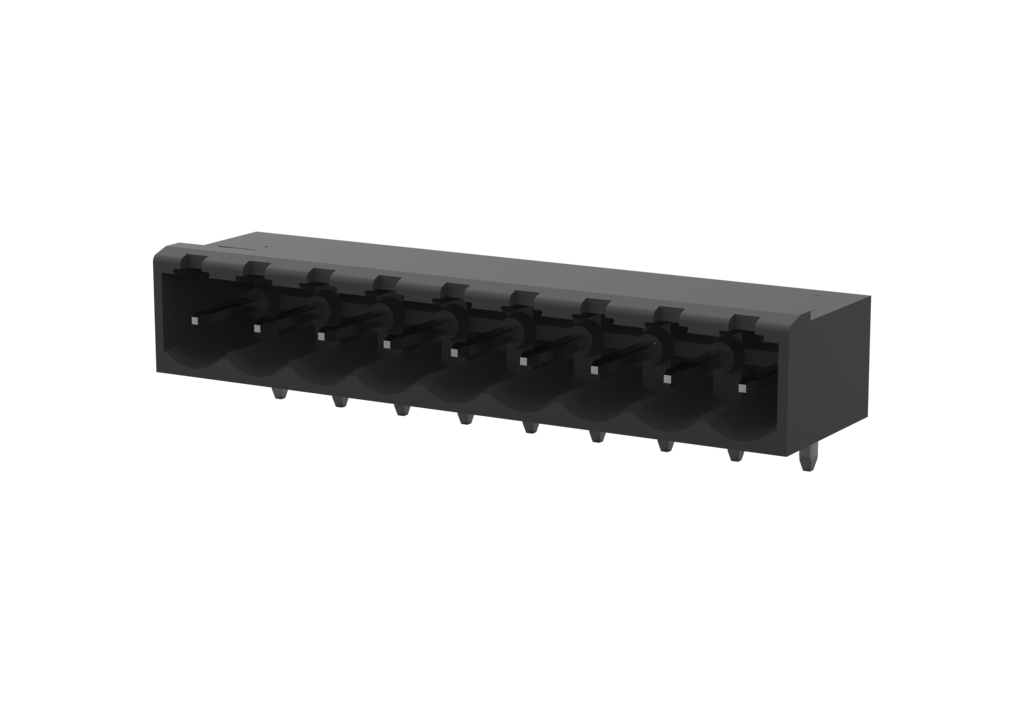

PT11609HBBN (Type 230)
9
Pole size available on demand
31230109

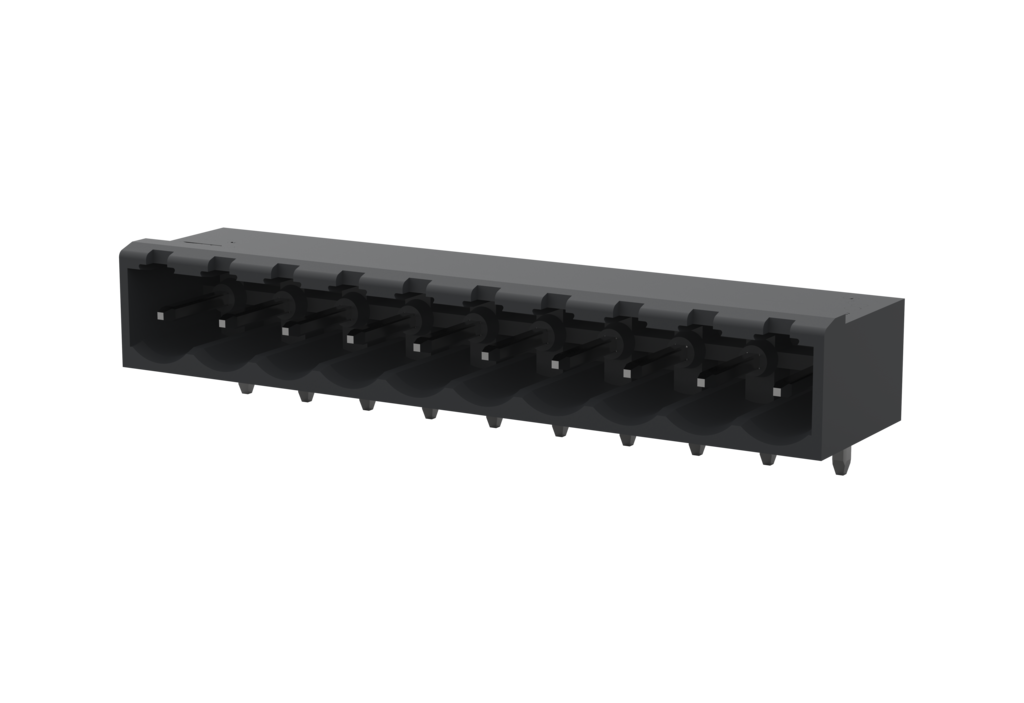

PT11610HBBN (Type 230)
10
Standard pole size
31230110
PT11612HBBN (Type 230)
12
Pole size available on demand
31230112
