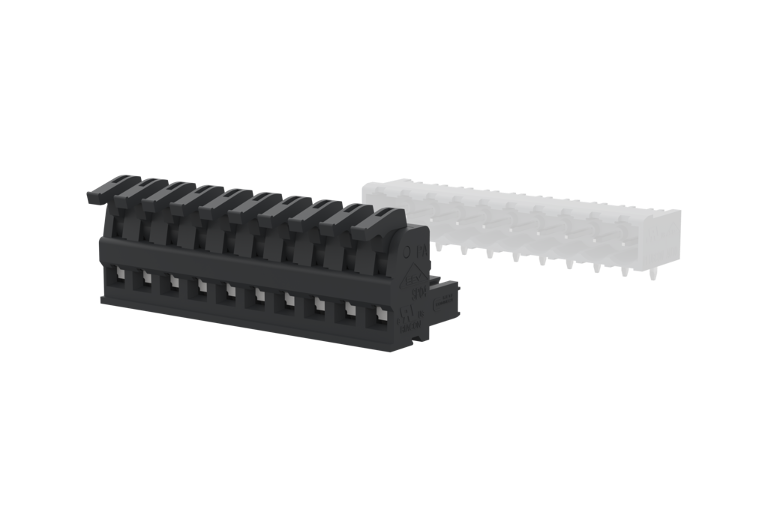

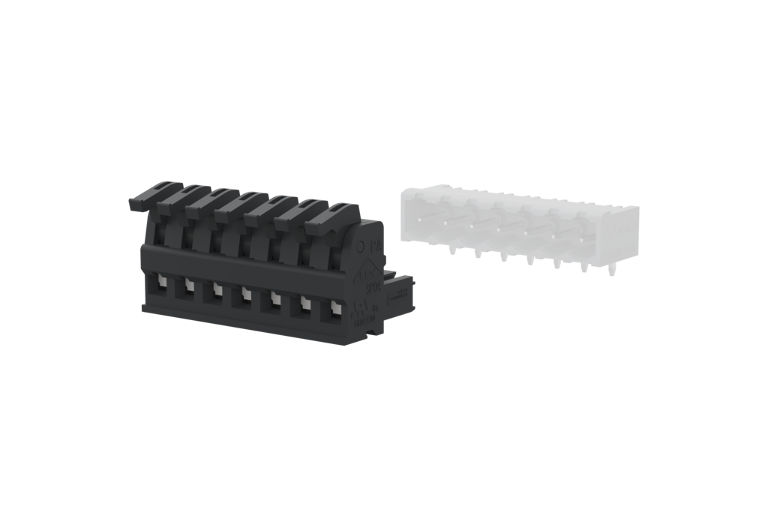

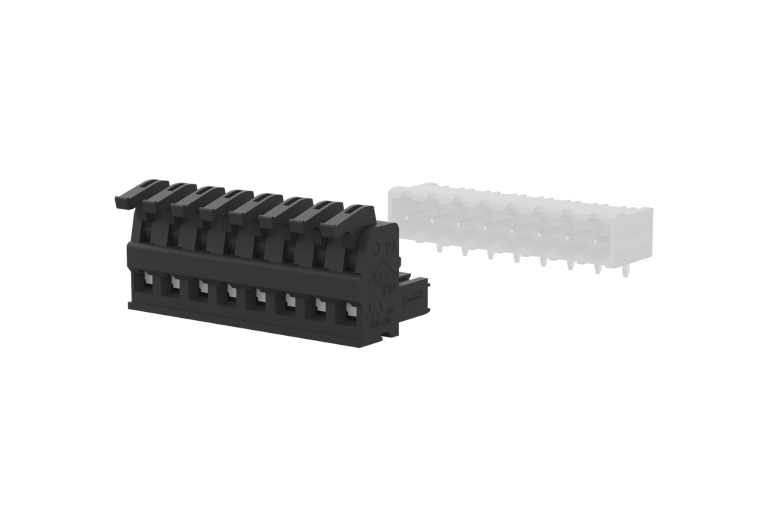

PT116xxHBEC Type 229
Description
- pin header, solderable
- centerline 5.08 mm, direction of connection 90°
- open ends, fittable without loss of poles
- color black
- codeable
Technical Data
General Data
3.45 mm
2
24
CTI 600
4.08 mm
IP00
Material
PA66
V0
CuFe
Ni + Ag
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Accessories

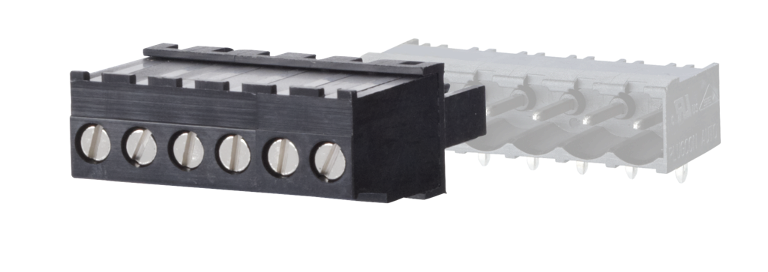

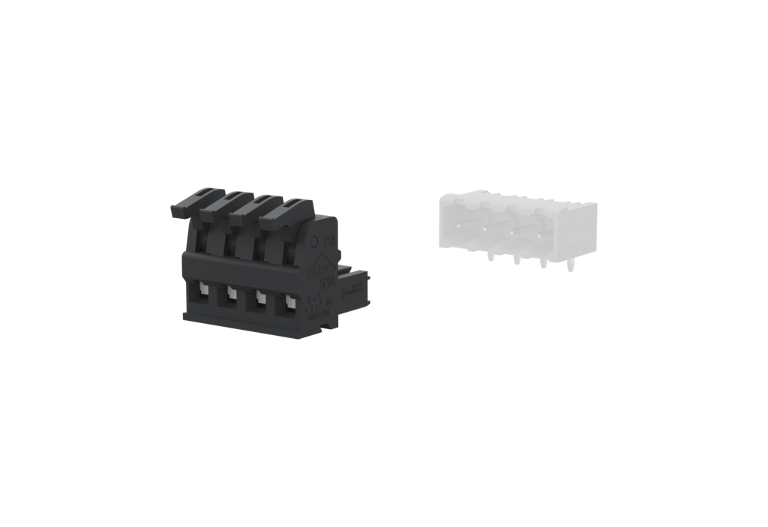

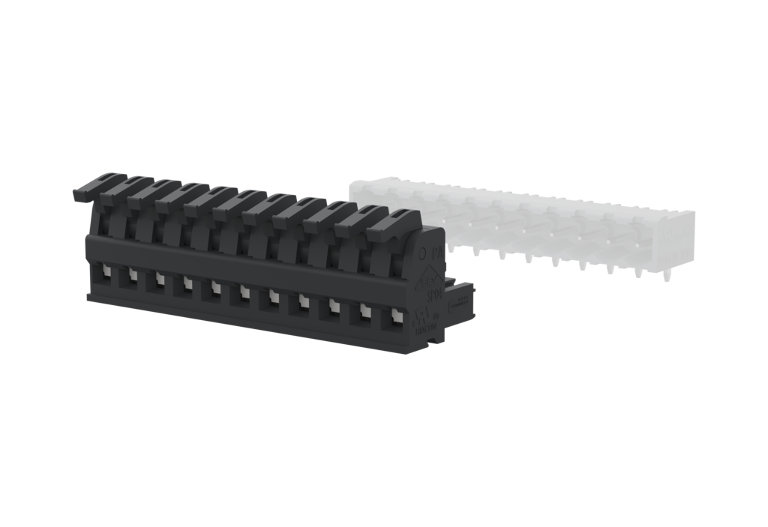

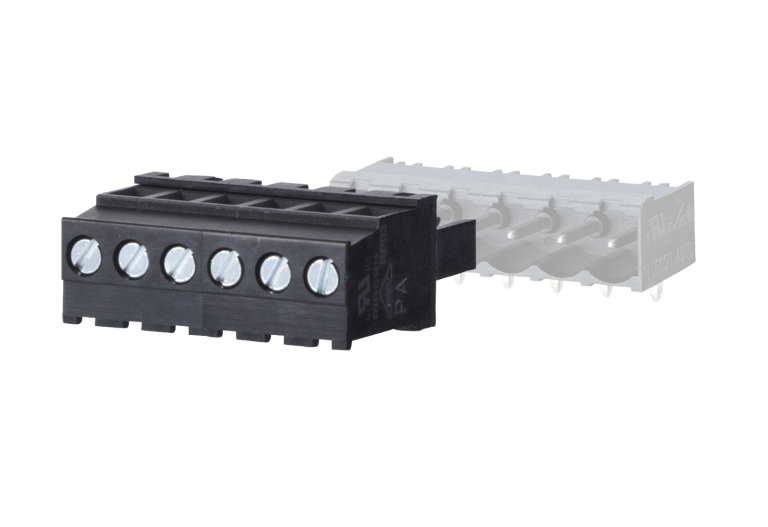

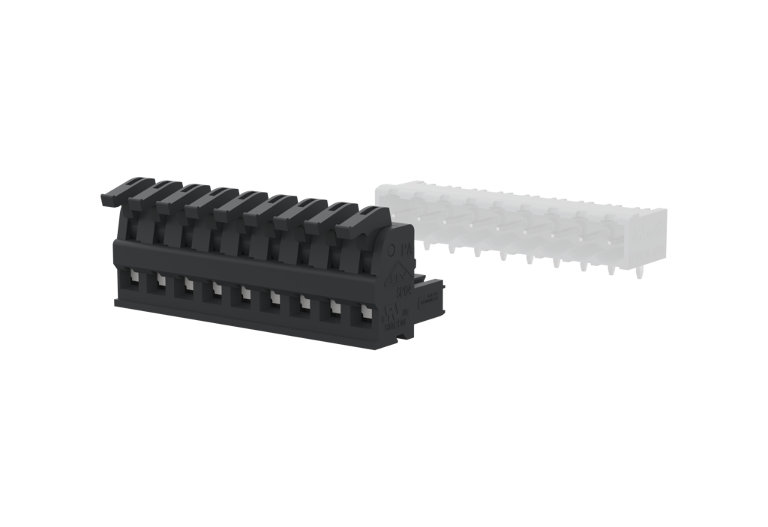

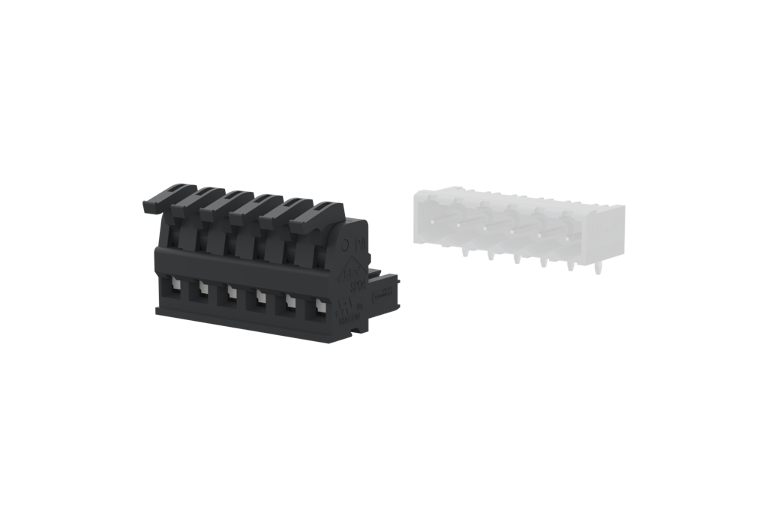

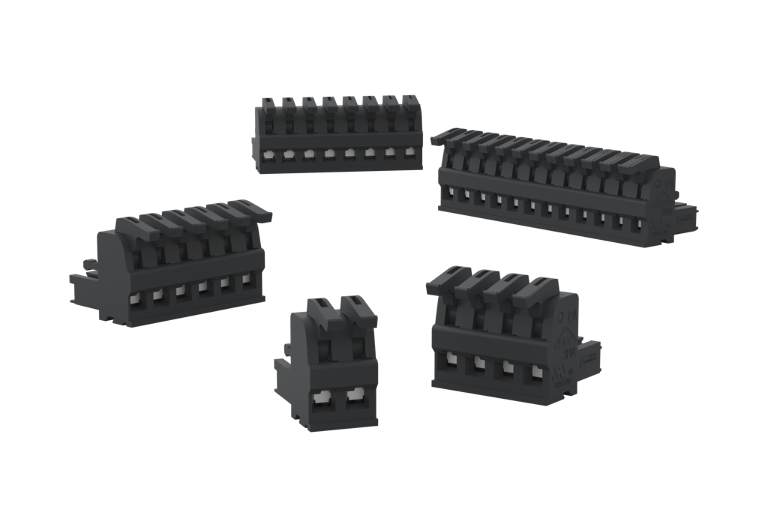

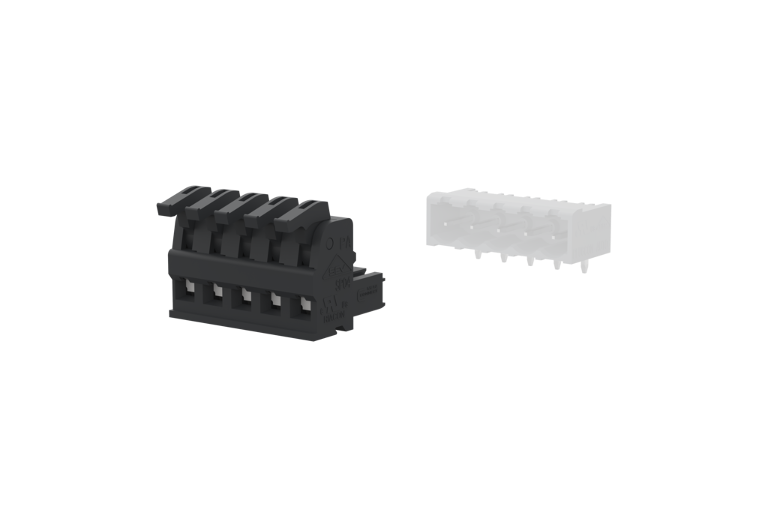

Counterpart from
Part number
Downloads
- RoHS Certificate
- REACh Statement
- 3D-Data (3D-Data PT11615HBEC_31229115) - Registration required -
- 3D-Data (3D-Data PT11610HBEC_31229110) - Registration required -
- 3D-Data (3D-Data PT11609HBEC_31229109) - Registration required -
- 3D-Data (3D-Data PT11608HBEC_31229108) - Registration required -
- 3D-Data (3D-Data PT11606HBEC_31229106) - Registration required -
- 3D-Data (3D-Data PT11604HBEC_31229104) - Registration required -
- 3D-Data (3D-Data PT11603HBEC_31229103) - Registration required -
- 3D-Data (3D-Data PT11602HBEC_31229102) - Registration required -
- Data sheet
Sample order
Standard poles sizes
Additional Information
