PR065xxHBBN Type 176
Description
- pin header, THR solderable
- centerline 5.00 mm, direction of connection 90°
- closed ends
- color black
- Tape & Reel packaging possible
- codeable
Technical Data
General Data
3.45 mm
2
12
CTI 600
4 mm
IP00
Material
PA66/6T
V0
CuMg
Cu + Sn
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Accessories

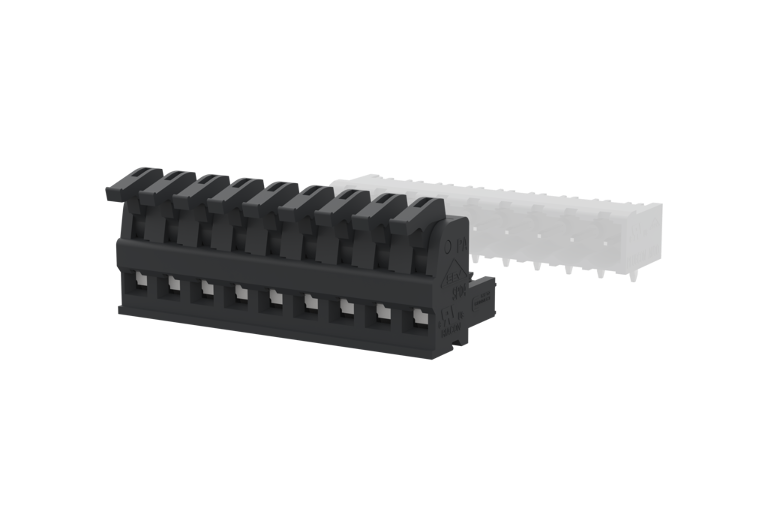

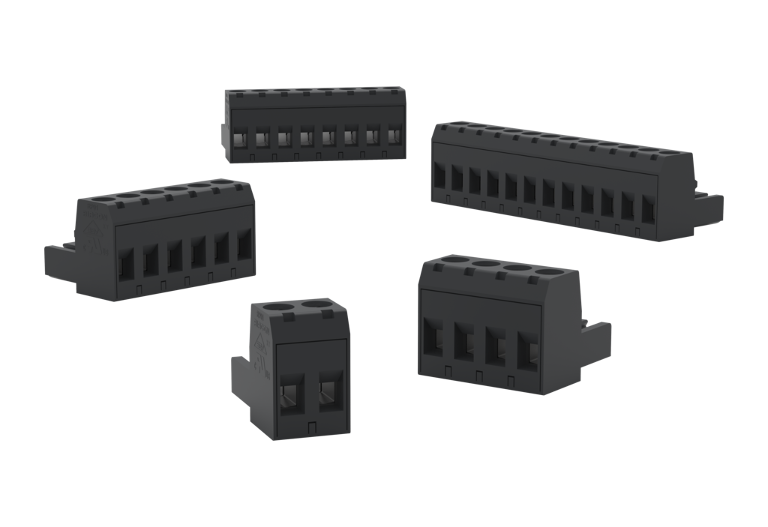

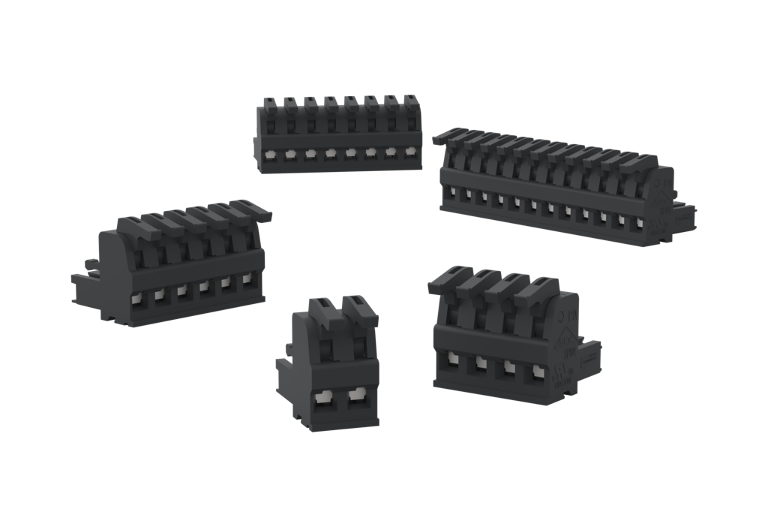

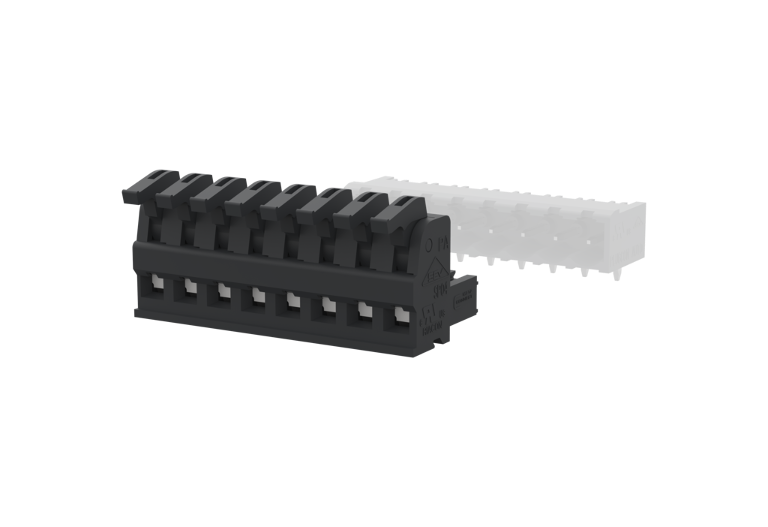

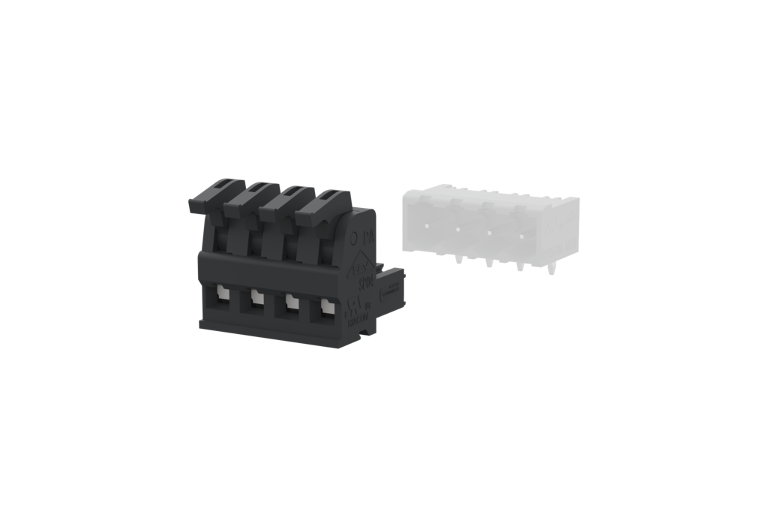

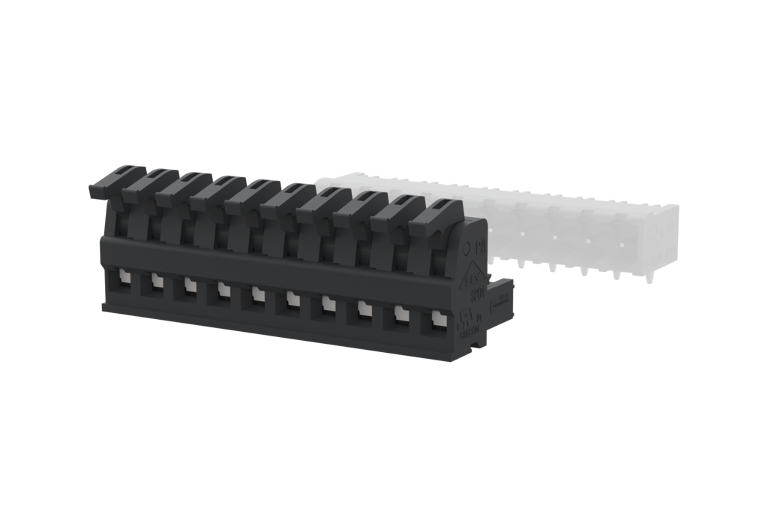

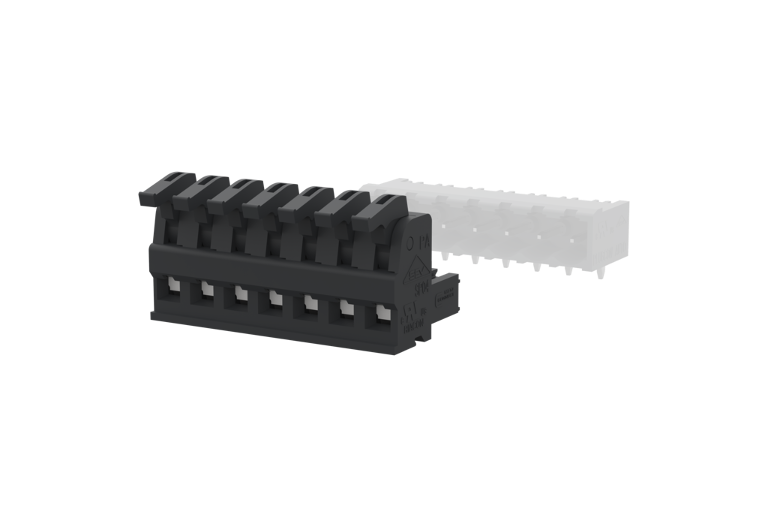

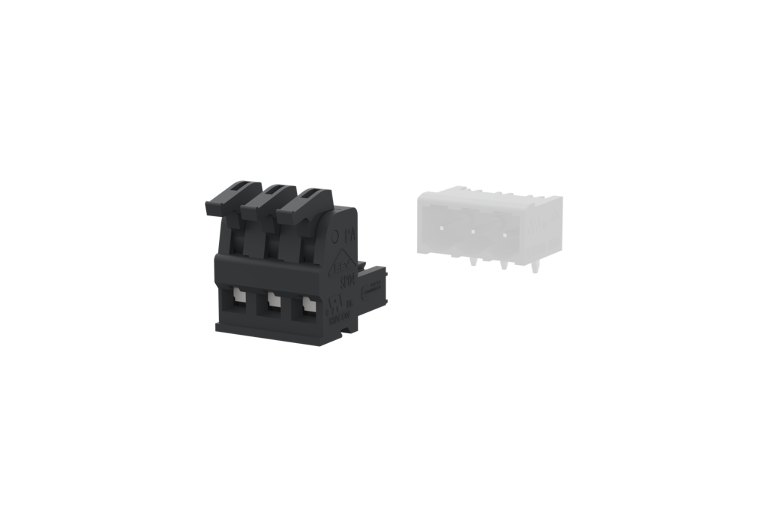

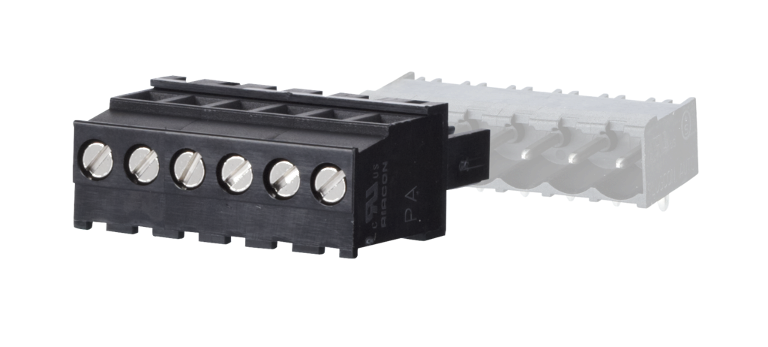

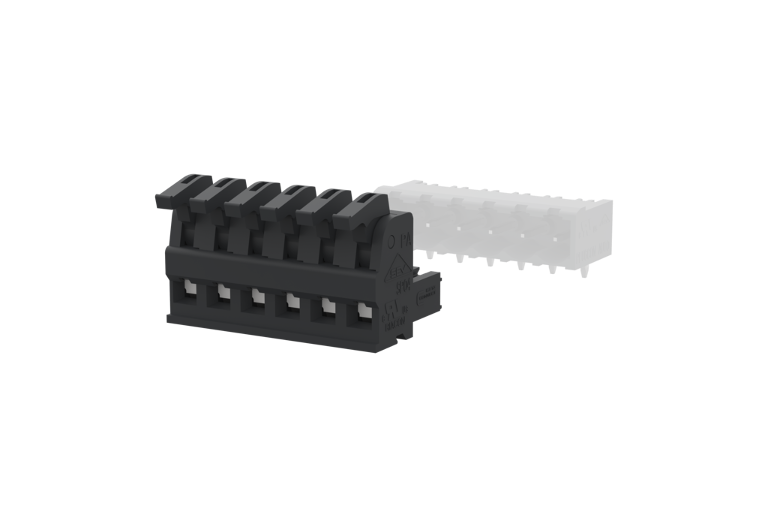

Counterpart from
Part number
Downloads
- RoHS Certificate
- REACh Statement
- 3D-Data (3D_PR06502HBBN) - Registration required -
- 3D-Data (3D_PR06503HBBN) - Registration required -
- 3D-Data (3D_PR06504HBBN) - Registration required -
- 3D-Data (3D_PR06505HBBN) - Registration required -
- 3D-Data (3D_PR06506HBBN) - Registration required -
- 3D-Data (3D_PR06507HBBN) - Registration required -
- 3D-Data (3D_PR06508HBBN) - Registration required -
- 3D-Data (3D_PR06509HBBN) - Registration required -
- 3D-Data (3D_PR06510HBBN) - Registration required -
- 3D-Data (3D_PR06511HBBN) - Registration required -
- 3D-Data (3D_PR06512HBBN) - Registration required -
- Data sheet
Additional Information
