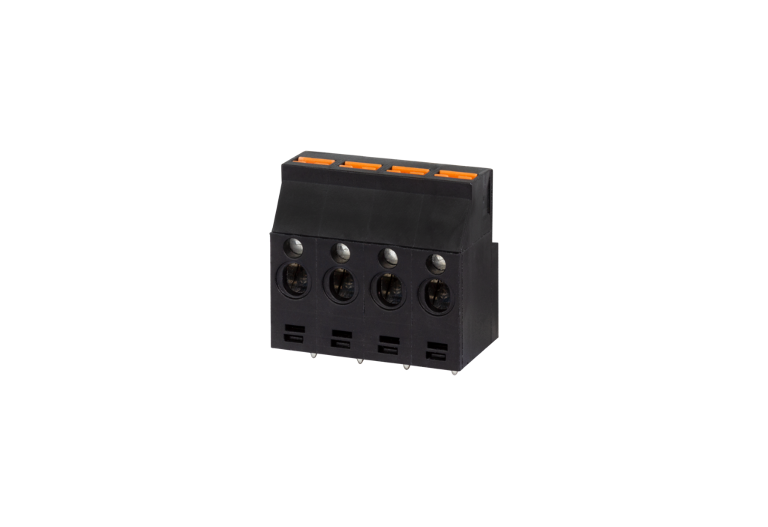

SR255xxHBNC
Description
- spring clamp terminal block, THT solderable
- centerline 5.00 mm, direction of connection 90°
- fittable without loss of poles
- color black
Technical Data
General Data
2.4 mm
2
12
CTI 600
4 mm
IP20
8 mm
20 A
Connection Data
0,2 - 2,5 mm²
AWG 24 - 14
0,2 - 2,5 mm²
AWG 24 - 12
Material
PPA
V0
Spring steel
CuSn
Sn
960 °C acc. to IEC 60695-2-12
800 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Part number
Downloads
- RoHS Certificate
- REACh Statement
- 3D-Data (3D_SR25504HBNC) - Registration required -
- 3D-Data (3D_SR25503HBNC) - Registration required -
- 3D-Data (3D_SR25506HBNC) - Registration required -
- 3D-Data (3D_SR25502HBNC) - Registration required -
- Product information
- Data sheet
Sample order
Standard poles sizes
Additional Information
