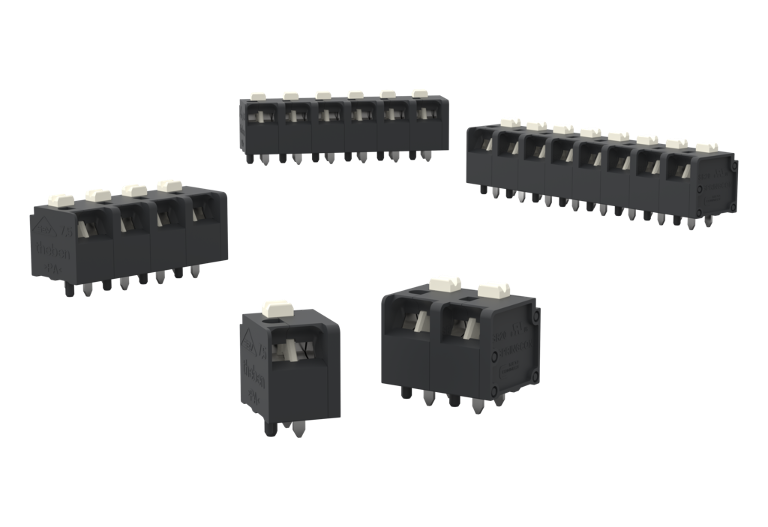

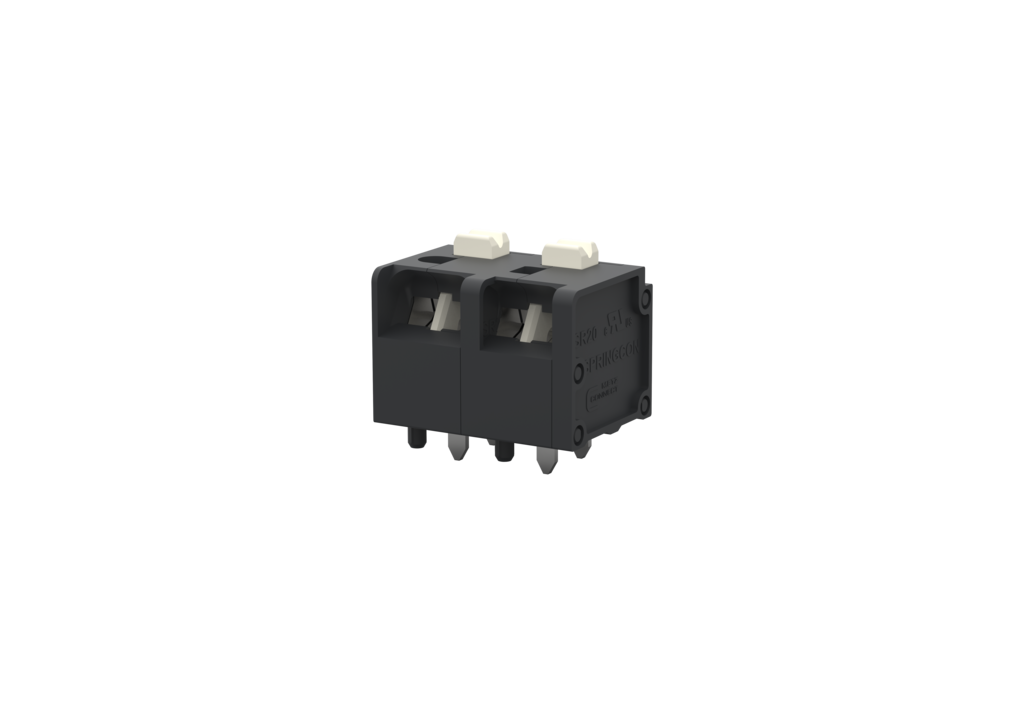

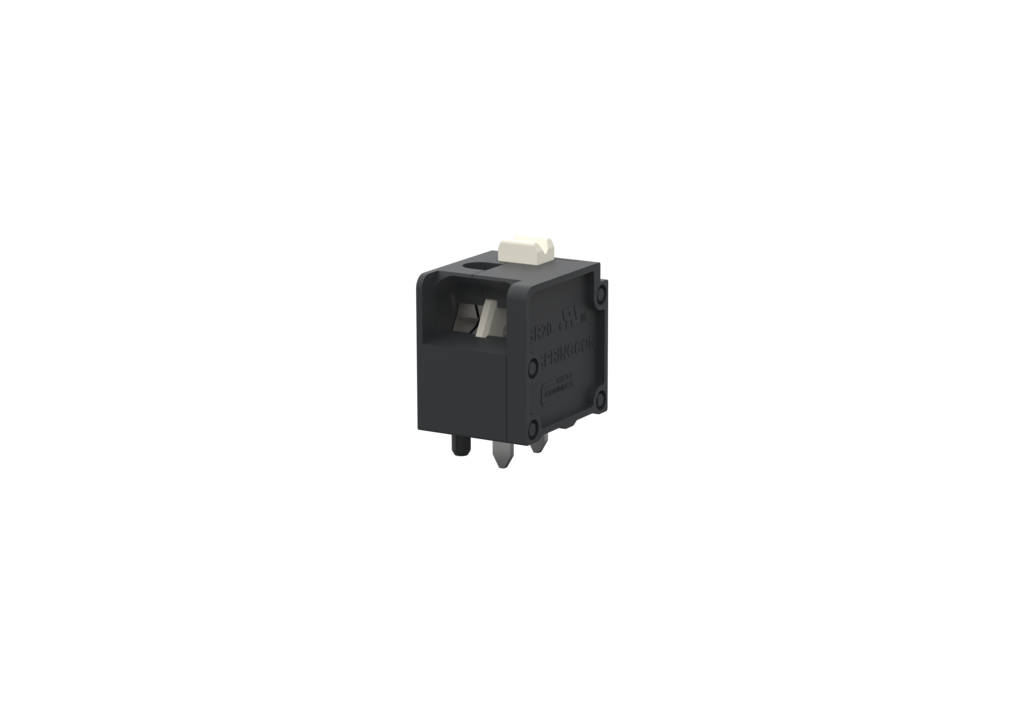

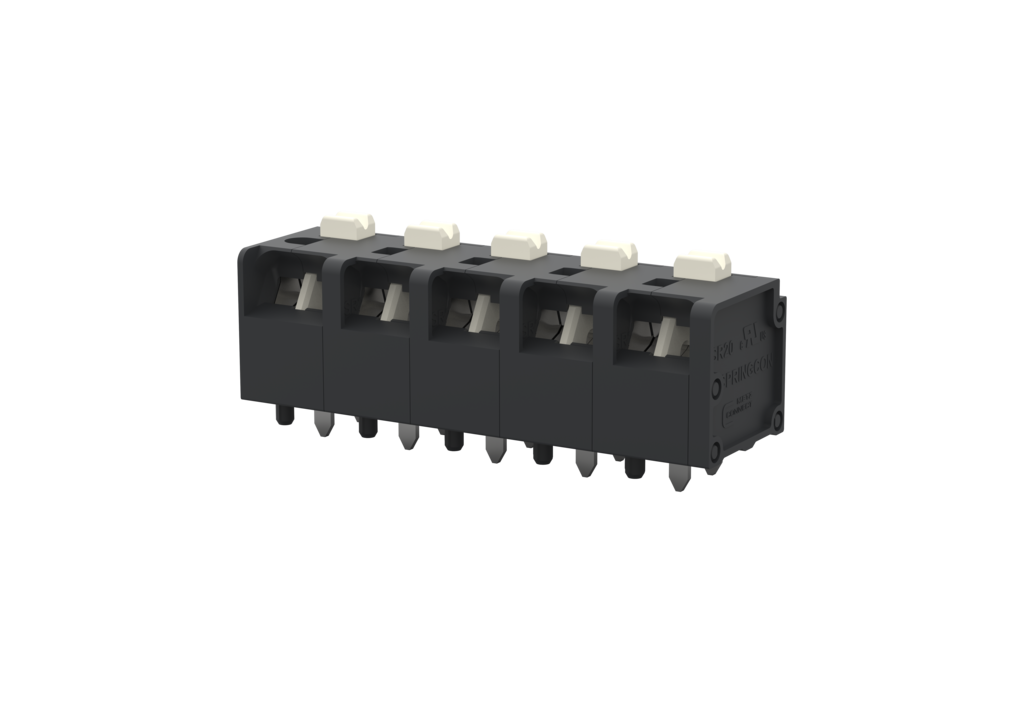

SR207xxDBVN
Description
- spring clamp terminal block, THR solderable, double solder pins
- centerline 7.50 mm, direction of connection 45°
- color black
- push-button, double solder pins
- Tape & Reel packaging possible
Technical Data
General Data
3 mm
CTI 600
4.7 mm
IP20
9 mm
16 A
Connection Data
0,5 - 2,5 mm²
AWG 20 - 14
0,5 - 2,5 mm²
AWG 20 - 14
Material
PA/PPA
V0
Spring steel
CuSn
Sn
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
125 °C
-40 °C
Check US distributor inventory
Part number
Downloads
- RoHS Certificate
- REACh Statement
- 3D-Data (3D-Data SR20705DBVN) - Registration required -
- 3D-Data (3D-Data SR20704DBVN) - Registration required -
- 3D-Data (3D-Data SR20703DBVN) - Registration required -
- 3D-Data (3D-Data SR20702DBVN) - Registration required -
- 3D-Data (3D_SR20701DBVN) - Registration required -
- 3D-Data (3D_SR20702DBVN) - Registration required -
- 3D-Data (3D_SR20703DBVN) - Registration required -
- 3D-Data (3D_SR20704DBVN) - Registration required -
- 3D-Data (3D_SR20705DBVN) - Registration required -
- Data sheet
Additional Information
