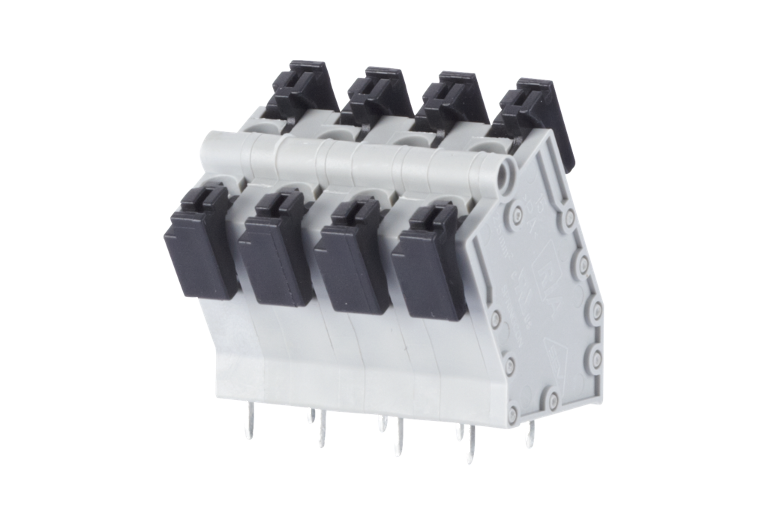

ST187xxLDNN AST187
Description
- spring clamp terminal block, solderable, double solder pins
- centerline 7.50 mm, direction of connection 60°
- color gray
- push-button, double solder pins
- discontinued as of December 31, 2026
Technical Data
General Data
4 mm
2
24
CTI 600
7.12 mm
IP20
15 mm
15 A
Connection Data
0,08 - 2,5 mm²
AWG 28 - 12
0,08 - 2,5 mm²
AWG 28 - 12
Material
PA66
V0
Spring steel
CuSn
Sn
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
