ST186xxLDNN AST186
Description

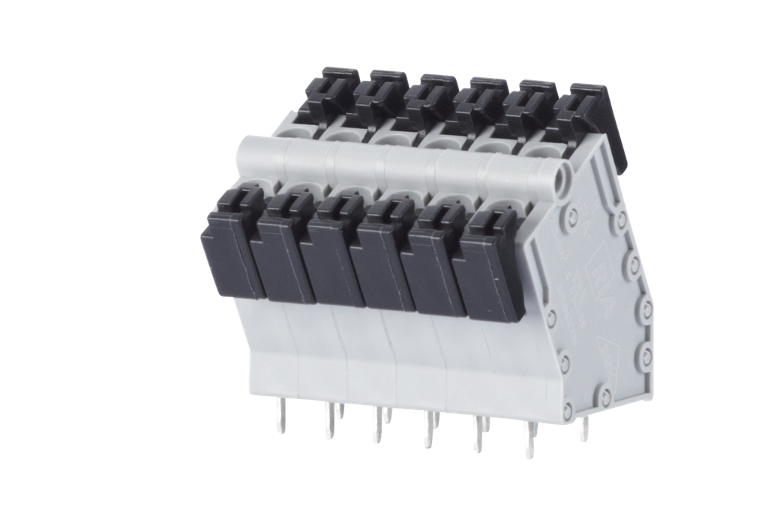

- spring clamp terminal block, solderable, double solder pins
- centerline 5.08 mm, direction of connection 60°
- color gray
- push-button, double solder pins
- discontinued as of December 31, 2026
Technical Data
General Data
4 mm
2
24
CTI 600
4.5 mm
IP20
15 mm
15 A
Connection Data
0,08 - 2,5 mm²
AWG 28 - 12
0,08 - 2,5 mm²
AWG 28 - 12
Material
PA66
V0
Spring steel
CuSn
Sn
960 °C acc. to IEC 60695-2-12
775 °C acc. to IEC 60695-2-13
Climatic Data
105 °C
-40 °C
Check US distributor inventory
Part number
Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.
AST186
04
Pole sizes only available on demand
