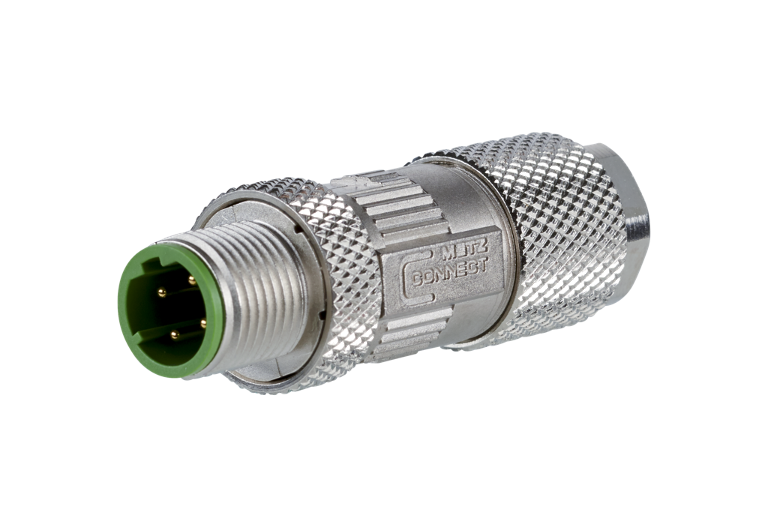

M12 plug, D-coded, IP67, Cat. 5, Ø 4-6 mm,
field assembly, straight
Description
- field-attachable M12 plug, Cat.5, D-coded based on DIN EN 61076-2-101
- for a 4 wire cable connection
- connection of AWG 26/7 - 22/7, AWG 24/1 - 22/1 possible
- solid copper wire diameter from 0.4 to 0.64 mm
- stranded copper wire diameter from 0.48 to 0.76 mm
- conductor diameter up to 1.6 mm
- cable jacket from 4.0 to 6.0 mm
- consists of only 2 parts
- easy assembly - connection without special tools
- zinc die-cast housing for industrial use
- suitable for applications in the railway industry according to data sheet
Technical Data
General Data
E2
plug
shielded
Copper
52 mm
16.8 mm
16.8 mm
2.047 in.
0.661 in.
0.661 in.
yes
on housing
Transmission characteristics
5
5

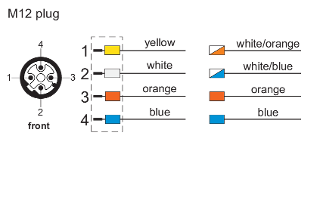

Connections/interfaces
IDC-connection
M12-plug
D-coded
1
1
4
4
AWG 24/1 - AWG 22/1
0,205 - 0,324 mm²
0,511 - 0,643 mm
0,02 - 0,025 in.
AWG 26/7 - AWG 22/7
0,141 - 0,355 mm²
0,483 - 0,762 mm
0,019 - 0,03 in.
0.85 mm
1.6 mm
0.033 in.
0.063 in.
4 mm
6 mm
0.197 in.
0.382 in.
straight M12
Electrical characteristics
max. 1 A
min. 100 MOhm
Mechanical data
screwable
min. 100
Materials and material properties
GD-Zn
CuZnPb (brass)
Ni + Au (nickel-gold)
CuSn
Sn
PA UL94-V0
yes
Ni (nickel)
compliant
Environmental conditions
-40 °C
85 °C
-40 °F
185 °F
-40 °C
85 °C
-40 °F
185 °F
IP6X when plugged in
IPX7 when plugged in
25 °C / +40 °C / 93% RH // 5 cycles
III
2
490 m/s²
Check US distributor inventory
Part number
MNF891A115
4251394672793
