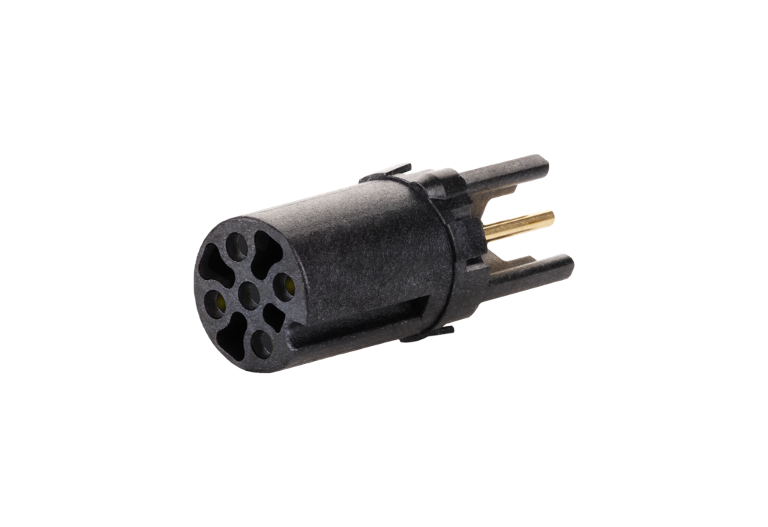

PC board insert M12, A-coded, 2-pole, black
Description
- PC board insert M12
- 2-pole, A-coded according to IEC 61076-2-101
- THR solderable
- Top entry
- Contact carriers black
- suitable for applications in the railway industry according to data sheet
Technical Data
General Data
Ø 9.2 mm
20.5 mm
0.362 in.
0.807 in.
Single port
Acc. to IPC/JEDEC J-STD-020E-MSL 1
A-coded
Electrical characteristics
250 V
4 A
min. 100 MOhm
II
2
Mechanical data
CuZnPb
Ni + Au
LCP UL94 V0
black
pending
>= 100
Klimatische Eigenschaften
-40 °C
85 °C
-40 °F
185 °F
Check US distributor inventory
Part number
MMT060A915-0001
4251394631905
Downloads
- Brochure (Overview M12)
- 3D-Data - Registration required -
- Data sheet
