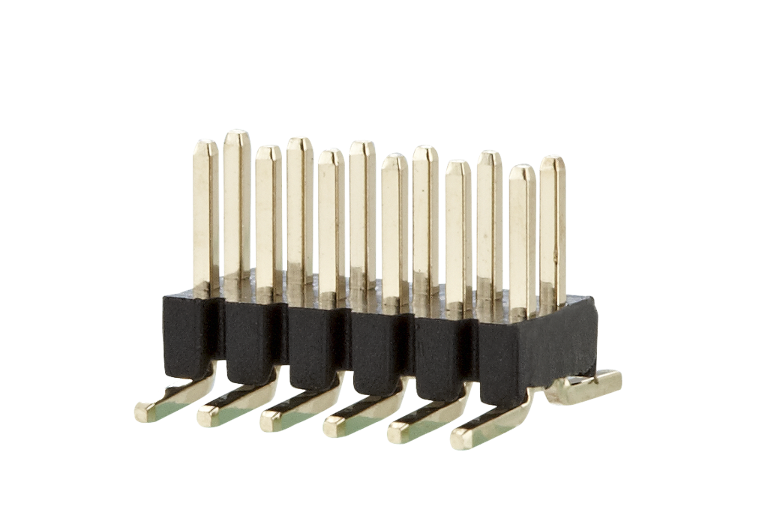

PM20BxxVBDN

954945

Description

pin header, SMT solderable
centerline 1.27 mm, direction of connection vertical 0°
color black
Tape & Reel packaging possible
dual rows

Technical Data

General Data

min. number of poles:

2

max. number of poles:

50

Protection category:

IP00

Material

insulating material:

PE-HT

Glow-Wire Flammability GWFI:

-

Glow-Wire Flammability GWIT:

-

contact pin material:

CuZn

contact pin surface:

Ni + Au Flash

Climatic Data

upper limit temperature:

105 °C

lower limit temperature:

-40 °C

Check US distributor inventory

Part number

Complete the part number by adding the pole size. For Pin Headers and Female Connectors, add the pole size per row.

PM20B

VBDN

06 10

Pole sizes only available on demand
