E-DAT C6A 2 Port flush mounted trunking installation
pure white
Description
Compact wall outlet for the construction of a passive network infrastructure with the highest quality requirements. The junction box is suitable for connecting telephones up to 10 Gbit networks and power supply with PoE with up to 90W. The installer can connect the very robust zinc die-cast wall outlet very easily and in the shortest possible time with an LSA installation tool without errors. In addition to the permanent quality control during production, independent test laboratories confirm the very good quality with various certificates. The wall outlets are supplied in retail-friendly, separable cardboard packaging with 10 pieces each.
- variants, mounting type: AP, UP, UPk, UP0
- variants, number of ports: 1, 2
Technical Data
General Data
- structured building cabling
- office areas
- Distributed building services
M1
I1
C1
E2
wall outlet
UPk
shielded
Copper

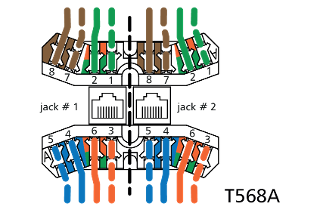

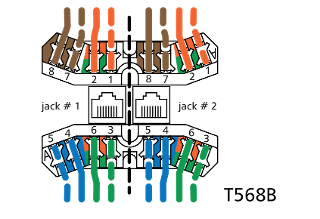

T568A, T568B
pure white - RAL 9010
label window with identification label
by dust protection
Transmission characteristics
6A
EA
6A
yes
IEEE 802.3af
IEEE 802.3at
yes
IEEE 802.3bt
yes
yes
yes
IEEE 802.3bw
IEEE 802.3ab
IEEE 802.3an
Connections/interfaces
LSA terminal block
RJ45-jack
2
2 x 8
2 x 8P/8C
AWG 26/1 - AWG 22/1
5.5 mm
10
0.197 in.
0,394
45° downwards
flexible contact spring
8 directions
6.3 mm flat plug
Electrical/optical characteristics
max. 1 A at 60 °C
max. 60 V DC
max. 20 mOhm
max. 200 mOhm
min. 500 MOhm
max. 1000 V DC
max. 1.000 V AC
max. 1500 V DC
max. 1500 V AC
Mechanical data
max. 30 N
min. 750
top
housing flap
Materials and material properties
GD-Zn
Hyper Ph-Br
AuCo
CuSn6
yes
compliant
Environmental conditions
-40 °C
70 °C
-40 °C
70 °C
IP20
Certifications
Component
Check US distributor inventory

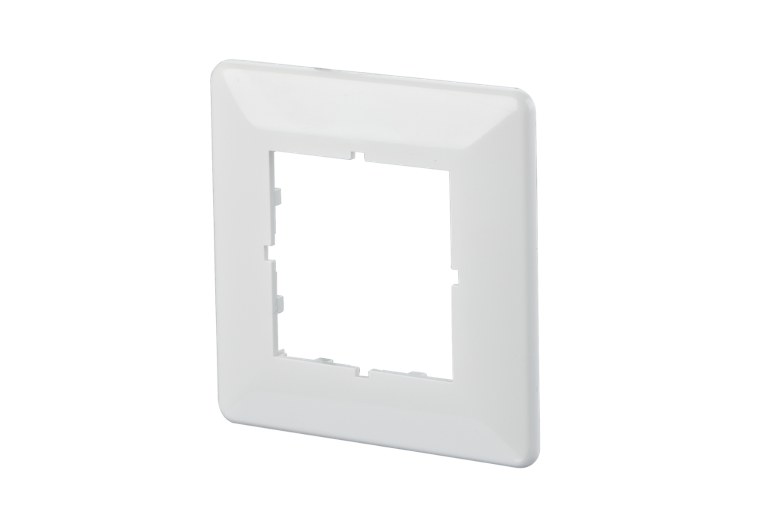

Accessories
Part number
130C381102-I
4250184116233
