Wall outlets C6Amodul 270°
Description

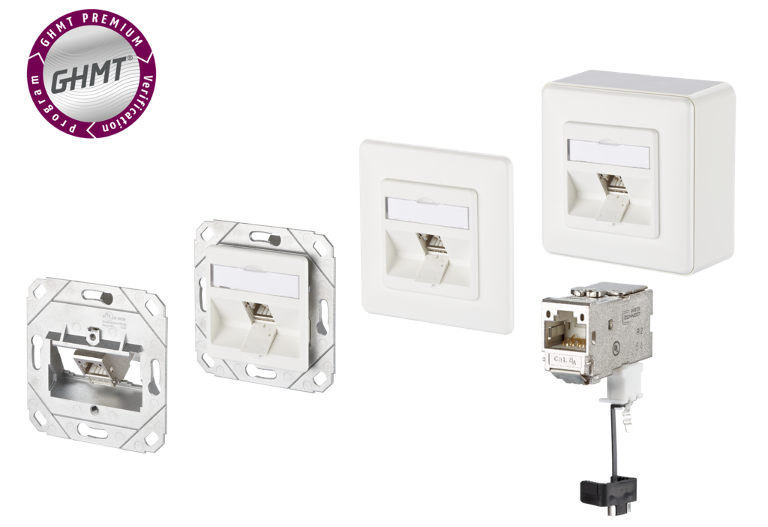

Modular wall outlet for the construction of a passive network infrastructure with the highest quality requirements. The junction box is suitable for connecting telephones up to 10 Gbit networks and power supply with PoE with up to 90W. The very robust, nickel-plated zinc die-cast module, which consists of only two parts, can be connected by the installer very easily and in a very short time without any special tools. In addition to the permanent quality control during production, independent test laboratories confirm the very good quality of the individual modules with various certificates. The wall outlets are supplied in retail-friendly, separable cardboard packaging with 10 pieces each.
- variants, mounting type: AP, UP, UPk, UP0
- variants, number of ports: 1, 2, 3
Check US distributor inventory
Overview of variants
Description
Mounting style
Number of ports
Flush-mounted / cavity wall cups suitable
Color
Part number
Accessories

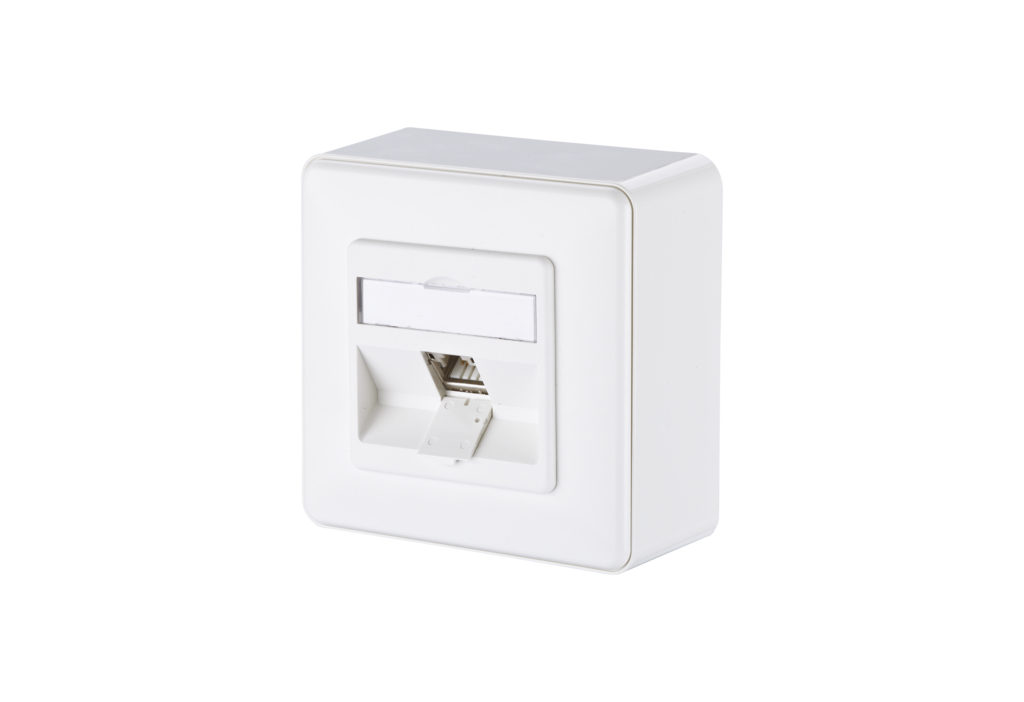

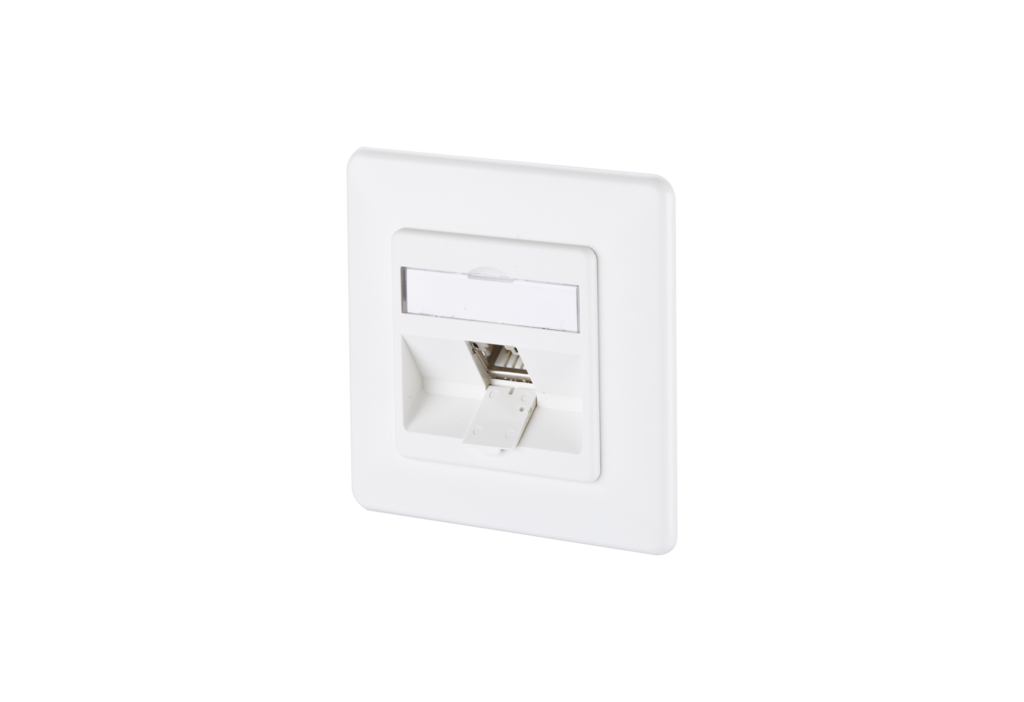

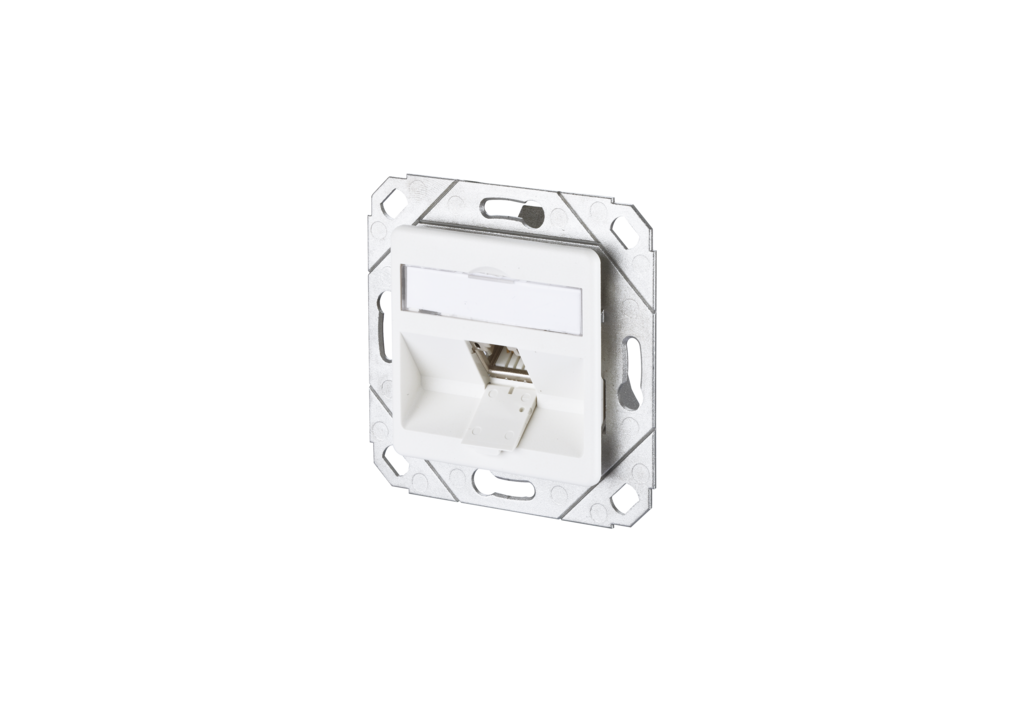

C6Amodul 1 port 270°M flush mounted trunking installation
pure white
pure white
UPk
1
yes
pure white - RAL 9010
130B12D11102-E
C6Amodul 1 port 270°M flush mounted trunking installation
traffic white
traffic white
UPk
1
yes
traffic white - RAL 9016
130B12D11127-E

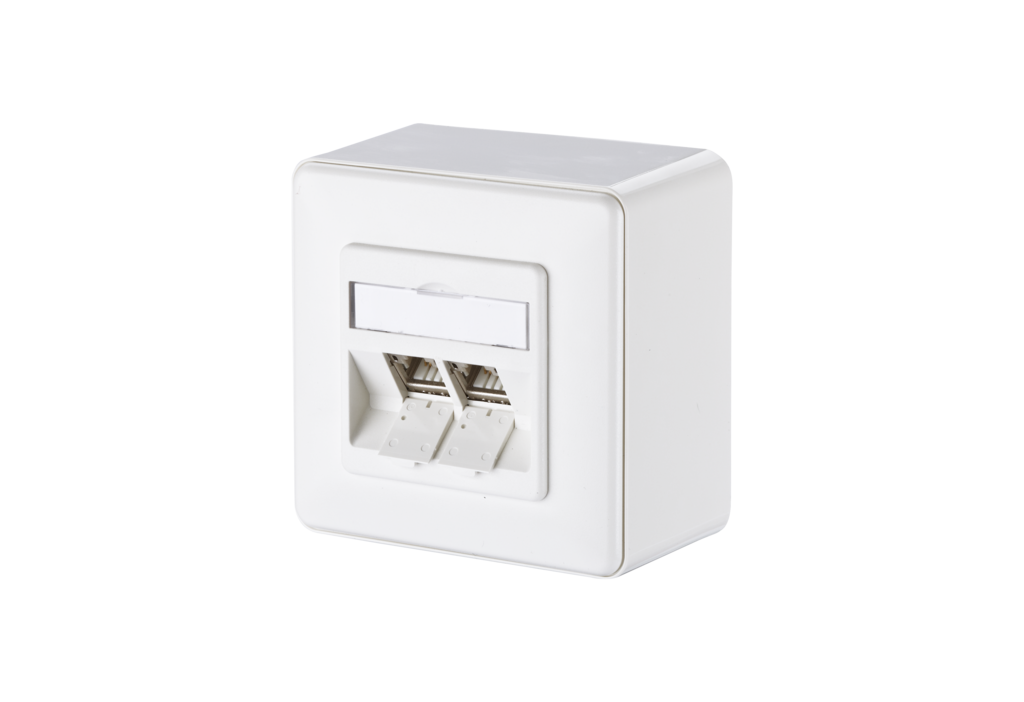

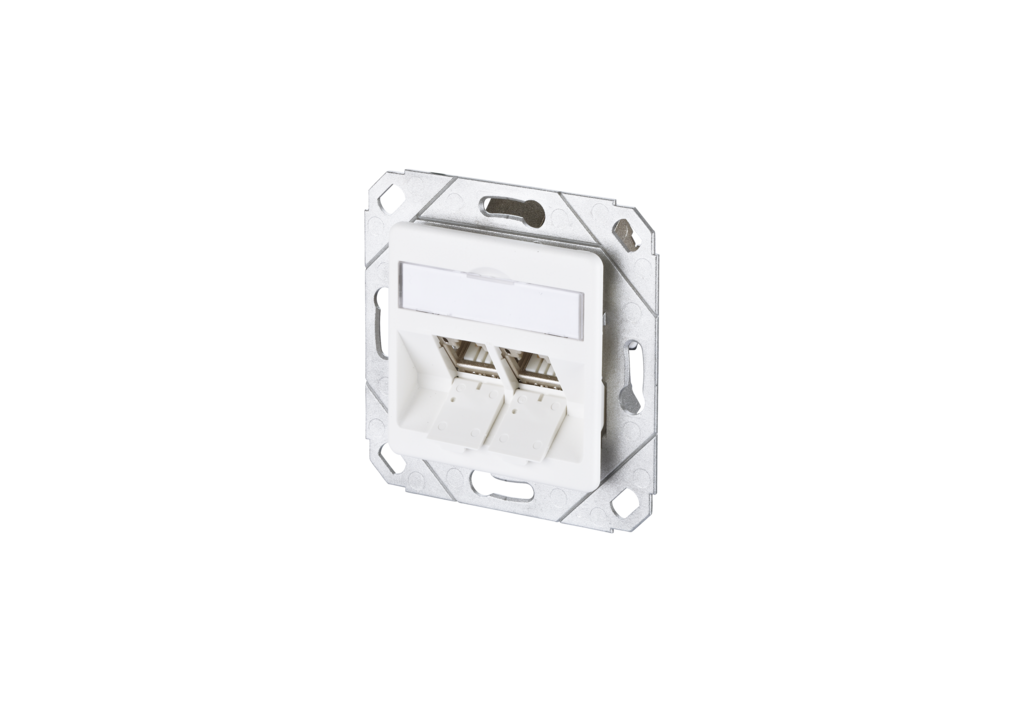

C6Amodul 2 port 270°M flush mounted trunking installation
pure white
pure white
UPk
2
yes
pure white - RAL 9010
130B12D21102-E
C6Amodul 2 port 270°M flush mounted trunking installation
traffic white
traffic white
UPk
2
yes
traffic white - RAL 9016
130B12D21127-E
C6Amodul 3 port 270°M flush mounted trunking installation
pure white
pure white
UPk
3
yes
pure white - RAL 9010
130B12D31102-E
Additional Information
