C6Amodul 1 port 270°M flush mounted without cover
Description
Modular wall outlet for the construction of a passive network infrastructure with the highest quality requirements. The junction box is suitable for connecting telephones up to 10 Gbit networks and power supply with PoE with up to 90W. The very robust, nickel-plated zinc die-cast module, which consists of only two parts, can be connected by the installer very easily and in a very short time without any special tools. In addition to the permanent quality control during production, independent test laboratories confirm the very good quality of the individual modules with various certificates. The wall outlets are supplied in retail-friendly, separable cardboard packaging with 10 pieces each.
- variants, mounting type: AP, UP, UPk, UP0
- variants, number of ports: 1, 2, 3
Technical Data
General Data
- structured building cabling
- office areas
- Distributed building services
M1
I1
C1
E2
wall outlet
UP0
shielded
Copper

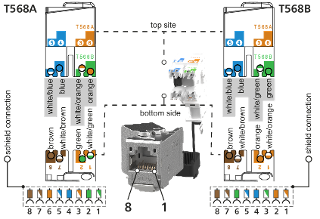

T568A, T568B
metallike
yes
Transmission characteristics
6A
EA
6A
yes
IEEE 802.3af
IEEE 802.3at
yes
IEEE 802.3bt
yes
yes
yes
IEEE 802.3bw
IEEE 902.3ab
IEEE 802.3an
Connections/interfaces
IDC-connection
RJ45-jack
1
8
8P/8C
AWG 26/1 - AWG 22/1
AWG 26/7 - AWG 22/7
5.5 mm
10
0.197 in.
0,394
45° downwards
270°
Via M4 thread (screw not included!)
Electrical/optical characteristics
max. 1 A at 60 °C
max. 60 V DC
max. 56.5 V DC
max. 20 mOhm
max. 200 mOhm
min. 500 MOhm
max. 1000 V DC
max. 1.000 V AC
max. 1500 V DC
max. 1500 V AC
Mechanical data
Module
max. 30 N
min. 750
top
latching clip
Materials and material properties
GD-Zn
GD-Zn
Spring steel
AuCo
CuSn6
yes
compliant
Environmental conditions
-40 °C
70 °C
-40 °C
70 °C
IP20
Certifications
yes
Check US distributor inventory
Accessories
Part number
130B12D11200-E
4250184131892
