E-DAT modul 1 port flush mounted trunking installation
Cat.6_A, pure white

Description

Modular wall outlet for the construction of a passive network infrastructure with the highest quality requirements. The junction box is suitable for connecting telephones up to 10 Gbit networks and power supply with PoE with up to 90W. The very robust, nickel-plated zinc die-cast module, which consists of only two parts, can be connected by the installer very easily and in a very short time without any special tools. In addition to the permanent quality control during production, independent test laboratories confirm the very good quality of the individual modules with various certificates. The wall outlets are supplied in retail-friendly, separable cardboard packaging with 10 pieces each.

variants, mounting type: AP, UP, UPk, UP0
variants, number of ports: 1, 2, 3

Technical Data

General Data

Fields of application:

structured building cabling
office areas
Distributed building services

Mechanical measurement according to MICE:

Ingress measurement according to MICE:

Climatic measurement according to MICE:

Electromagnetic measurement according to MICE:

Design:

wall outlet

Mounting style:

UPk

Shielding:

shielded

Transmission technology:

Copper

Wiring:

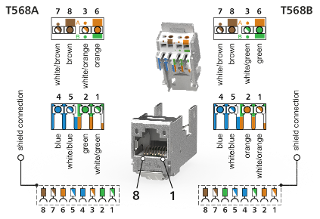

T568A and T568B

Color:

pure white - RAL 9010

Modularity:

yes

Labeling option:

label window with identification label

Marking option:

by dust protection

Transmission characteristics

Category (ISO):

6_A

Class (ISO/IEC):

E_A

Category (TIA):

Remote Powering:

yes

PoE:

IEEE 802.3af

PoE plus:

IEEE 802.3at

UPoE:

yes

4PPoE:

IEEE 802.3bt

HDBaseT:

yes

SAT-IP:

yes

AVoverIP:

yes

Transmission rate up to 100 MBit (Fast Ethernet):

IEEE 802.3bw

Transmission rate up to 1 GBit (Fast Ethernet):

IEEE 902.3ab

Transmission rate up to 10 GBit:

IEEE 802.3an

Connections/interfaces

Connector technology interface 1:

IDC-connection

Connector technology interface 2:

RJ45-jack

Number of ports interface 2:

Number of positions/contacts interface 1:

Number of positions/contacts interface 2:

8P/8C

Conductor cross section solid wire [AWG] min-max:

AWG 26/1 - AWG 22/1

Conductor cross section stranded wire [AWG] min-max:

AWG 26/7 - AWG 22/7

Cable sheath diameter [mm min.]:

5.5 mm

Cable sheath diameter [mm max.]:

Cable sheath diameter [inch min.]:

0.197 in.

Cable sheath diameter [inch max.]:

0,394

Module plug-in direction:

180°

Shield connection:

flexible contact spring

Ground connection:

Via M4 thread (screw not included!)

Electrical/optical characteristics

Current carrying capacity:

max. 1 A at 60 °C

Rated voltage:

max. 60 V DC

Rated voltage UL:

max. 56.5 V DC

Contact resistance:

max. 20 mOhm

Through resistance:

max. 200 mOhm

Insulation resistance:

min. 500 MOhm

Dielectric strength conductor-conductor (secondary) [V DC]:

max. 1000 V DC

Dielectric strength conductor-conductor, peak value (secondary) [V AC]:

max. 1.000 V AC

Dielectric strength conductor-shield [V DC]:

max. 1500 V DC

Dielectric strength conductor-shield, peak value [V AC]:

max. 1500 V AC

Mechanical data

Cut-out:

Module

Insertion and withdrawal force:

max. 30 N

Life - Number of mating cycles:

min. 750

Position/mounting of latch
standard installation position:

top

strain relief:

cable tie

Materials and material properties

Material - Supporting frame:

GD-Zn

Material - Module support:

GD-Zn

Material - Contact:

Spring steel

Material - Contact finish:

Ni + Au (nickel-gold)

Material - Contact carriers:

PA 6.6

Material - Insulation displacement contacts:

CuSn

Material - Finish of insulation displacement contacts:

Material - Shield:

GD-Zn

Halogen free:

yes

RoHS:

compliant

Environmental conditions

Temperature - Storage °C [min.]:

-40 °C

Temperature - Storage °C [max.]:

70 °C

Temperature - Operating °C [min.]:

-40 °C

Temperature - Operating °C [max.]:

70 °C

IP class:

IP20

Certifications

GHMT Type Approval:

Component

UL listed (file no.):

DUXR.E178484

Check US distributor inventory

Accessories

Surface mount frame 85 x 85 x 35 mm - Single, pure white

Surface mount frame 85 x 85 x 43 mm - single, pure white

T-Slot mounting bracket for wall outlets - horizontal mounting
without 50 mm, separation cup

T-Slot mounting bracket for wall outlets - horizontal mounting
50 mm, with separation cup

DIN Rail mounting bracket for wall outlets - horizontal mounting
50 mm, without separation cup

DIN Rail mounting bracket for wall outlets - horizontal mounting
50 mm, with separation cup

T-Slot mounting bracket for wall outlets - vertical mounting
50 mm, without separation cup

T-Slot mounting bracket for wall outlets - vertical mounting
50 mm, with separation cup

DIN rail mounting bracket for wall outlets - horizontal mounting
52 mm, without separation cup

DIN rail mounting bracket for wall outlets - horizontal mounting
52 mm, with separation cup

T-Slot mounting bracket for wall outlets - horizontal mounting
55 mm, without separation cup

T-Slot mounting bracket for wall outlets - horizontal mounting
55 mm, with separation cup

DIN rail mounting bracket for wall outlets - horizontal mounting 55 mm,
without separation cup

DIN rail mounting bracket for wall outlets - horizontal mounting 55 mm,
with separation cup

T-Slot mounting bracket for wall outlets - vertical mounting 55 mm,
without separation cup

T-Slot mounting bracket for wall outlets - vertical mounting 55 mm,
with separation cup

Dust protection covers for wall outlets yellow

Dust protection covers for wall outlets blue

Dust protection covers for wall outlets green

Dust protection covers for wall outlets red

Cover plate 80 x 80 mm, pure white, module

Part number

Part number:

1309111102-E

EAN:

4250184105596
