E-DAT Industry RJ45 coupler insert Class EA
Description
- unshielded class EA RJ45 jack for mounting in IP67 flange housings of variants 1, 4, 5 and 14
- use for ingress protection IP65 in combination with Universal test jack
- compliance with class EA according to ISO/IEC 11801, DIN EN 50173-1
- suitable for 10 GBit/s Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE und 4PPoE), HDBaseT, SAT-IP and AV over IP
- especially suitable for consolidation points and cross-connect cabling
- very compact design
- symmetrical structure, can be mounted in any position
Technical Data
General Data
M1
I1
C1
E1
coupler / adapter (FO)
unshielded
Copper
white
32.51 mm
15.6 mm
13.19 mm
1.28 in.
0.614 in.
0.519 in.
on housing
Transmission characteristics
EA
yes
IEEE 802.3af
IEEE 802.3at
yes
IEEE 802.3bt
yes
IEEE 802.3an
Connections/interfaces
RJ45-jack
RJ45-jack
1
1
8P/8C
8P/8C
Electrical characteristics
max. 1 A at 60 °C
max. 20 mOhm
min. 500 MOhm
min. 1000 V DC
Mechanical data
max. 20 N
min. 750
top
Materials and material properties
Spring steel
Ni + Au (nickel-gold)
compliant
Environmental conditions
-40 °C
70 °C
-40 °F
158 °F
-40 °C
70 °C
-40 °F
158 °F
IP2X when plugged in
IPX0 when plugged in
Check US distributor inventory

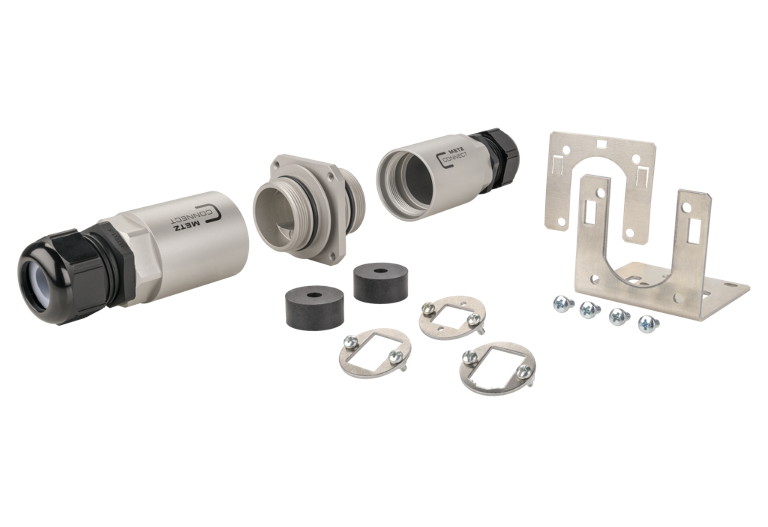

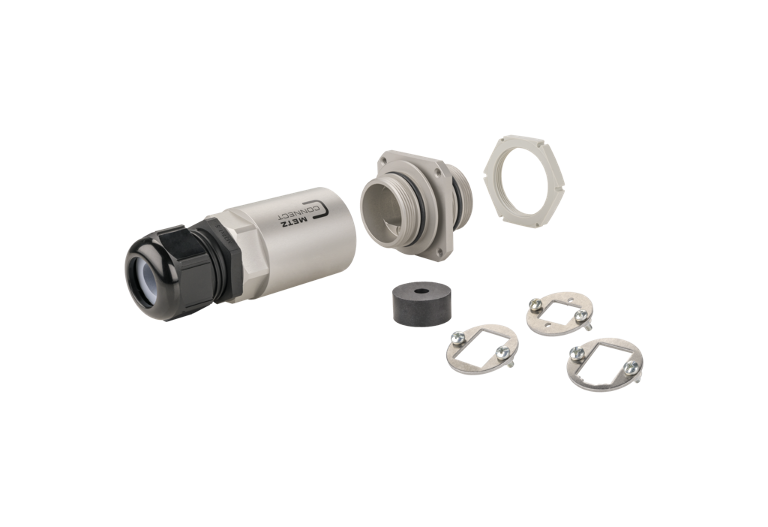

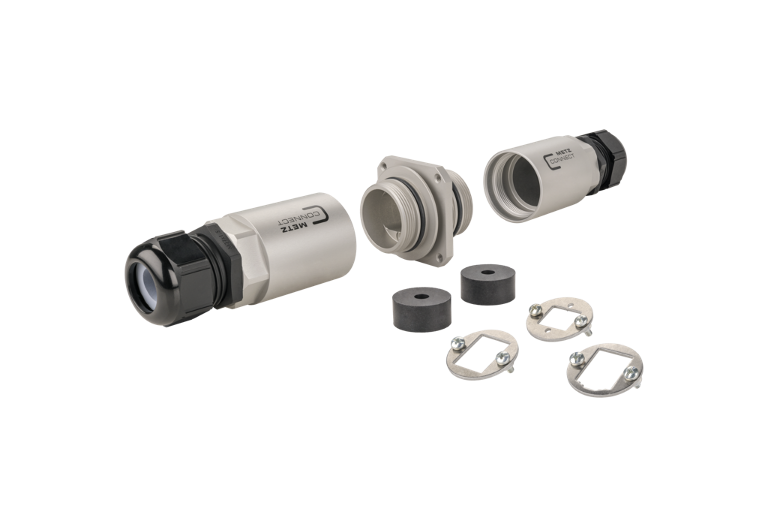

Accessory of
Part number
1401B00810KI
4251394690742
