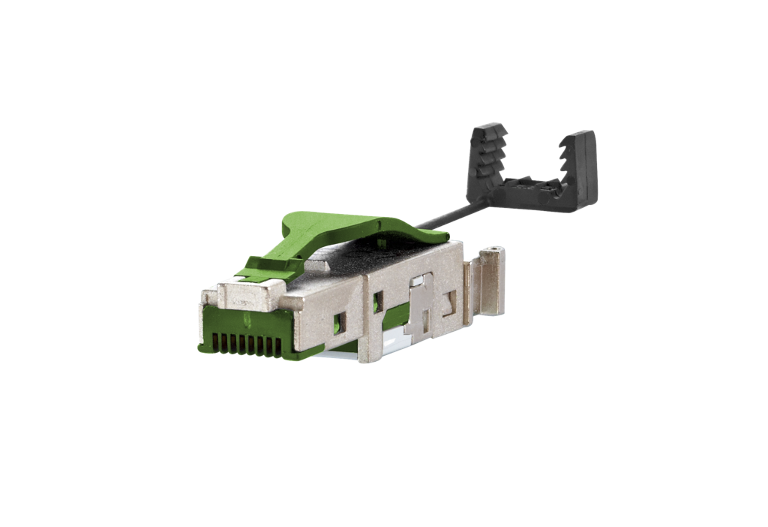

E-DAT Industry RJ45 field plug PROFINET

Description

multi-port Cat.5 plug to be assembled in the field
100 MBit suitable according to IEEE 802.3an
suitable for Remote Powering (PoE and PoE plus) and HDBaseT
4-wire RJ45 plug for AWG 22 to be assembled in the field
connection of AWG 26/7 - 22/7, AWG 26/1 - 22/1 possible
solid copper wire diameter from 0.4 to 0.64 mm
stranded copper wire diameter from 0.48 to 0.76 mm
conductor diameter up to 1.6 mm
cable jacket from 5.5 to 8.5 mm
consists of only 2 parts
easy assembly - connection without special tools
during mounting, the cable is mechanically fastened to the stuffer cap
easy to actuate strain relief
strain relief can be snapped on after assembly as color coding
zinc die-cast housing for industrial use
protected locking hook
can be used as test plug on IP67 protected jacks of variants 1, 4, 5, 6 and 14

Technical Data

General Data

Fields of application:

Industrial Ethernet

Mechanical measurement according to MICE:

Ingress measurement according to MICE:

Climatic measurement according to MICE:

Electromagnetic measurement according to MICE:

Design:

plug

Shielding:

shielded

Transmission technology:

Copper

Wiring:

Profinet

Color:

green

Dimension [Length] (mm):

51.32 mm

Dimension [Width] (mm):

12.9 mm

Dimension [Height] (mm]:

14.7 mm

Dimension [Length] (inch):

2.02 in.

Dimension [Width] (inch):

0.508 in.

Dimension [Height] (inch):

0.579 in.

Field assembly ability:

yes

Marking option:

strain relief

Transmission characteristics

Category (ISO):

Class (ISO/IEC):

Category (TIA):

Remote Powering:

yes

PoE:

IEEE 802.3af

PoE plus:

IEEE 802.3at

HDBaseT:

yes

Transmission rate up to 10 GBit:

IEEE 802.3an

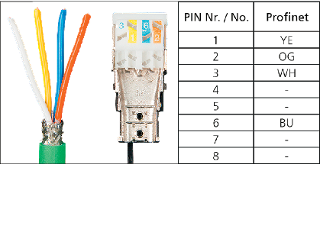

Connections/interfaces

Connector technology interface 1:

IDC-connection

Connector technology interface 2:

RJ45 plug

Number of ports interface 2:

Number of ports interface 2 equipped:

Number of positions/contacts interface 1:

Number of positions/contacts interface 2:

8P/4C

Conductor cross section solid wire [AWG] min-max:

AWG 26/1 - AWG 22/1

Conductor cross section solid wire [mm²] min-max:

0,128 - 0,324 mm²

Conductor diameter solid wire [mm] min-max:

0,409 - 0,643 mm

Conductor diameter solid wire [inch] min-max:

0,016 - 0,025 in.

Conductor cross section stranded wire [AWG] min-max:

AWG 26/7 - AWG 22/7

Conductor cross section stranded wire [mm²] min-max:

0,141 - 0,355 mm²

Conductor diameter stranded wire [mm] min-max:

0,483 - 0,762 mm

Conductor diameter stranded wire [inch] min-max:

0,019 - 0,03 in.

Core diameter (conductor with insulation) [mm max.]:

1.6 mm

Core diameter (conductor with insulation) [inch max.]:

0.063 in.

Cable sheath diameter [mm min.]:

5.5 mm

Cable sheath diameter [mm max.]:

8.50

Cable sheath diameter [inch min.]:

0.217 in.

Cable sheath diameter [inch max.]:

0.335

Cable access/outlet:

180°

Electrical characteristics

Current carrying capacity:

max. 1 A

Contact resistance:

max. 20 mOhm

Insulation resistance:

min. 500 MOhm

Dielectric strength conductor-conductor (secondary) [V DC]:

min. 1000 V DC

Mechanical data

Mounting method:

snap-in function

Insertion and withdrawal force:

max. 30 N

Position/mounting of latch
standard installation position:

top

strain relief:

yes

Materials and material properties

Material - Housing:

GD-Zn

Material - Insulation displacement contacts:

CuSn

Material - Finish of insulation displacement contacts:

Material - Contact:

CuSn

Material - Contact finish:

Ni + Au (nickel-gold)

Material - Latch:

PA UL94 V0

Halogen free:

yes

Material - Finish:

Ni (nickel)

RoHS:

compliant

Environmental conditions

Temperature - Storage °C [min.]:

-40 °C

Temperature - Storage °C [max.]:

70 °C

Temperature - Storage °F [min.]:

-40 °F

Temperature - Storage °F [max.]:

158 °F

Temperature - Operating °C [min.]:

-40 °C

Temperature - Operating °C [max.]:

70 °C

Temperature - Operating °F [min.]:

-40 °F

Temperature - Operating °F [max.]:

158 °F

Check US distributor inventory

Accessories

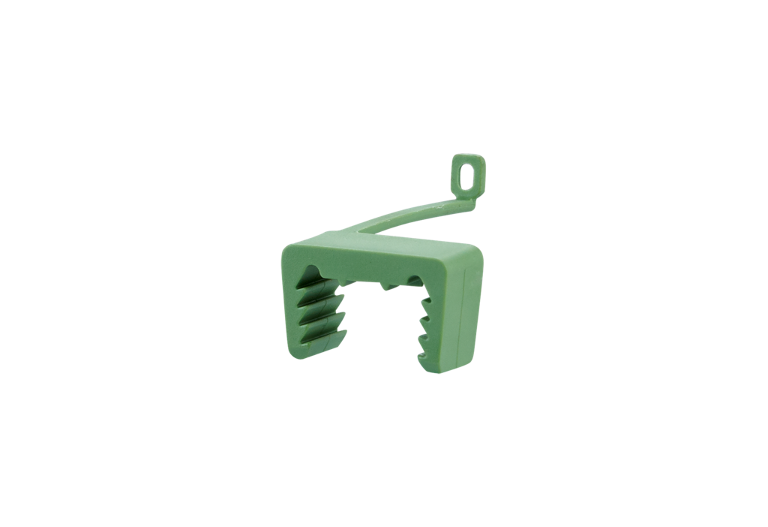

Industry color coding clip field plug orange

Industry color coding clip field plug green

Part number

Part number:

1401405012PI

EAN:

4250184180326

Downloads

Brochure (MCO IP69k – protective housing for DNT outdoor applications)
Mounting note
Data sheet
ePLAN data - Registration required -

Find contact person

Inquiry

Show part in ePLAN data portal
