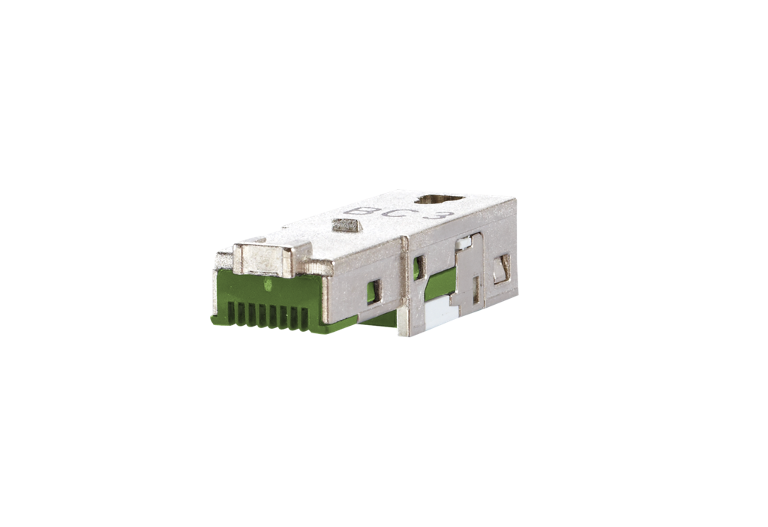

E-DAT Industry RJ45 field plug insert Cat.5 Class D PROFINET

Description

Cat.5 plug to be assembled in the field and mounted in IP67 plug housings of variants 1, 4, 5 and 14
100 MBit suitable according to IEEE 802.3
suitable for Remote Powering (PoE, PoE plus and UPoE) and HDBaseT
4-wire RJ45 plug for AWG 22 to be assembled in the field
connection of AWG 26/7 - 22/7, AWG 26/1 - 22/1 possible
solid copper wire diameter from 0.4 to 0.64 mm
stranded copper wire diameter from 0.48 to 0.76 mm
conductor diameter up to 1.6 mm
cable jacket from 5.5 to 8.5 mm
consists of only 2 parts
easy assembly - connection without special tools
zinc die-cast housing for industrial use
protected locking hook
can be used as test plug at IP67 end of variants 1, 4, 5, 6 and 14

Technical Data

General Data

Fields of application:

Industrial Ethernet

Mechanical measurement according to MICE:

Ingress measurement according to MICE:

Climatic measurement according to MICE:

Electromagnetic measurement according to MICE:

Design:

plug

Shielding:

shielded

Transmission technology:

Copper

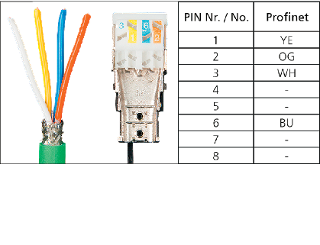

Wiring:

Profinet

Color:

green

Dimension [Length] (mm):

40.22 mm

Dimension [Width] (mm):

12.9 mm

Dimension [Height] (mm]:

9.45 mm

Dimension [Length] (inch):

1.583 in.

Dimension [Width] (inch):

0.508 in.

Dimension [Height] (inch):

0.372 in.

Field assembly ability:

yes

Labeling option:

on housing

Transmission characteristics

Category (ISO):

Class (ISO/IEC):

Category (TIA):

Remote Powering:

yes

PoE:

IEEE 802.3af

PoE plus:

IEEE 802.3at

UPoE:

yes

HDBaseT:

yes

Connections/interfaces

Connector technology interface 1:

IDC-connection

Connector technology interface 2:

RJ45 plug

Number of ports interface 2:

Number of ports interface 2 equipped:

Number of positions/contacts interface 1:

Number of positions/contacts interface 2:

8P/8C

Conductor cross section solid wire [AWG] min-max:

AWG 26/1 - AWG 22/1

Conductor cross section solid wire [mm²] min-max:

0,128 - 0,324 mm²

Conductor diameter solid wire [mm] min-max:

0,409 - 0,643 mm

Conductor diameter solid wire [inch] min-max:

0,016 - 0,025 in.

Conductor cross section stranded wire [AWG] min-max:

AWG 26/7 - AWG 22/7

Conductor cross section stranded wire [mm²] min-max:

0,141 - 0,355 mm²

Conductor diameter stranded wire [mm] min-max:

0,483 - 0,762 mm

Conductor diameter stranded wire [inch] min-max:

0,019 - 0,03 in.

Core diameter (conductor with insulation) [mm max.]:

1.6 mm

Core diameter (conductor with insulation) [inch max.]:

0.063 in.

Cable sheath diameter [mm min.]:

5.5 mm

Cable sheath diameter [mm max.]:

8,50 mm

Cable sheath diameter [inch min.]:

0.217 in.

Cable sheath diameter [inch max.]:

0.335 in.

Cable access/outlet:

180°

Mechanical data

Mounting method:

snap-in function

Materials and material properties

Material - Housing:

GD-Zn

Material - Insulation displacement contacts:

CuSn

Material - Finish of insulation displacement contacts:

Material - Contact:

CuSn

Material - Contact finish:

Ni + Au (nickel-gold)

Material - Latch:

PA UL94 V0

Halogen free:

yes

Material - Finish:

Ni (nickel)

RoHS:

compliant

Environmental conditions

Temperature - Storage °C [min.]:

-40 °C

Temperature - Storage °C [max.]:

70 °C

Temperature - Storage °F [min.]:

-40 °F

Temperature - Storage °F [max.]:

158 °F

Temperature - Operating °C [min.]:

-40 °C

Temperature - Operating °C [max.]:

70 °C

Temperature - Operating °F [min.]:

-40 °F

Temperature - Operating °F [max.]:

158 °F

Check US distributor inventory

Part number

Part number:

1401400810PI

EAN:

4250184180333
