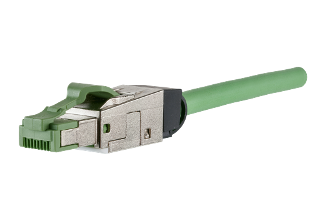

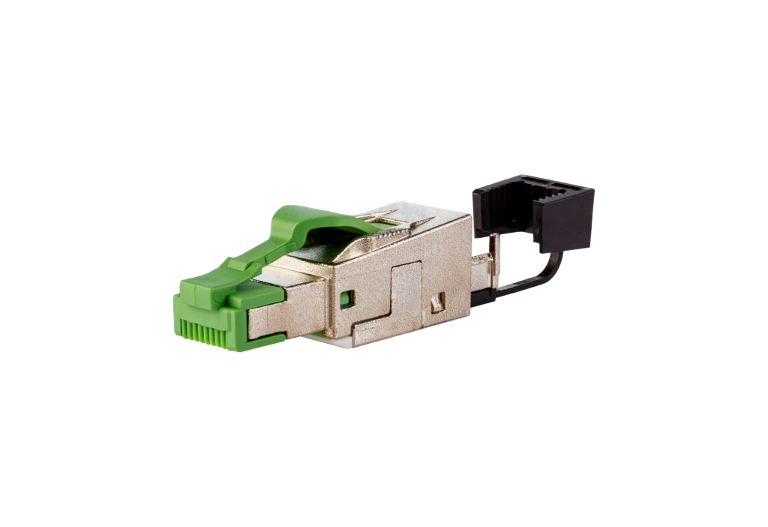

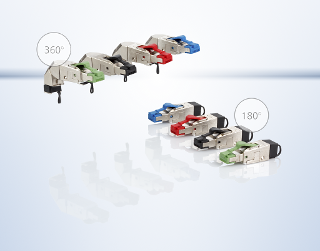

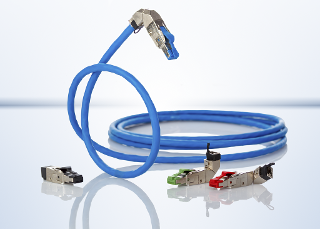

C5 RJ45 field plug pro 2P PROFINET

Description

Cat.5 class D RJ45 plug, 2 pairs, to be assembled in the field

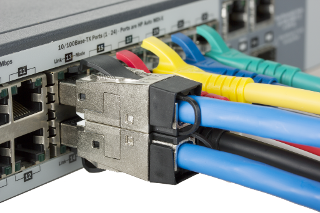

fully shielded and multi-port capable
straight (180°) cable feed
easy assembly - connection without special tools
wire connection: stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm
wire connection: solid wire AWG 26/1 to 22/1, wire diameter from 0.409 to 0.64 mm
transmission characteristics Cat.5 according to ISO/IEC 11801
compliance with class D according to ISO/IEC 11801, DIN EN 50173-1
100 MBit suitable according to IEEE 802.3
suitable for Remote Powering (PoE and PoE plus) and HDBaseT
degree of protection IP20
for cable jacket diameter from 5.5 to 9.5 mm
zinc die-cast housing for industrial use consists of only 2 parts
strain relief by latching clip directly on the stuffer cap
protected locking hook
reconnectable

Technical Data

General Data

Fields of application:

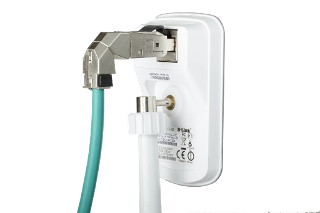

structured building cabling

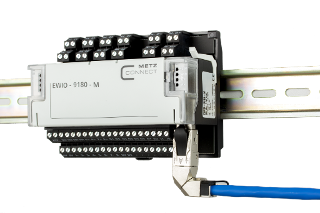

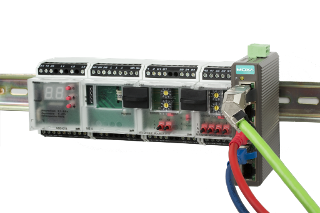

Industrial Ethernet

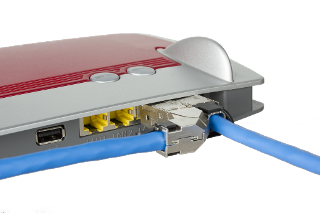

office areas

Mechanical measurement according to MICE:

Ingress measurement according to MICE:

Climatic measurement according to MICE:

Electromagnetic measurement according to MICE:

Design:

plug

Shielding:

shielded

Transmission technology:

Copper

Wiring:

Profinet

Color:

green

Dimension [Length] (mm):

49.8 mm

Dimension [Width] (mm):

13.8 mm

Dimension [Height] (mm]:

9.3 mm

Dimension [Length] (inch):

1.961 in.

Dimension [Width] (inch):

0.543 in.

Dimension [Height] (inch):

0.366 in.

Field assembly ability:

yes

Labeling option:

on housing

Transmission characteristics

Category (ISO):

Class (ISO/IEC):

Category (TIA):

Remote Powering:

yes

PoE:

IEEE 802.3af

PoE plus:

IEEE 802.3at

HDBaseT:

yes

Connections/interfaces

Connector technology interface 1:

IDC-connection

Connector technology interface 2:

RJ45 plug

Number of positions/contacts interface 1:

Number of positions/contacts interface 2:

4P/4C

Conductor cross section solid wire [AWG] min-max:

AWG 26/1 - AWG 22/1

Conductor cross section solid wire [mm²] min-max:

0,128 - 0,324 mm²

Conductor diameter solid wire [mm] min-max:

0,409 - 0,643 mm

Conductor diameter solid wire [inch] min-max:

0,016 - 0,025 in.

Conductor cross section stranded wire [AWG] min-max:

AWG 27/7 - AWG 22/7

Conductor cross section stranded wire [mm²] min-max:

0,111 - 0,355 mm²

Conductor diameter stranded wire [mm] min-max:

0,457 - 0,762 mm

Conductor diameter stranded wire [inch] min-max:

0,018 - 0,03 in.

Cable sheath diameter [mm min.]:

5.5 mm

Cable sheath diameter [mm max.]:

9,5mm

Cable sheath diameter [inch min.]:

0.217 in.

Cable sheath diameter [inch max.]:

0,374 in.

Cable access/outlet:

180°

Reconnectibility:

yes

Shield connection:

flexible contact spring

Electrical characteristics

Current carrying capacity:

max. 1 A

Rated voltage:

max. 50 V

Contact resistance:

max. 20 mOhm

Insulation resistance:

min. 500 MOhm

Dielectric strength conductor-conductor (secondary) [V DC]:

min. 1000 V DC

Mechanical data

Mounting method:

snap-in function

Insertion and withdrawal force:

max. 20 N

Position/mounting of latch
standard installation position:

top

strain relief:

latching clip

Materials and material properties

Material - Housing:

GD-Zn

Material - Contact:

CuSn

Material - Contact finish:

Ni + Au (nickel-gold)

Material - Latch:

Plastics

Halogen free:

yes

Material - Finish:

Ni (nickel)

RoHS:

compliant

Environmental conditions

Temperature - Storage °C [min.]:

-40 °C

Temperature - Storage °C [max.]:

70 °C

Temperature - Storage °F [min.]:

-40 °F

Temperature - Storage °F [max.]:

158 °F

Temperature - Operating °C [min.]:

-40 °C

Temperature - Operating °C [max.]:

70 °C

Temperature - Operating °F [min.]:

-40 °F

Temperature - Operating °F [max.]:

158 °F

Particulate ingress:

IP2X

Liquid ingress/immersion:

IPX0

Check US distributor inventory

Part number

Part number:

130E405032PE

EAN:

4250184189275
