UTP modul 8(8) Cat.6_A Keystone white

Description

unshielded modular termination unit Cat.6_A, RJ45
Cat.6_A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-41, GHMT certified
Cat.6_A component test according to ANSI/TIA-568.2-D and IEC 60512-27-100, GHMT certified
compliance with class E_A according to ISO/IEC 11801, DIN EN 50173-1, GHMT certified
tested: component up to 600 MHz, link up to 800 MHz
suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
easy to install connection of 2 to 4 pair data cables AWG 26/1 to 22/1 (solid wire) and stranded wires with 7 Cu strands AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC)
marking of conductor assignment T568A and T568B
easy and rapid insertion of the wire pairs into the UTP stuffer cap
plastic module housing
mounting without special tool
strain relief possible with cable ties at the module
mounting of colored dust protection covers to the module possible
design: Keystone
cable feed 180°
variants: white and black

Technical Data

General Data

Fields of application:

office areas

Mechanical measurement according to MICE:

Ingress measurement according to MICE:

Climatic measurement according to MICE:

Electromagnetic measurement according to MICE:

Design:

Jack

Shielding:

unshielded

Transmission technology:

Copper

Wiring:

T568A, T568B

Color:

white

Dimension [Length] (mm):

36.55 mm

Dimension [Width] (mm):

14.7 mm

Dimension [Height] (mm]:

19.5 mm

Dimension [Length] (inch):

1.439 in.

Dimension [Width] (inch):

0.579 in.

Dimension [Height] (inch):

0.768 in.

Modularity:

yes

Transmission characteristics

Category (ISO):

6_A

Class (ISO/IEC):

E_A

Category (TIA):

Remote Powering:

yes

PoE:

IEEE 802.3af

PoE plus:

IEEE 802.3at

UPoE:

yes

4PPoE:

IEEE 802.3bt

HDBaseT:

yes

Connections/interfaces

Connector technology interface 1:

IDC-connection

Connector technology interface 2:

RJ45-jack

Number of ports interface 2:

Number of ports interface 2 equipped:

Number of positions/contacts interface 1:

Number of positions/contacts interface 2:

8P/8C

Conductor cross section solid wire [AWG] min-max:

AWG 26/1 - AWG 22/1

Conductor cross section solid wire [mm²] min-max:

0,128 - 0,324 mm²

Conductor diameter solid wire [mm] min-max:

0,409 - 0,643 mm

Conductor diameter solid wire [inch] min-max:

0,016 - 0,025 in.

Conductor cross section stranded wire [AWG] min-max:

AWG 26/7 - AWG 22/7

Conductor cross section stranded wire [mm²] min-max:

0,141 - 0,355 mm²

Conductor diameter stranded wire [mm] min-max:

0,483 - 0,762 mm

Conductor diameter stranded wire [inch] min-max:

0,019 - 0,03 in.

Cable access/outlet:

180°

Electrical characteristics

Current carrying capacity:

max. 1 A

Rated voltage:

max. 50 V

Contact resistance:

max. 20 mOhm

Through resistance:

max. 200 mOhm

Insulation resistance:

min. 500 MOhm

Dielectric strength conductor-conductor (secondary) [V DC]:

min. 1000 V DC

Mechanical data

Cut-out:

Keystone

Mounting method:

snap-in function

Insertion and withdrawal force:

max. 20 N

Life - Number of mating cycles:

min. 750

Position/mounting of latch
standard installation position:

top

strain relief:

with cable tie, attached to module

Materials and material properties

Material - Housing:

PA 6.6 UL94 V0

Material - Contact:

CuSn

Material - Contact finish:

Ni + Au (nickel-gold)

Halogen free:

yes

RoHS:

compliant

Check US distributor inventory

Accessories

Dust protection cover for C6_Amodul pure white

Dust protection cover for C6_Amodul light gray

Dust protection cover for C6_Amodul yellow

Dust protection cover for C6_Amodul blue

Dust protection cover for C6_Amodul green

Dust protection cover for C6_Amodul red

Dust protection cover for C6_Amodul black, (250 pcs)

Dust protection cover for C6_Amodul black

Accessory of

Keystone surface mount housing 2 port pure white, unequipped

Keystone surface mount housing 3 port pure white, unequipped

Keystone surface mount housing 4 port pure white, unequipped

Keystone surface mount housing 6 port pure white, unequipped

Keystone surface mount housing 8 port pure white, unequipped

Keystone surface mount housing 12 port pure white, unequipped

Keystone surface mount housing 16 port pure white, unequipped

Keystone surface mount housing 2x12 port pure white, unequipped

Extension box 1 Port E-DAT Modul Keystone

Extension box 2 port E-DAT modul Keystone

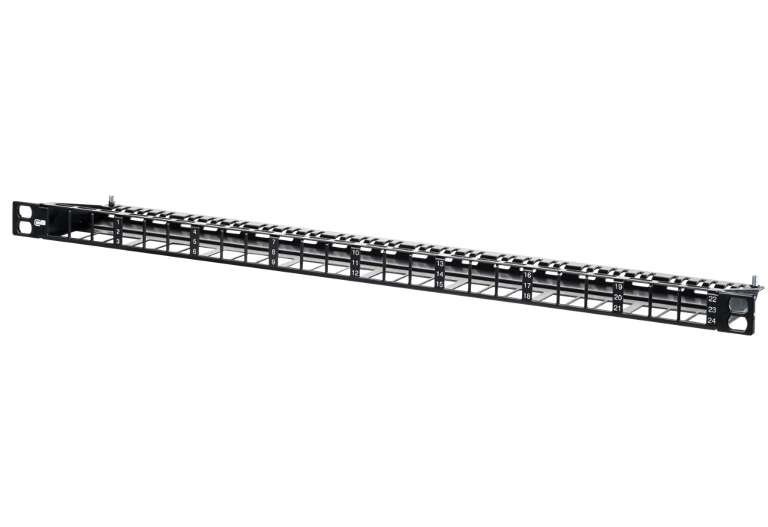

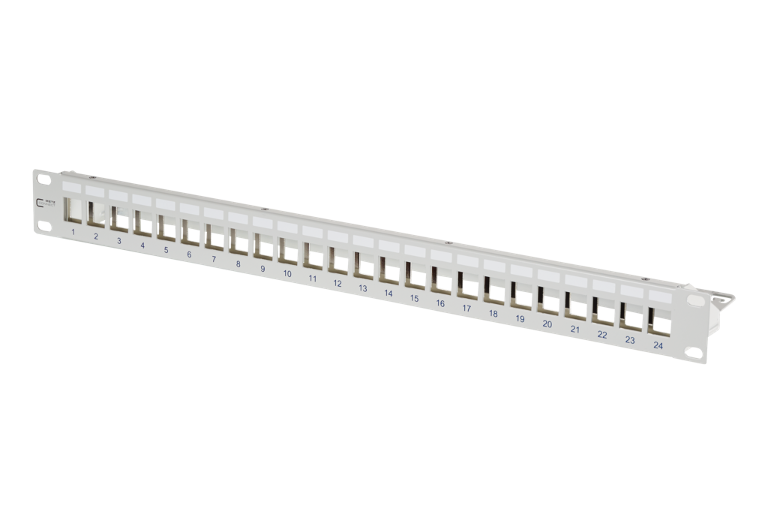

Keystone 19 inch module frame 1RU
24 port light gray unequipped, shielded

Keystone 19 inch module frame 1RU
24 port black unequipped, shielded

Keystone 19 inch module frame 0.5RU 24 port black unequipped

Keystone 19 inch module frame 0.5RU 24 port gray unequipped

Keystone 19 inch module frame 1RU 24 port grey unequipped,
shielded

Keystone 19 inch module frame 1RU 24 port black unequipped,
shielded

Keystone 19 inch module frame 1RU 24 port angeled
grey unequipped, shielded

Keystone 19 inch module frame 1RU 24 port angeled
black unequipped, shielded

SmartConnect Patchpanel 12 port Keystone, unequipped

Keystone REGplus IP20 light gray unequipped

IP44 surface-mounted module housing with hinged cover
and lock, pure white, 2 port unequipped for Keystone

IP44 surface-mounted module housing with hinged cover
and lock, gray, 2 port unequipped for Keystone module

Flush-mounted module housing with hinged cover and
lock, pure white, 2 port unequipped for Keystone

Flush-mounted module housing with hinged cover and
lock, gray, 2 port unequipped for Keystone module

Extension box 1 port E-DAT adapter

Extension box 2 port E-DAT adapter

Keystone 19 inch module frame 1RU 24 port
light gray unequipped, unshielded

Keystone 19 inch module frame 1RU 24 port
black unequipped, unshielded

Keystone 19 inch module frame 1RU 24 port
stainless steel unequipped

Keystone 19 inch module frame 1.5RU 48 port
stainless steel unequipped

Keystone module frame 3RU, 7HP 6 port stainless steel
unequipped

Extension box 1 Port C6_Amodul Keystone

Extension box 2 port C6_Amodul Keystone

DCCS2 subassembly 4 port unequipped - Keystone

MCO IP69k protective housing for outdoor use,
set for exposed installation

MCO IP69k Protective housing for outdoor use,
set with mounting bracket

MCO IP69k Protective housing for outdoor use,
set wall/ housing bushing

Part number

Part number:

130A11KI

EAN:

4251122179402
