E-DAT modul Cat.6_A K jack - Keystone style (12 pcs)

Description

modular termination unit Cat.6_A, RJ45
Cat.6_A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified
compliance with class E_A according to ISO/IEC 11801, DIN EN 50173-1
tested: Link up to 500 MHz
suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT
easy to install connection of 2 to 4 pair data cables
AWG 26/1 to 22/1 (solid wire) and stranded wires with 7 copper conductors AWG 26/7 to 22/7 to insulation displacement connectors (IDC)

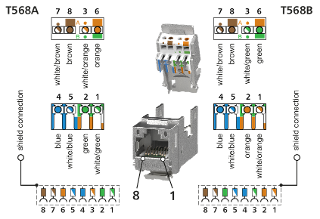

marking of conductor assignment to T568A and T568B
easy and fast insertion of wire pairs in E-DAT modul stuffer cap
module housing made of refined zinc die-casting
mounting without special tools
strain relief with cable tie at the module
mounting version: Keystone
cable feed 180°
delivery in a 12-piece set, not available separately

Technical Data

General Data

Fields of application:

office areas

Mechanical measurement according to MICE:

Ingress measurement according to MICE:

Climatic measurement according to MICE:

Electromagnetic measurement according to MICE:

Design:

Jack

Shielding:

shielded

Transmission technology:

Copper

Wiring:

T568A, T568B

Color:

metallike

Dimension [Length] (mm):

43.85 mm

Dimension [Width] (mm):

14.7 mm

Dimension [Height] (mm]:

22.4 mm

Dimension [Length] (inch):

1.726 in.

Dimension [Width] (inch):

0.579 in.

Dimension [Height] (inch):

0.882 in.

Weight [gram]:

41.3 g

Weight [pound]:

0.0911 lb

Modularity:

yes

Field assembly ability:

yes

Transmission characteristics

Category (ISO):

6_A

Class (ISO/IEC):

E_A

Category (TIA):

Remote Powering:

yes

PoE:

IEEE 802.3af

PoE plus:

IEEE 802.3at

UPoE:

yes

4PPoE:

IEEE 802.3bt

HDBaseT:

yes

Transmission rate up to 10 GBit:

IEEE 802.3an

Connections/interfaces

Connector technology interface 1:

IDC-connection

Connector technology interface 2:

RJ45-jack

Number of ports interface 2:

Number of ports interface 2 equipped:

Number of positions/contacts interface 1:

Number of positions/contacts interface 2:

8P/8C

Conductor cross section solid wire [AWG] min-max:

AWG 26/1 - AWG 22/1

Conductor cross section solid wire [mm²] min-max:

0,128 - 0,324 mm²

Conductor diameter solid wire [mm] min-max:

0,409 - 0,643 mm

Conductor diameter solid wire [inch] min-max:

0,016 - 0,025 in.

Conductor cross section stranded wire [AWG] min-max:

AWG 26/7 - AWG 22/7

Conductor cross section stranded wire [mm²] min-max:

0,141 - 0,355 mm²

Conductor diameter stranded wire [mm] min-max:

0,483 - 0,762 mm

Conductor diameter stranded wire [inch] min-max:

0,019 - 0,03 in.

Cable sheath diameter [mm min.]:

5.5 mm

Cable sheath diameter [mm max.]:

10,00 mm

Cable sheath diameter [inch min.]:

0.197 in.

Cable sheath diameter [inch max.]:

0.394 in.

Cable access/outlet:

180°

Shield connection:

flexible contact spring

Electrical characteristics

Current carrying capacity:

max. 1 A

Rated voltage:

max. 50 V

Contact resistance:

max. 20 mOhm

Through resistance:

max. 200 mOhm

Insulation resistance:

min. 500 MOhm

Dielectric strength conductor-conductor (secondary) [V DC]:

min. 1000 V DC

Mechanical data

Cut-out:

Keystone

Mounting method:

snap-in function

Insertion and withdrawal force:

max. 20 N

Position/mounting of latch
standard installation position:

top

strain relief:

with cable tie, attached to module

Materials and material properties

Material - Housing:

GD-Zn

Material - Contact:

Spring steel

Material - Contact finish:

Ni + Au (nickel-gold)

Material - Contact carriers:

PA 6.6

Halogen free:

yes

Material - Finish:

Ni (nickel)

RoHS:

compliant

Environmental conditions

Temperature - Storage °C [min.]:

-40 °C

Temperature - Storage °C [max.]:

70 °C

Temperature - Storage °F [min.]:

-40 °F

Temperature - Storage °F [max.]:

158 °F

Temperature - Operating °C [min.]:

-40 °C

Temperature - Operating °C [max.]:

70 °C

Temperature - Operating °F [min.]:

-40 °F

Temperature - Operating °F [max.]:

158 °F

Check US distributor inventory

Accessory of

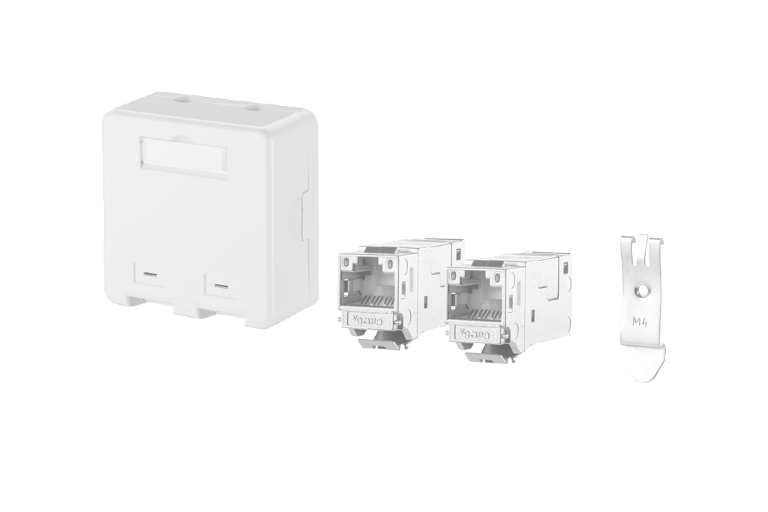

Keystone surface mount housing 2 port pure white, unequipped

Keystone surface mount housing 3 port pure white, unequipped

Keystone surface mount housing 4 port pure white, unequipped

Keystone surface mount housing 6 port pure white, unequipped

Keystone surface mount housing 8 port pure white, unequipped

Keystone surface mount housing 12 port pure white, unequipped

Keystone surface mount housing 16 port pure white, unequipped

Keystone surface mount housing 2x12 port pure white, unequipped

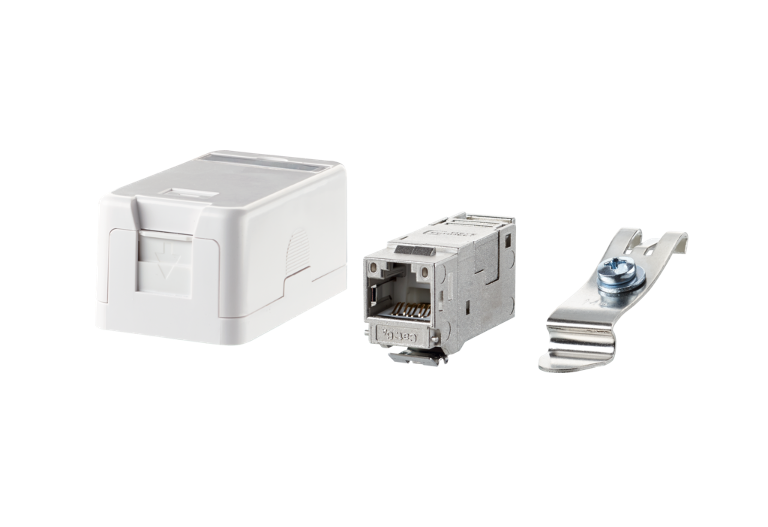

Extension box 1 Port E-DAT Modul Keystone

Extension box 2 port E-DAT modul Keystone

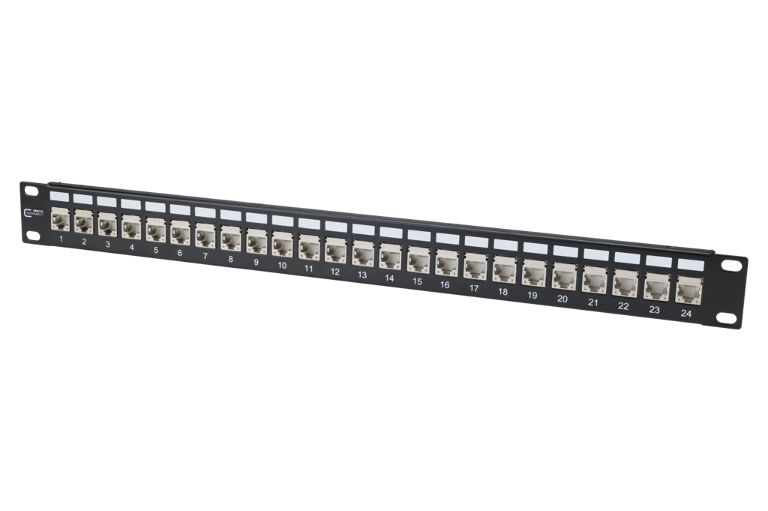

Keystone 19 inch module frame 1RU
