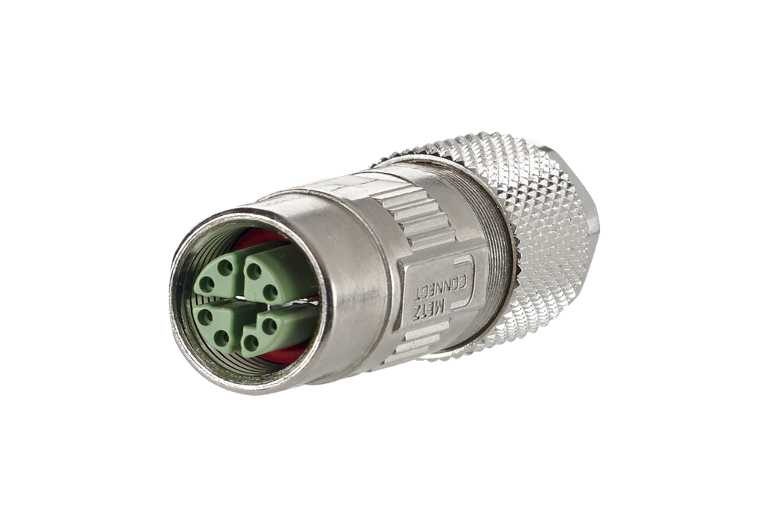

M12 jack, X-coded, IP67, Cat.6A, Ø 6-9.7 mm,
field assembly, straight
Description
- 8-pole M12 jack for field assembly Cat.6A
- per IEC 61076-2-109
- suitable for 10 GBit as per IEEE 802.3an
- AWG 26/1 - 22/1, AWG 26/7 - 22/7 can be connected
- solid copper wire diameter 0.4 to 0.64 mm
- stranded copper wire diameter 0.48 to 0.76 mm
- wire diameter with isolation up to 1.6 mm
- overall cable diameter from 6.0 to 9.7 mm
- jack consists of only two parts
- easy assembly without special tools
- industry-compatible zinc die-cast housing
- suitable for applications in the railway industry according to data sheet
Technical Data
General Data
E2
Jack
shielded
Copper
49 mm
16.8 mm
16.8 mm
1.929 in.
0.661 in.
0.661 in.
yes
on housing
Transmission characteristics
6A
6A
yes
IEEE 802.3af
IEEE 802.3at
yes
IEEE 802.3an
Connections/interfaces
IDC-connection
M12-jack
X-coded
1
1
8
8
AWG 26/1 - AWG 22/1
0,128 - 0,324 mm²
0,409 - 0,643 mm
0,016 - 0,025 in.
AWG 26/7 - AWG 22/7
0,141 - 0,355 mm²
0,483 - 0,762 mm
0,019 - 0,03 in.
0.85 mm
1.6 mm
0.033 in.
0.063 in.
6 mm
9.70
0.236 in.
0.382
straight M12
Electrical characteristics
0.5 A
50 V AC / 60 V DC
max. 5 mOhm
min. 100 MOhm
Mechanical data
screwable
max. 30 N
min. 100
Materials and material properties
GD-Zn
CuZnPb (brass)
Ni + Au (nickel-gold)
CuSn
Sn
PA UL94-V0
yes
Ni (nickel)
compliant
Environmental conditions
-40 °C
85 °C
-40 °F
185 °F
-40 °C
85 °C
-40 °F
185 °F
IP6X when plugged in
IPX5 when plugged in, IPX7 when plugged in
III
2
490 m/s²
Check US distributor inventory
Accessories
Part number
MMF881A315
4250184171089
