M12 jack, D-coded, IP67, Cat.5, Ø 6-9.7 mm,
field assembly, straight

Description

4-pole jack for field assembly Cat.5
M12 connector following to DIN EN 61076-2-101:2012
suitable for 100 MBit Fast Ethernet as per IEEE 802.3an
AWG 26/1 to 22/1, AWG 26/7 to 22/7 can be connected
solid copper wire diameter 0.41 to 0.64 mm
stranded copper wire diameter 0.48 to 0.76 mm
wire diameter with isolation up to 1.6 mm
cable jacket from 6.0 to 9.7 mm
jack consists of only two parts
easy assembly without special tools
industry-compatible zinc die-cast housing
suitable for applications in the railway industry according to data sheet

Technical Data

General Data

Electromagnetic measurement according to MICE:

Design:

Jack

Shielding:

shielded

Transmission technology:

Copper

Dimension [Length] (mm):

49 mm

Dimension [Width] (mm):

16.8 mm

Dimension [Height] (mm]:

16.8 mm

Dimension [Length] (inch):

1.929 in.

Dimension [Width] (inch):

0.661 in.

Dimension [Height] (inch):

0.661 in.

Field assembly ability:

yes

Labeling option:

on housing

Transmission characteristics

Category (ISO):

Category (TIA):

Remote Powering:

yes

PoE:

IEEE 802.3af

PoE plus:

IEEE 802.3at

Connections/interfaces

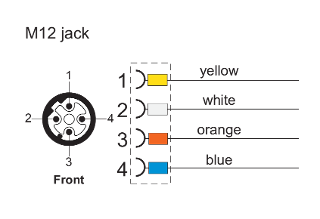

Connector technology interface 1:

IDC-connection

Connector technology interface 2:

M12-jack

Coding interface 2:

D-coded

Number of ports interface 2:

Number of ports interface 2 equipped:

Number of positions/contacts interface 1:

Number of positions/contacts interface 2:

Conductor cross section solid wire [AWG] min-max:

AWG 26/1 - AWG 22/1

Conductor cross section solid wire [mm²] min-max:

0,128 - 0,324 mm²

Conductor diameter solid wire [mm] min-max:

0,409 - 0,643 mm

Conductor diameter solid wire [inch] min-max:

0,016 - 0,025 in.

Conductor cross section stranded wire [AWG] min-max:

AWG 26/7 - AWG 22/7

Conductor cross section stranded wire [mm²] min-max:

0,141 - 0,355 mm²

Conductor diameter stranded wire [mm] min-max:

0,483 - 0,762 mm

Conductor diameter stranded wire [inch] min-max:

0,019 - 0,03 in.

Core diameter (conductor with insulation) [mm min.]:

0.85 mm

Core diameter (conductor with insulation) [mm max.]:

1.6 mm

Core diameter (conductor with insulation) [inch min.]:

0.033 in.

Core diameter (conductor with insulation) [inch max.]:

0.063 in.

Cable sheath diameter [mm min.]:

6 mm

Cable sheath diameter [mm max.]:

9.7 mm

Cable sheath diameter [inch min.]:

0.236 in.

Cable sheath diameter [inch max.]:

0.382 in.

Cable access/outlet:

straight M12

Electrical characteristics

Rated voltage:

48 V AC / 60 V DC

Insulation resistance:

min. 100 MOhm

Mechanical data

Mounting method:

screwable

Insertion and withdrawal force:

10 N

Life - Number of mating cycles:

min. 100

Materials and material properties

Material - Housing:

GD-Zn

Material - Contact:

CuZnPb (brass)

Material - Contact finish:

Ni + Au (nickel-gold)

Material - Shield:

CuSn

Material - Shield finish:

Material - Stuffer cap:

PA UL94-V0

Material - Finish:

Ni (nickel)

RoHS:

compliant

Environmental conditions

Temperature - Operating °C [min.]:

-40 °C

Temperature - Operating °C [max.]:

85 °C

Temperature - Operating °F [min.]:

-40 °F

Temperature - Operating °F [max.]:

185 °F

Overvoltage category [1]:

Degree of pollution [1]:
