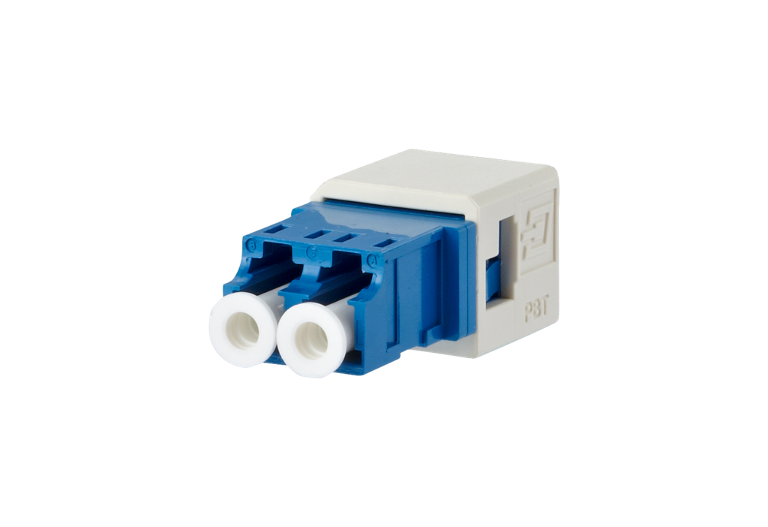

OpDAT Industry LC-D SM adapter insert
Description
- LC-D adapter
- slotted ceramics sleeve for single mode applications
- slotted metal sleeve (Ph-Br) for multi mode applications
- conformity with relevant IEC framework specifications with regard to testing conditions and connector compatibility to connector version LC to IEC 61754-20
- compliance with EN 50173-1 or ISO/IEC 24702 with regard to the limits for insertion loss
- flame-retardant and halogen-free plastic housing
- flame-retardant and halogen-free dust cover
- in flange or wall outlet of var. 1 and 4 - suitable for integration
- variant 14 only available in sets
- service life: min. 500 plug-in cycles
- operating temperature -40 °C to +70 °C
- variants: blue (SM), beige (MM)
Check US distributor inventory
Accessory of
Part number
1402L00820MI
4250184115908
Downloads
- Brochure (MCO IP69k – protective housing for DNT outdoor applications)
- 3D-Data - Registration required -
- Mounting note
- Data sheet
