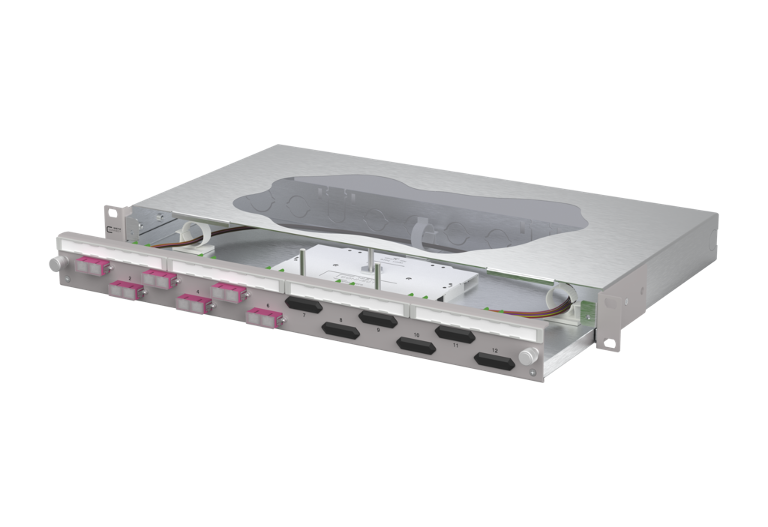

OpDAT slide2 patch panel splice
6xSC-D OM4
Description
- 19-inch, 1U patch panel with pull-out drawer
- Equipped with 6xSC-D couplers and 12xSC-D OM4 pigtails
- Offset coupler arrangement for easy handling
- Pigtails inserted and set down in standard splice cassette with crimp splice holders
- Pigtails cleaned and inserted into coupler
- color coding according to IEC 60304
- Tool-free metal bayonet catch for locking the drawer
- Drawer can be tilted and completely removed for easier installation (drawer stop)
- Depth adjustable by 30 mm
- Front panel with labelling field
- Front panel powder-coated in gray RAL 7035
- Several possibilities for cable entry on the back: 6xM20; 2xM25; 2xVIK installation cut-outs
Check US distributor inventory
Accessories
Part number
150467BB06-F
4251394678306
