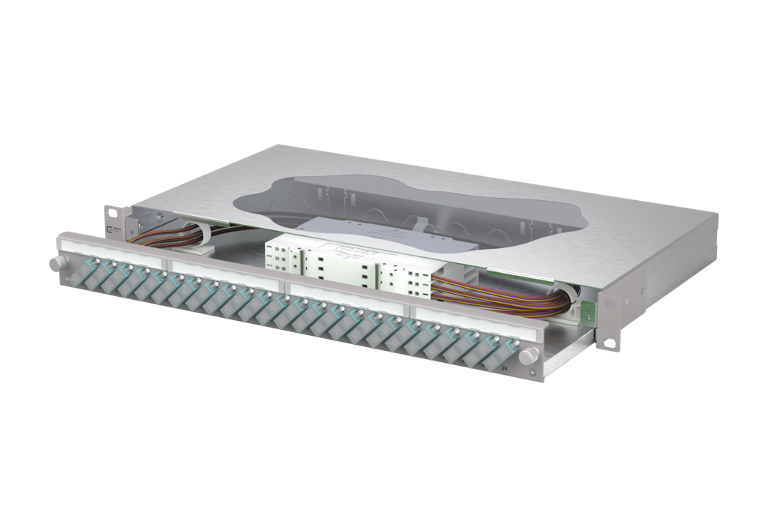

OpDAT slide2 patch panel splice
24xSC-D OM3
Description
- 19-inch, 1U patch panel with pull-out drawer
- Equipped with 24xSC-D couplers and 48xSC-D OM3 pigtails
- Inclined coupling arrangement
- Pigtails inserted and set down in standard splice cassette with crimp splice holders
- Pigtails cleaned and inserted into coupler
- color coding according to IEC 60304
- Tool-free metal bayonet catch for locking the drawer
- Drawer can be tilted and completely removed for easier installation (drawer stop)
- Depth adjustable by 30 mm
- Front panel with labelling field
- Front panel powder-coated in gray RAL 7035
- Several possibilities for cable entry on the back: 6xM20; 2xM25; 2xVIK installation cut-outs
Check US distributor inventory
Accessories
Part number
150465BA24-E
4251394678276
