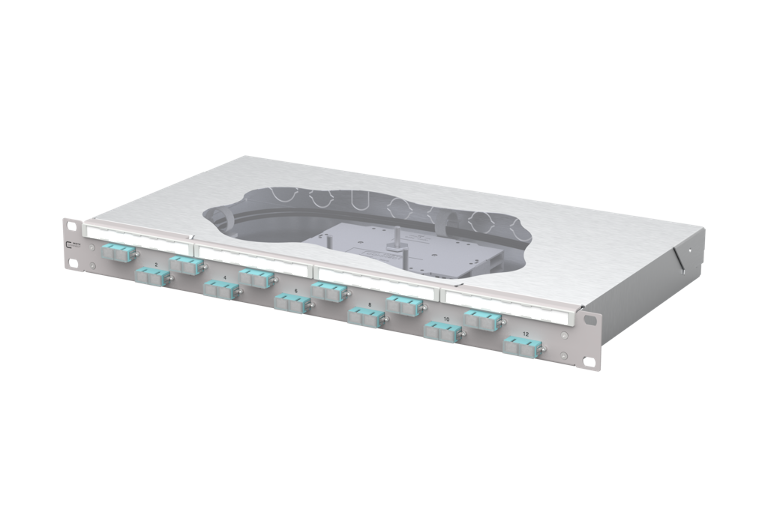

OpDAT fix2 patch panel splice
12xSC-D OM3
Description
- 19-inch, 1U patch panel for fixed installation
- Equipped with 12xSC-D couplers and 24xSC-D OM3 pigtails
- Offset coupler arrangement for easy handling
- Pigtails inserted and set down in standard splice cassette with crimp splice holders
- Pigtail visually inspected and inserted into couplers
- Colour coding according to IEC 60304
- Front panel with labelling field
- Front panel powder-coated in gray RAL 7035
- Tool-free opening of the cover
- Several possibilities for cable entry on the back: 6xM20; 2xM25; 2xVIK installation cut-outs
Check US distributor inventory
Accessories
Part number
150455BA12-F
4251394677651
