E-DAT Industry RJ45 plug insert Cat.6 Class EA
Description
- Cat.6 class EA plug to be mounted in IP67 plug housings of variants 1, 4, 5 and 14
- compliance with class EA according to ISO/IEC 11801, DIN EN 50173-1
- suitable for 10 GBit Ethernet(IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT
- connection of AWG 27/7 - 24/7 and AWG 24/1 possible
- solid copper wire diameter from 0.36 to 0.51 mm
- solid copper wire diameter from 0.46 to 0.61 mm
- conductor diameter 0.85 mm to 1.05 mm
- cable jacket up to 7.3 mm
- without lock lever
- connection of crimp contacts and shield in one step using crimping tool
- color may differ from figure
Check US distributor inventory

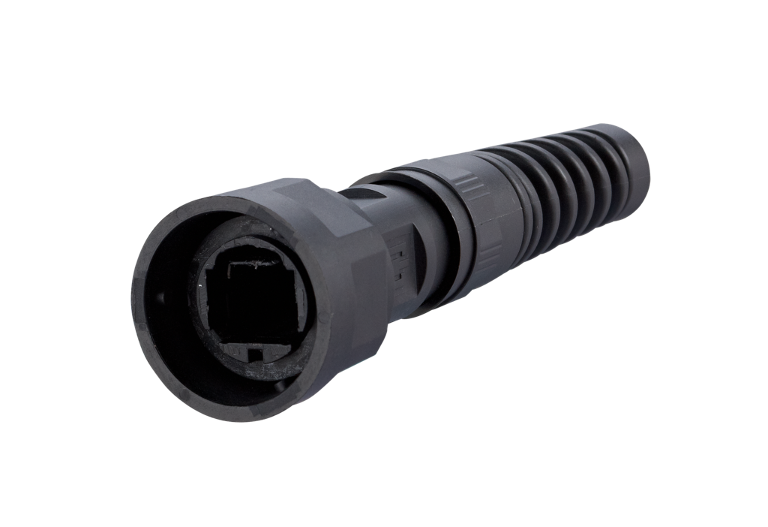

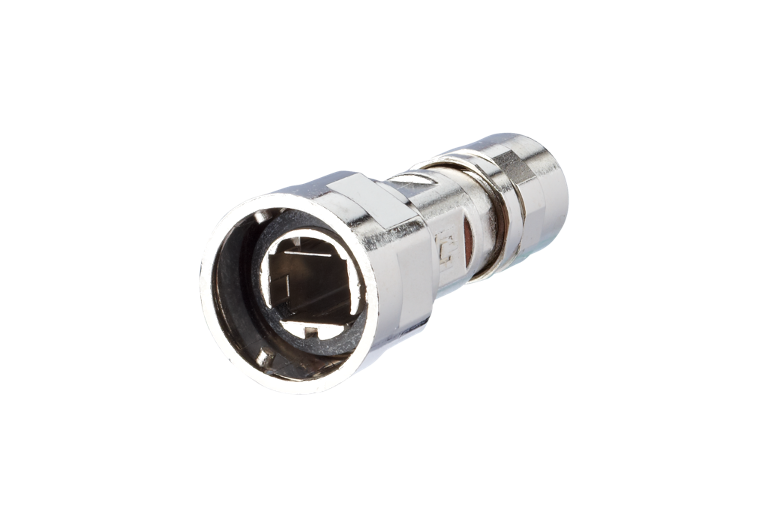

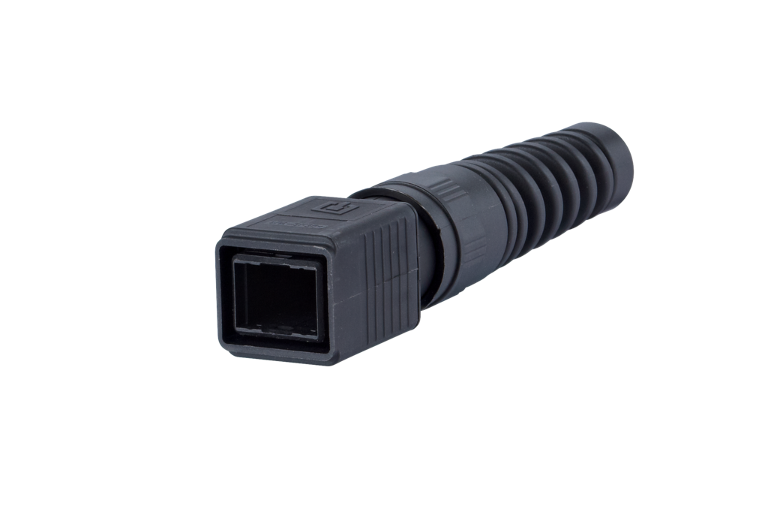

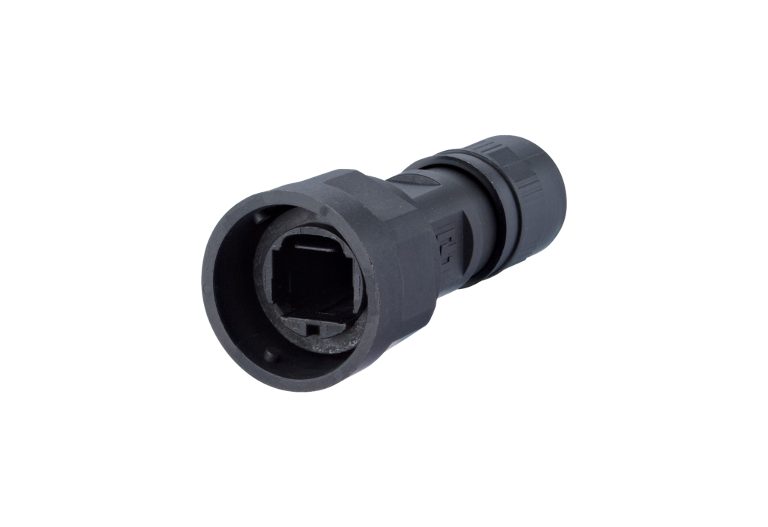

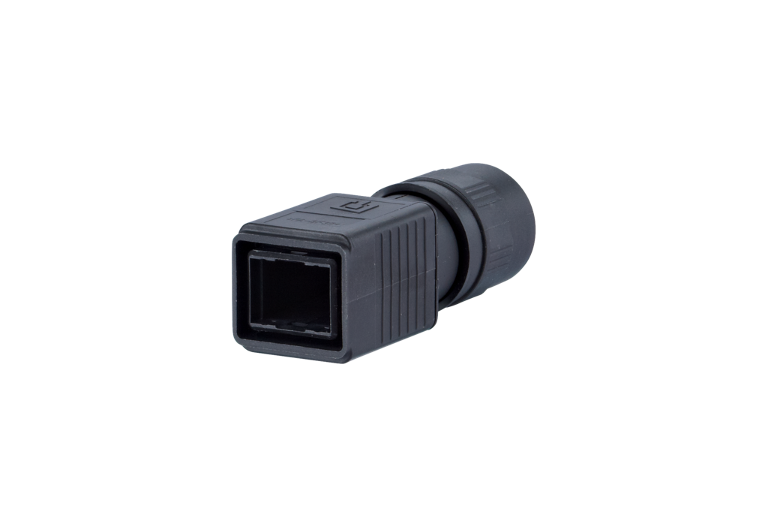

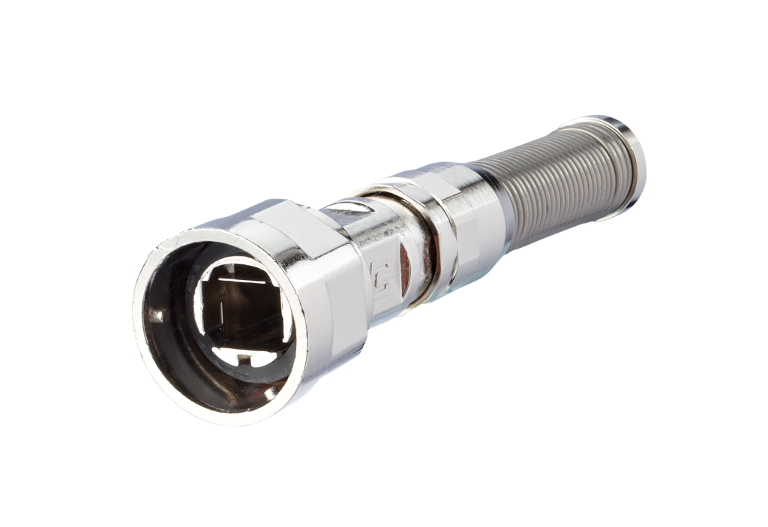

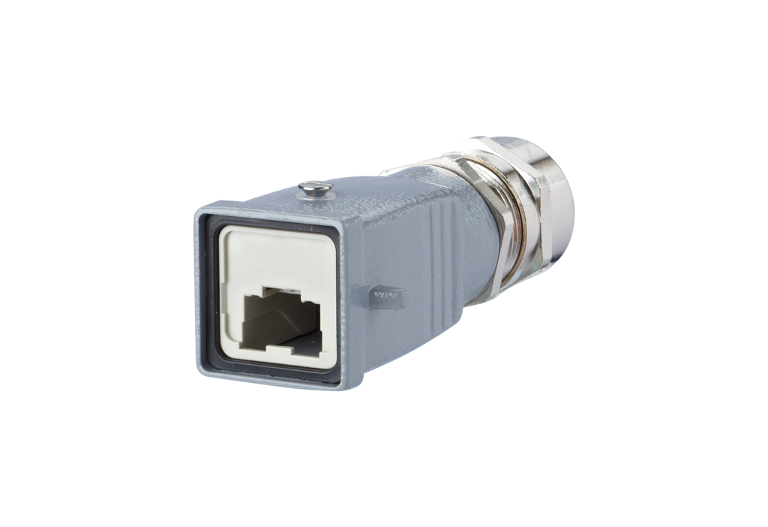

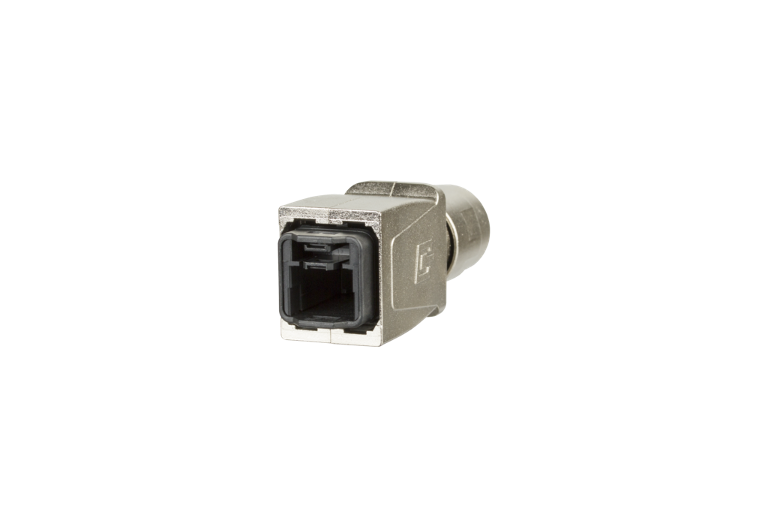

Accessories
Accessory of
Part number
1401500810-I
4250184114109
Downloads
- 3D-Data - Registration required -
- Product information
- Mounting note
- Data sheet
