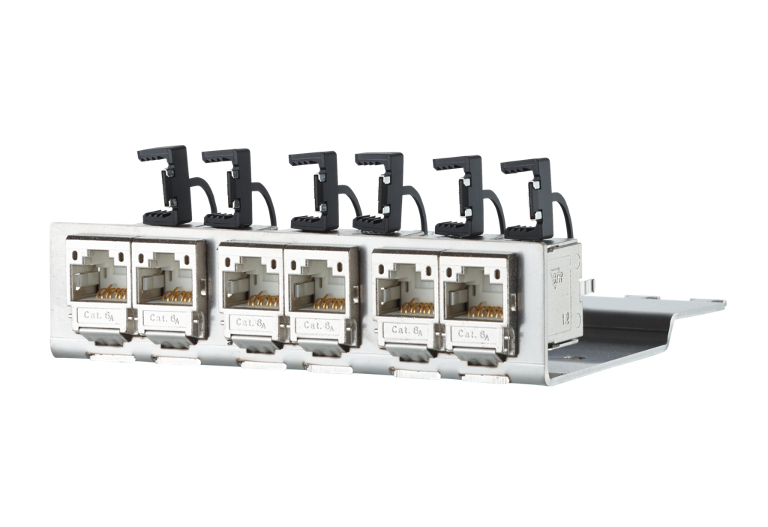

C6Amodul 6 port 180°M for 1RU
Description
- module frame with 6 individual C6Amodul 180°
- certified to GHMT Cat.6A re-embedded PVP
- Cat.6A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified
- compliance with class EA up to 500 MHz according to ISO/IEC 11801, DIN EN 50173-1
- tested: component up to 600 MHz, link up to 800 MHz
- suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT

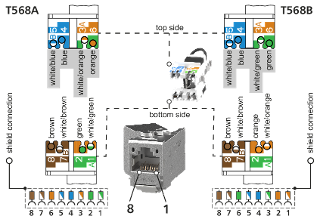

- connection of data lines AWG 26/1 to 22/1 (solid wire) and AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC)
- migration to 25G-systems without special tools
- strain relief directly snapped on to stuffer cap of C6Amodul

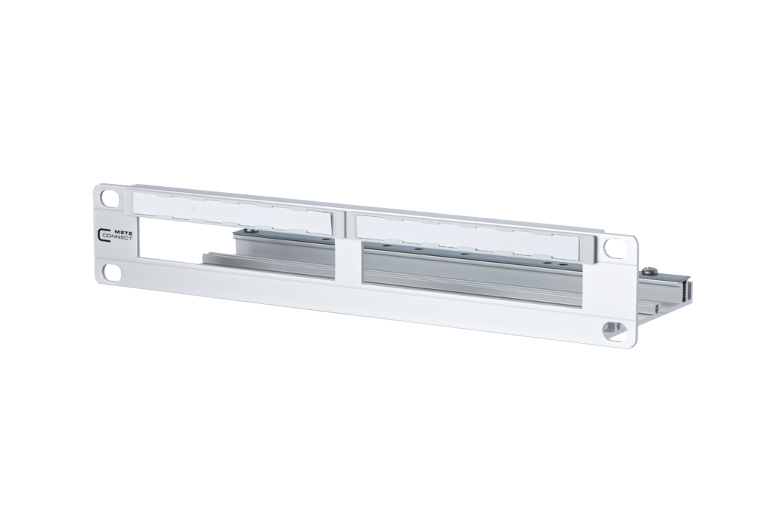

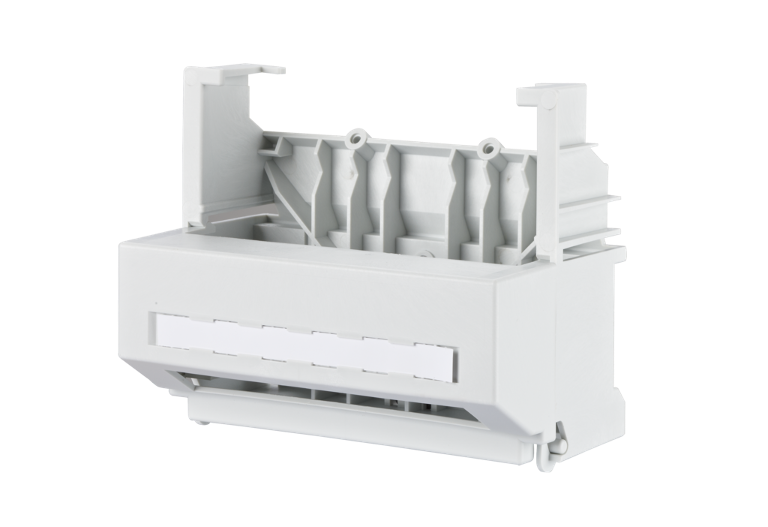

- for mounting in surface-mounted housing, top hat rail adapter or 1RU module frame
- optional strain relief using cable ties
- grounding bolt M6 x 10 with nut and lock washer
Check US distributor inventory
Accessories
Accessory of
Part number
130B11P2-E
4250184131762
Downloads
- Data sheet
- ePLAN data - Registration required -
- Brochure (Digital Ceiling - Tertiary cabling in the ceiling)
- 3D-Data - Registration required -
- Certificate (GHMT PVP - C6Amodul - Cat.6A Certificate)
- Mounting note (Modulare Patchfelder)
- Mounting note (130B11-E, 130B21-E)
