DCCS2 C6A PL23
Description

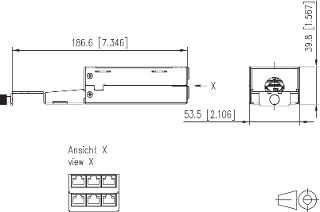

- DCCS2 class EA Permanent Link consisting of two 6-port RJ45 subassemblies connected to a 24-pair installation cable AWG23/1
- Cat.6A component test according to ISO/IEC 11801, DIN EN 50173-1, ANSI/TIA-568.2-D and IEC 60603-7-51, GHMT certified
- compliance with class EA up to 500 MHz according to ISO/IEC 11801, DIN EN 50173-1, GHMT certified
- tested: components up to 600 MHz, link up to 800 MHz
- Suitable for 10GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus and UPoE) and HDBaseT. Fulfils the requirements of class EA with a maximum transmission length of 60 m instead of 90 m in the permanent link.
- Alien Next optimized, shielded jacks
- the locking levers of patch cords connected to DCCS2 subassemblies show upwards and are easy to handle at any time
- solid and refined assembly housing
- shield tap for installation cable separate from strain relief
- cable diameter less then 19 mm
- short links with less then 5 m are also available
- delivery with serial number and 6 Permanent Link measurement reports
- mounting version: DCCS2
- available in prefabricated, customer specific lengths - replace the xxx in the part number by the length - examples: 050 = 5.0 m; 100 = 10.0 m; 200 = 20.0 m; 800 = 80.0 m
- maximum length 80 m
Check US distributor inventory
Accessories
Part number
130D2CL2XXXE
