What is the difference between the MFRk-E08 and MFRk-E08 F?
F stands for "flink" (quick), refers to the recovery time, but this only applies to the "Making-pulse interval" function, all other functions have the normal recovery time.
MFRk-E08 230 V AC, 24 V AC/DC
Description

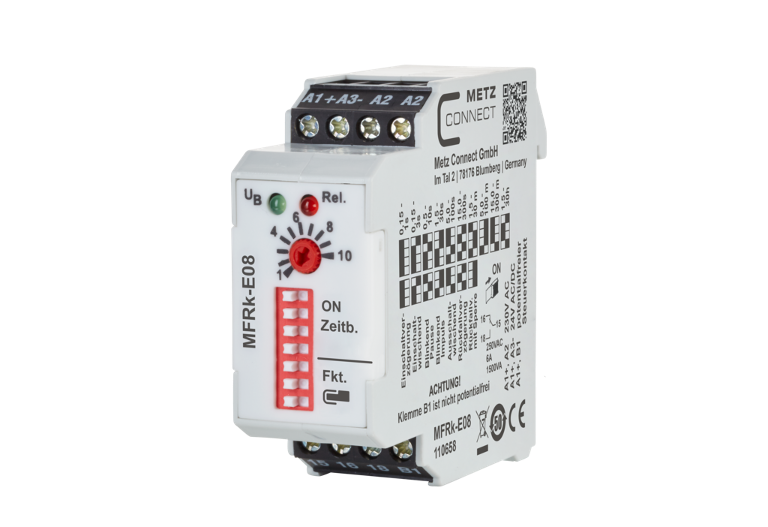

Multifunctional timer relay with incorporated coding switches to set functions. The time is set by means of a linear potentiometer on a relative scale.
- Connection with screw type terminal blocks
- Ten adjustable time ranges from 0.05 s to 30 h
- Seven selectable functions

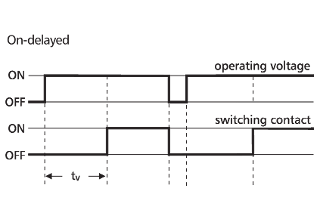

- 1. On-delayed

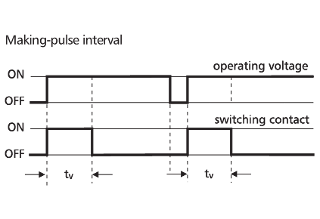

- 2. Making-pulse interval

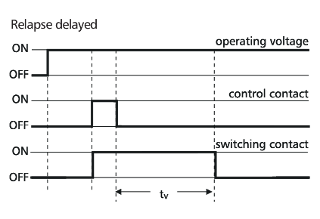

- 3. Off-delay

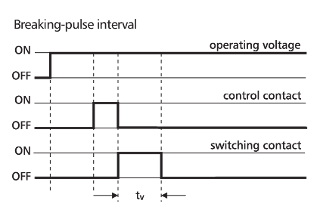

- 4. Breaking-pulse interval

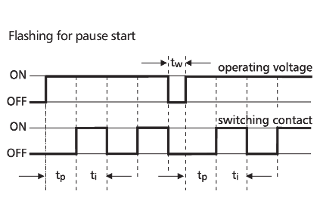

- 5. Flashing for pause start

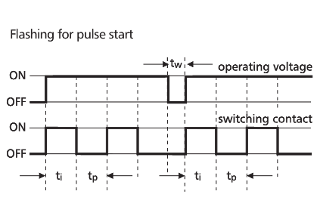

- 6. Flashing for pulse start

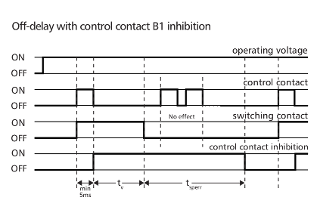

- 7. Off-delay with control contact B1 inhibition
Technical Data
General Data
230 V AC / 24 V AC/DC
1 x changeover contact (SPDT)
AgSn02
250 V
6 A
1200 cycles/h
60 ms
50 ms
100 ms
1 x 107
1 x 105
Green and red LED
22.5 x 61.3 x 60 mm
70 g
-10 °C to 55 °C
-25 °C bis 70 °C
IP40 / IP 20
Check US distributor inventory
Part number
110658
4250184122906
Downloads
- 3D-Data - Registration required -
- Mounting note (110658, 11065870, 110658412014, 11065841201470)
- Mounting note (Safety Instructions multilingual )
- Data sheet
- ePLAN data - Registration required -
FAQ's
