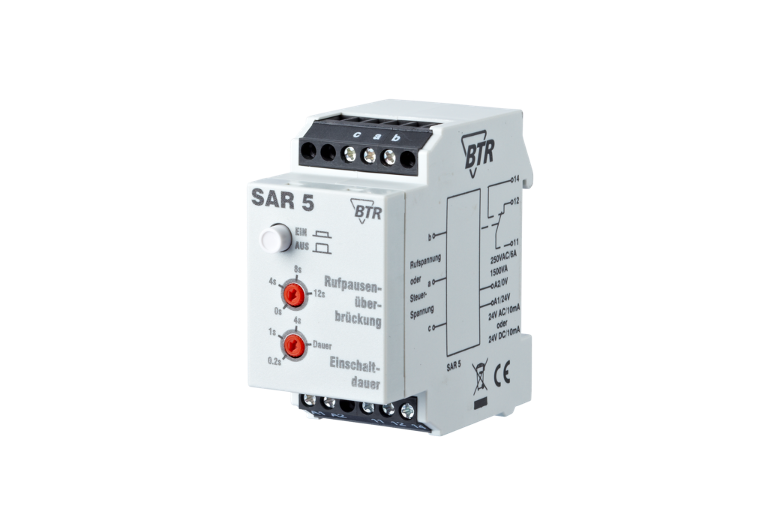

SAR 5
Description
The SAR4 and SAR5 can be connected to a telecommunications access line or separate control voltage source (AC/DC) and are activated by the call voltage or control voltage. The SAR reacts either only to the call voltage or to the control voltage. It activates an external signal emitter with its own or separate power supply (e.g. bell, horn, or lamp).
Technical Data
General Data
230 V AC / 50 Hz
24 V DC / 10 mA
24 V AC / 10 mA
32 to 80 V AC
23 to 54 Hz
10 kOhm at 75 V, 25 Hz
less than 0.5 dB
more than 5 MOhm at 100 V
5 to 40 V
5 to 40 V, 50 Hz
approx. 6 kOhm
max. 8 A
max. 6 A
max. 250 V AC
1500 VA (AC)30 W (less than 30 V DC)60 W (greater than 30 V DC)
0 to 12 s
0.25 to 12 s
acc. to EN 60950
35 x 69.3 x 60 mm
-5 °C to + 55 °C
-20 °C to + 70 °C
Check US distributor inventory
Part number
130284-I
4250184116660
