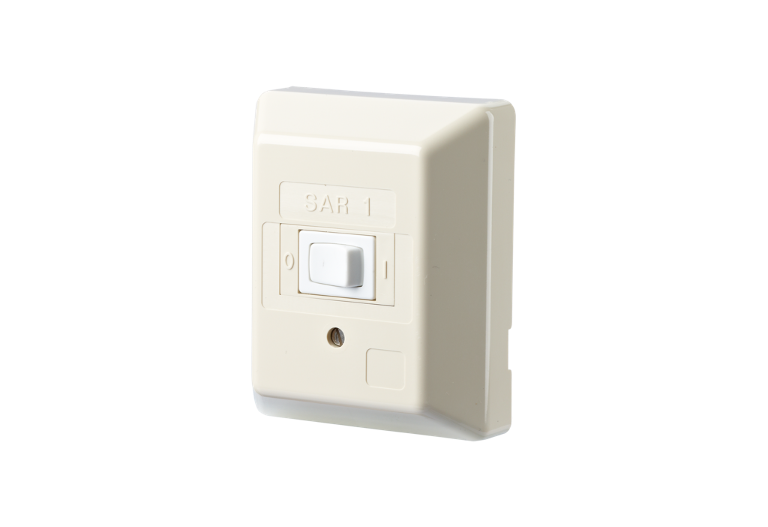

SAR 1
Description
The SAR 1 is connected to a telecommunications line and controlled by the call voltage.The SAR 1 only reacts to the call voltage, not to dialing pulses (IWV). It activates an external signal emitter with its own or separate power supply (e.g. bell, horn, or lamp) by means of a contact.The incorporated switch can be used to activate and deactivate external signals.
Technical Data
General Data
32 to 80 V AC
23 to 54 Hz
10 kOhm at 75 V, 25 Hz
less than 0.5 dB
more than 5 MOhm at 100 V
max. 8 A
max. 6 A
max. 250 V AC
2000 VA (AC)30 W (less than 30 V DC)60 W (greater than 30 V DC)
acc. to EN 60950
65 x 80 x 27 mm
-5 °C to + 55 °C
-25 °C to + 70 °C
Check US distributor inventory
Part number
130280-I
4250184101673
