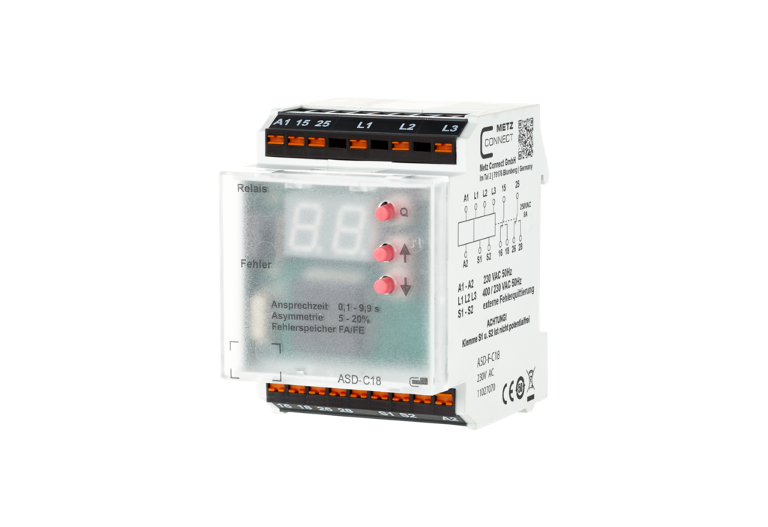

ASD-F-C18
Description
Monitoring relay for monitoring asymmetry, phase failure, phase sequence errors, overvoltage and undervoltage of a three-phase connection. With external fault acknowledgement.
- Connection with spring clamp terminal blocks (push-in)
- Adjustable response delay

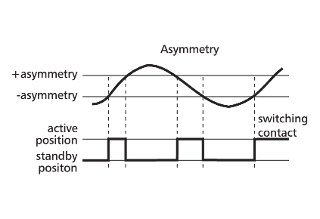

- Adjustable asymmetry
- Selectable fault memory
- 7-segment display
Technical Data
General Data
230 V AC, 50 Hz
less than 15 mA
0.1 s to 9.9 s, adjustable
5 % to 20 %, adjustable
20 %
3 x 230/400 V AC, 50 Hz
2 x changeover contacts (DPDT)
max. 250 V AC
8 A
3 x 107 switching cycles
1 x 105 switching cycles
50 x 69.3 x 60 mm
200 g
-5 °C to 55 °C
-20 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Part number
11027070
4251394620466
Downloads
- 3D-Data - Registration required -
- Mounting note
- Data sheet
