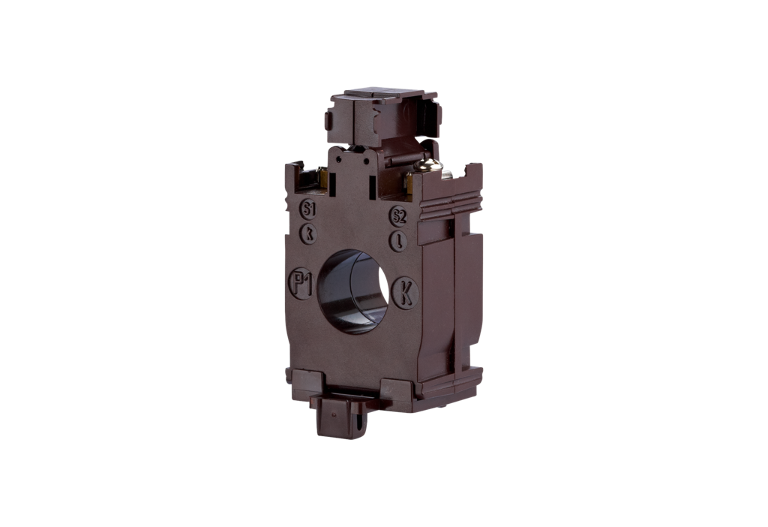

Current Converter TAmini 100/5 A
Description
The current converter TAmini is used for measuring currents that are beyond the measuring range of the directly connected measuring instrument.
- small current converter for mounting on 35 mm DIN rail
- Hole diameter: 21 mm, suitable for cables and rail 20 x 5 mm
Technical Data
General Data
100 A / 5 A
50 Hz
47 to 63 Hz
5 A
60 x nominal current smaller than 1 s
less than 3 VA
UL-94 V0
30 x 44 x 65 mm
-25 °C to +50 °C
-40 °C to +85 °C
Check US distributor inventory
Accessory of
Part number
1101810508
4250184120476
