What is the difference between the RM21 and RM3?
The position of the output contact (socket), the RM21 is 2 storeys and the RM3 is 3 storeys.

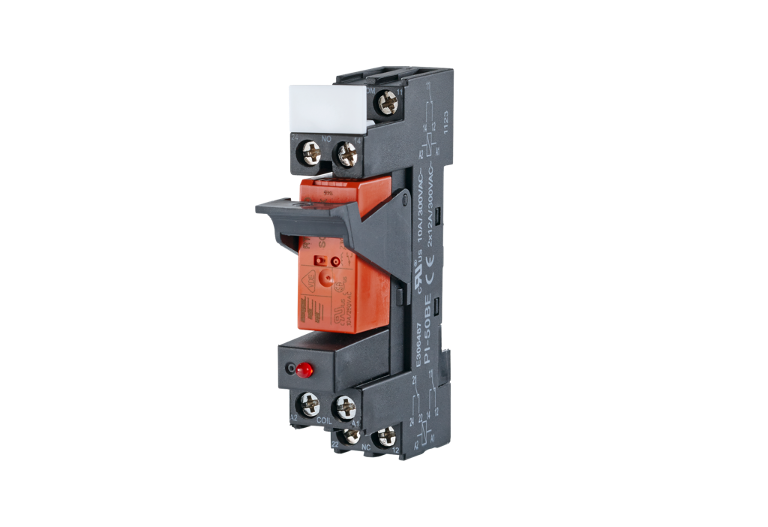

RM21 230 V AC
Description
Relay module for large loads such as lamp loads, motors and drives for electrical isolation between logic and load.

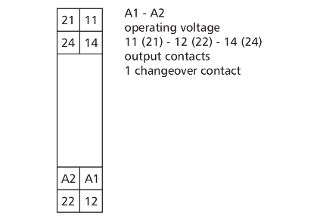

- Connection with screw-type terminals
- Socket 2 storeys
- Pluggable relay
- With labeling field, socket, bracket and LED-module
- Variants: 24 V AC or 230 V AC
Technical Data
General Data
24 V or 230 V AC
69 mA
7 mA

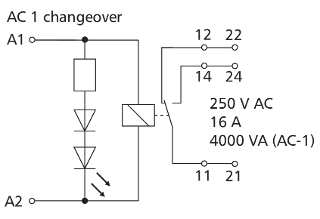

1 changeover contact
AgNi 90/10
250 V AC
16 A *
30 A
360 cycles/h
10 x 106 switching cycles
1 x 105 switching cycles
2 x 2.5 mm2
Red LED

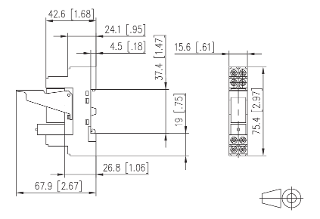

15.5 x 75 x 65 mm
95 g
-20 °C to 55 °C
-25 °C to 70 °C
For currents higher than 12 A (16 A), terminals 11-21, 12-22 and 14-24 on the socket must be bridged to distribute the current to both contact paths.
Check US distributor inventory
Part number
11051105
4251394625614
