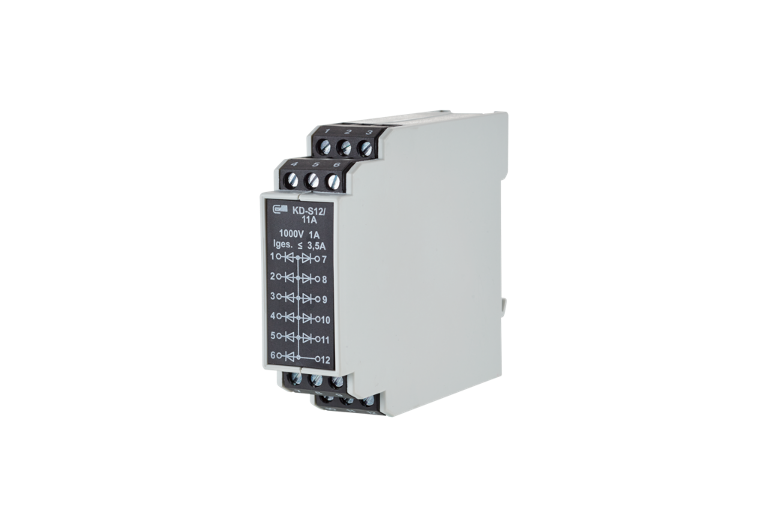

KD-S12/11A
Description

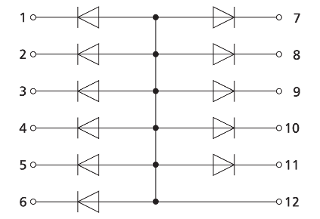

The diode module is equipped with 11 diodes. The anodes of the diodes are all connected to each other. The module is used for failure indication systems (lamp tests).
- common anode

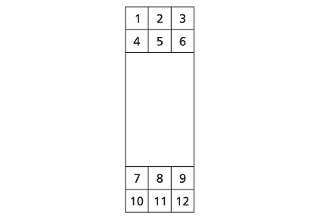

- Connection with screw-type terminals
Technical Data
General Data
1000 V
250 V AC/DC
1 A
1.1 V at 1 A
less than or equal to 3.2 A
30 µA at 75 °C
22.5 x 75 x 95 mm
20 g
-10 °C to +50 °C
-25 °C to +70 °C
IP40 / IP20
Check US distributor inventory
Part number
110628
4250184122753
Downloads
- 3D-Data - Registration required -
- Data sheet
- ePLAN data - Registration required -
