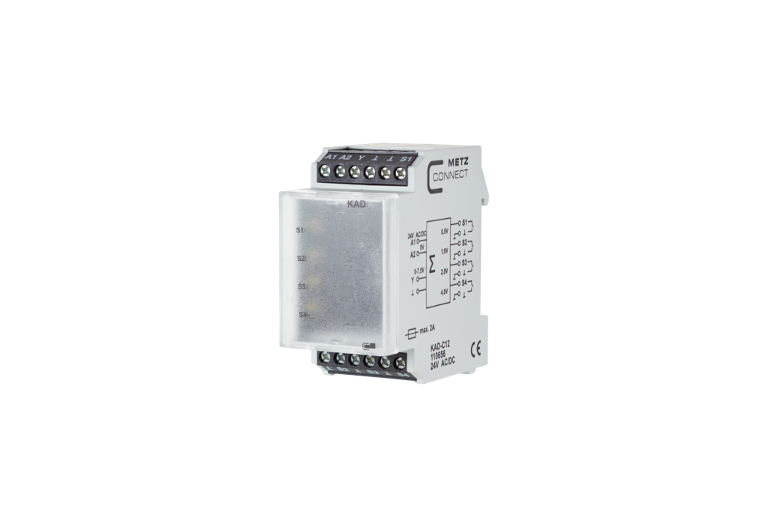

KAD-C12
Description

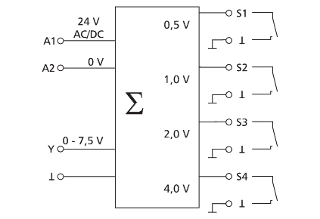

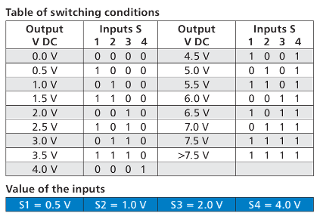

The digital/analog converter is designed to convert contacts into an analog signal. The inputs are scanned in steps of 0.5 V. They can be connected to and scanned at a compact control with an analog input (0-10 V). The bridged inputs are signalized by means of LEDs. Example: S1 and S4 bridged corresponds to an output voltage of 4.5 V.
- Switching states are indicated by means of LEDs

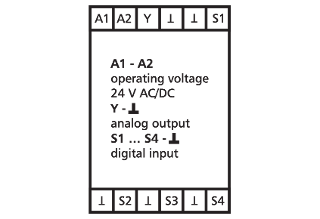

- Connection with screw-type terminals
Technical Data
General Data
24 V AC/DC
60 mA
50 mA
0.5 V steps
0 V to 7.5 V DC
Yellow LED
35 x 69.3 x 60 mm
30 g
-10 °C to +50 °C
-25 °C to +70 °C
IP40 / IP20
Check US distributor inventory
Part number
110656
4250184122869
Downloads
- 3D-Data - Registration required -
- Data sheet
- ePLAN data - Registration required -
