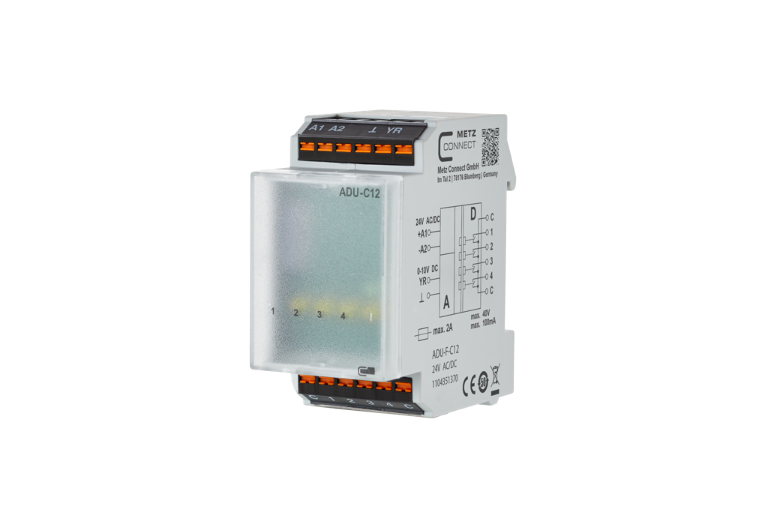

ADU-F-C12
Description

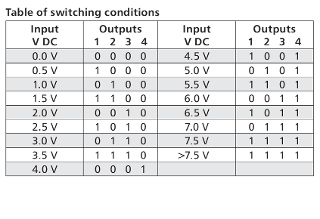

The analog/digital converter ADU-C12 processes input voltages from 0 to 7.5 V DC in 0.5 V steps. The digital outputs switch according to the applied input voltage. The outputs are updated every 1.5 seconds, and the switching state is signalized by means of an LED.
- Connection with spring clamp terminal blocks (push-in)
- Switching states are indicated by means of LEDs
Technical Data
General Data
24 V AC/DC
50.2 mA
42 mA
0 to 10 V
0.5 V steps
up to 40 V AC/DC
max. 100 mA / channel
Green and yellow LED
35 x 69.3 x 60 mm
30 g
-10 °C to 50 °C
-25 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Part number
1104351370
4251394629384
