LF-TP LON
Description

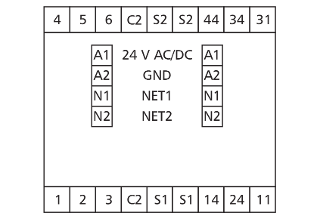

The LON three-point module with 6 digital inputs, 2 two-level relay outputs and 2 digital outputs was developed for decentralized switching tasks. It is suitable for switching, for example, multi-level pumps, fans, burners or similar. In this case it is necessary to protect the relay contacts by appropriate load-dependent measures. The inputs and outputs are scanned and activated by SNVT network variables. The input terminals 1 to 6 are wired with the C2 terminals on two poles to potential-free switches or contacts. The module has a manual control for the outputs, which is activated only in configured mode. Suitable for decentralized mounting in serial sub-distributor.
- Connection with screw type terminal blocks
Technical Data
General Data
TP/FT-10, free topology
FT5000
78 KBit/s
24 V AC/DC +/- 10 % (SELV)
220 mA (AC) / 90 mA (DC)
100 %
550 ms
6 x digital contacts
4.5 V DC
2 x two-level
250 V AC
6 A / output
2 NO (DPST-NO) (photoMOS)
40 V AC/DC
100 mA
Green and yellow LED
50 x 69.3 x 60 mm
126 g
-5 °C to 55 °C
-20 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Accessories
Part number
11085913
4250184135814
Downloads
- Data sheet
- ePLAN data - Registration required -
- Brochure (LON I/O components)
- Brochure (Intelligent system components with integrated application software)
- 3D-Data - Registration required -
- Software (Template_LF-TP)
- Software (LON Resource Files 1.32)
- Software (METZ Connect PlugIn LF-ALL 2.0.0)
- Mounting note (11085913, 1108591370)
- Mounting note (Safety Instructions multilingual )
- Software manual (LON Software-Handbuch)
