LF-F-AM2/4 LON
Description

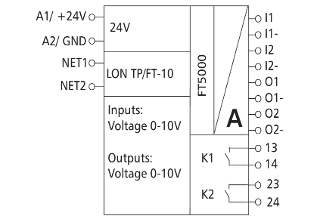

The LON I/O module with 2 analog inputs, 2 analog outputs and 2 digital outputs. It is suitable for controlling, for example, motorized vent valves and switching on alarm at the set threshold value. The inputs and outputs are scanned and activated by SNVT network variables. The analog inputs can be scanned simultaneously. The analog outputs can be activated proportionally, or previously defined voltage values can be adjusted. Both digital outputs can be activated individually or as a function of an adjustable threshold value. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.

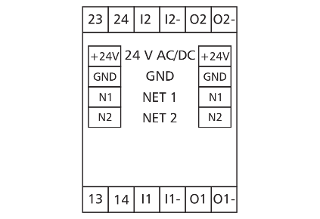

- Connection with spring clamp terminal blocks (push-in)
Technical Data
General Data
TP/FT-10, free topology
FT5000
78 KBit/s
24 V AC/DC +/- 10 % (SELV)
95 mA (AC) / 35 mA (DC)
100 %
2 x analog
0 V to 10 V DC
10 mV (0 to 100 %)
2 x analog
0 V to 10 V DC
5 mA at 10 V DC
10 mV (0 to 100 %)
2 x digital
2 NO (DPST-NO) photoMOS relay
max. 40 V AC/DC
max. 100 mA
Green and yellow LED
35 x 69.3 x 60 mm
82 g
-5 °C to 55 °C
-20 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Accessories
Part number
1108571370
4251394610009
