BMT-AO4 BACnet MS/TP

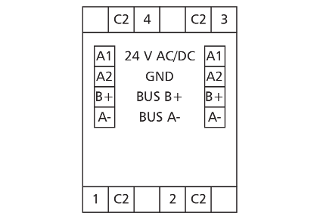

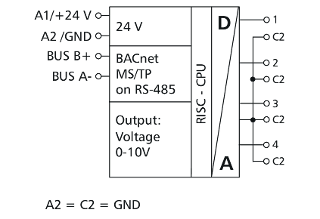

The BACnet MS/TP module with 4 analog outputs was developed for decentralized switching tasks. It is suitable as encoder for control variables, for example for electrical vent and mixing valves, valve positions, etc. The outputs can be output by means of standard objects via a BACnet client. The module is addressed and the baud rate is set by means of two address switches on the front. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.
- Connection with screw type terminal blocks
BACnet is a registered trademark of ASHRAE. ASHRAE does not endorse, approve or test products for compliance with ASHRAE standards. Compliance of listed products to the requirements of ASHRAE Standard 135 is the responsibility of BACnet International (BI). BTL is a registered trademark of BI.
- Data sheet
- ePLAN data - Registration required -
- Brochure (BACnet MS/TP components)
- Brochure (BACnet Router)
- 3D-Data - Registration required -
- Product information
- Software (BACnet EDE-Files)
- Mounting note (1108851302, 110885130270, 1108871302, 110887130270)
- Mounting note (Safety Instructions multilingual )
- Software manual (BACnet Software-Handbuch PICS (BMT))
