Which sensors can be connected to the BMT-AI8?
Sensors in range from 40 Ohm to 4 MOhm and 0 to 10 V, already stored types (e.g. PT1000) are found in the software manual, a user-defined temperature curve can also be created.
BMT-F-AI8 BACnet MS/TP
Description
The BACnet MS/TP module with 8 individually configurable resistance or voltage inputs was developed for decentralized switching tasks. It is suitable for detecting resistances and voltages of, for example, passive and active temperature sensors, electrical vent and mixing valves, valve positions, etc. The inputs can be configured universally by means of standard objects via a BACnet client. The module is addressed and the baud rate is set by means of two address switches on the front. Suitable for decentralized mounting on DIN TH35 rail according to IEC 60715 in electrical distribution cabinets.
- Connection with spring clamp terminal blocks (push-in)
BACnet is a registered trademark of ASHRAE. ASHRAE does not endorse, approve or test products for compliance with ASHRAE standards. Compliance of listed products to the requirements of ASHRAE Standard 135 is the responsibility of BACnet International (BI). BTL is a registered trademark of BI.

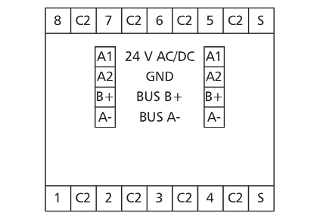

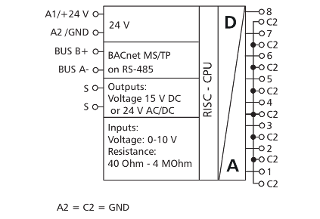

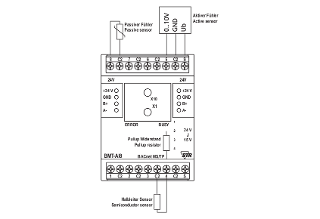

Technical Data
General Data
BACnet MS/TP
00 to F9
RS485 (two-wire bus)
9600 to 115200 bit/s
24 V AC/DC +/- 10 % (SELV)
65 mA (AC) / 25 mA (DC)
100 %
8 x individually configurable
40 Ohm to 4 MOhm
0 V to 10 V DC
10 mV (0 to 100 %)
10 mV
0.1 %
1 %
Green, red and yellow LED
50 x 69.3 x 60 mm
104 g
-5 °C to 55 °C
-20 °C to 70 °C
IP40 / IP20
Check US distributor inventory
Accessories
Accessory of
Part number
1108821370
4251394620633
Downloads
FAQ's
Can passive three or four wire sensors be connected to the BMT-AI8?
No, only possible with the EWIO2.
